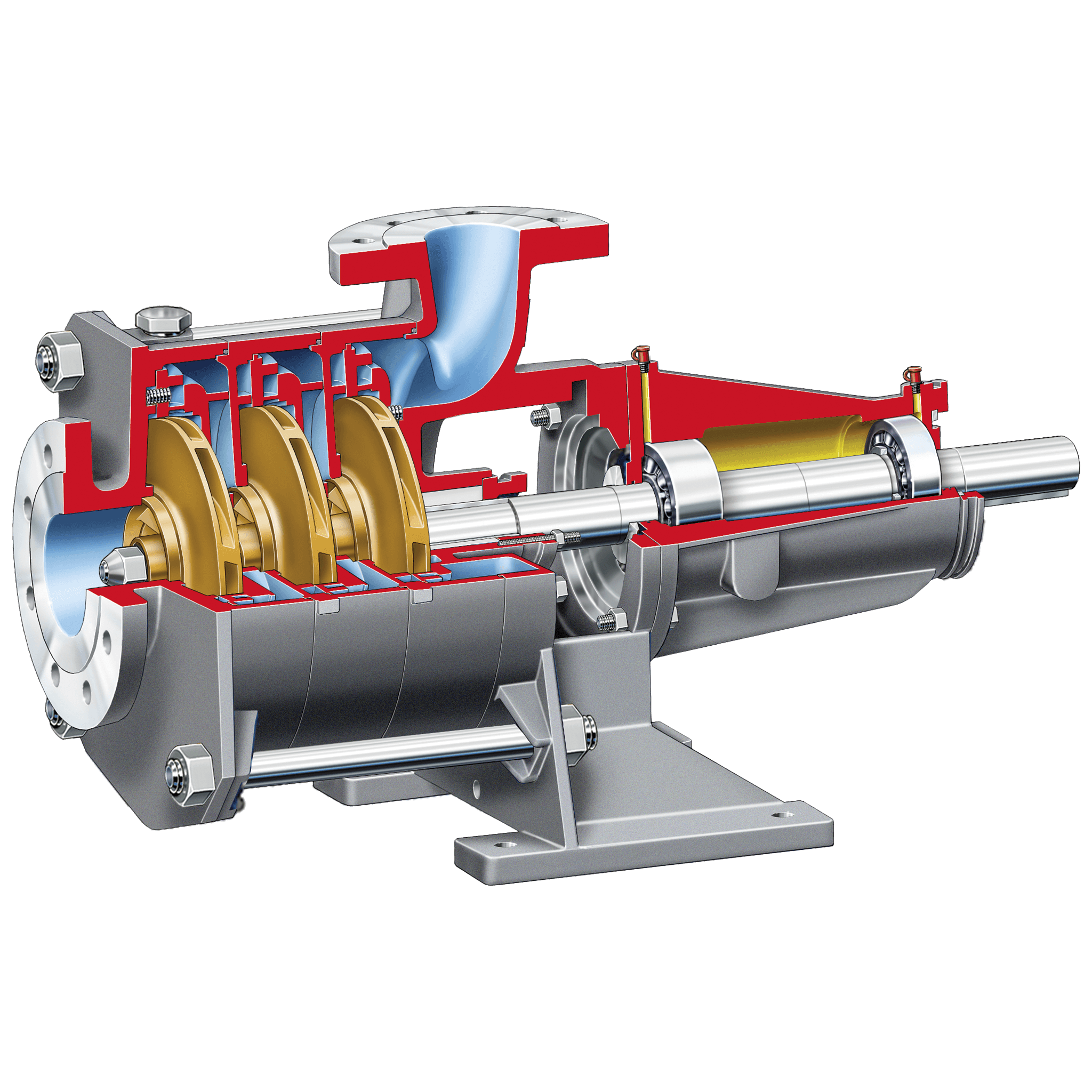

Flowserve FP Industrial Process Pump

Name: Flowserve FP Industrial Process Pump
Brand: Flowserve
SKU: flowserve-532

رقم القطعة: flowserve-532

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The FP is a well proven family of multistage, overhung ring section pumps with excellent hydraulic efficiency and high suction lift capability. They are ideal for high-pressure water applications. Features and benefits: - Improved performance via multistage, overhung construction that enables better suction performance while simplifying pipe work layout - Ease of maintenance with a back pullout design that facilitates inspection - Longer service life due to an oversized shaft conservatively designed to minimize deflection and reduce wear - Application flexibility provided by modular platform with numerous available horizontal and vertical configurations that permits accurate sizing for operating conditions and site requirements

المواصفات

Brand line	Flowserve
Status	Aftermarket support only - no longer available for purchase
Size Range	50, 65, 80, 100, 125
Flows to	500 m3/h (2200 gpm)
Temperatures to	105°C (220°F)
Pressures to	25 bar (362 psi)
Heads to	250 m (820 ft)
