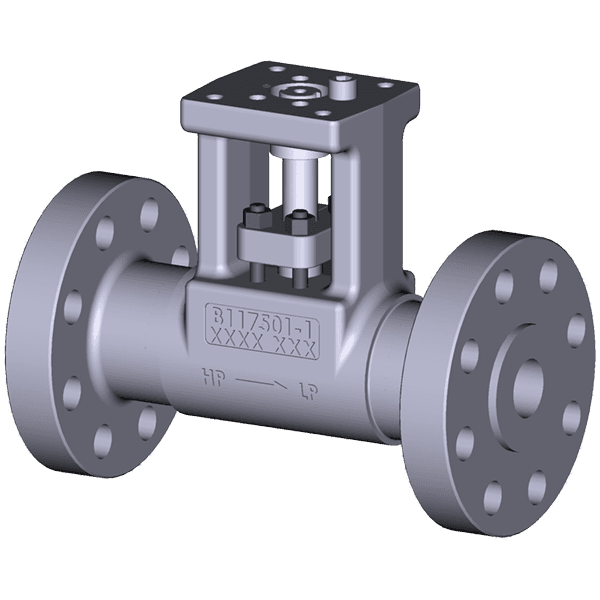

MOGAS® RSVP-UK Valve

Name: MOGAS® RSVP-UK Valve
Brand: Flowserve
SKU: flowserve-4606

رقم القطعة: flowserve-4606

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

ASME 600 / 900/ 1500 Limited Class: Small in Size – Large in Performance In power generation systems there are several severe service applications that require a small bore and/or light weight drain, vent or isolation valve. Many of the standard commodity choices such as globes cannot handle absolute tight shutoff for these small bore, high pressure, and high temperature installations, and normal metal-seated ball valves weigh too much. MOGAS offers a real workhorse for the small, but critical applications. Features and benefits: - Standard four-year warranty; one-year warranty on high-cycle applications (1 cycle per day, 365 days per year) - Ball and Seats - Mate lapped for 100% contact - Ensures absolute shutoff - Corrosion resistant - Seats are protected from flow in open / closed position - Stem & Packing Arrangement - Live loading - Quarter-turn non-rising stem does not deteriorate packing - Extensive stuffing box - Dual anti-extrusion rings keep packing in place - Mechanical Precision Stop - Prevents turning ball 180° - Eliminates misalignment - Rigid Mounting Bracket - Designed to support actuator in any position - Seat Spring - Assisted by line pressure, provides a constant mechanical force on ball against seat to maintain seal
