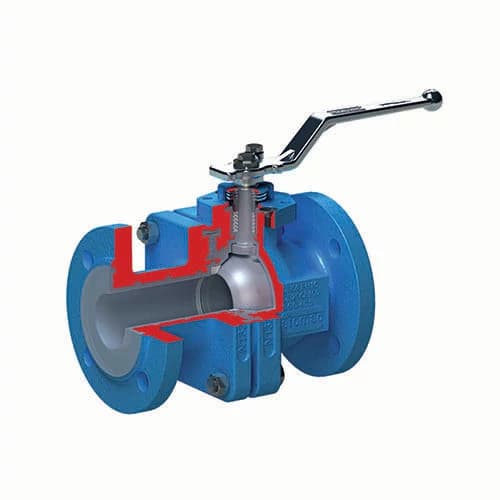

Lined Ball Valves - AKH2

Flowserve

Lined Ball Valves - AKH2

رقم القطعة: flowserve-629

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Designed to reduce energy and pumping costs, the Atomac AKH2 two-piece, full-port design minimizes pressure losses and increases flow capacity. Features and benefits: - Minimized downtime and maintenance from long-life seats and large stem sealing area, plus substantial middle flanges and molded liner - Reduced energy costs enabled by low frictional coefficients and operating torques - Reduced fugitive emissions made possible by reduction of stem side loads, eliminating potential valve gland leaks - Increased plant and personnel safety assured by anti-blowout stem and anti-static design

المواصفات

Brand lineAtomac
StandardsDIN EN 558; DIN EN 1092-2; ASME B16.5
Size Range1/2" - 14"; DN 15 - DN 350 (on request)
Pressure Class RangePN 10; PN 16; Class 150; Class 300
Seating MaterialPTFE; PTFE-glass-reinforced; PTFE-conductive
