TX3 Molten Salt Triple-offset Butterfly Valve

Flowserve

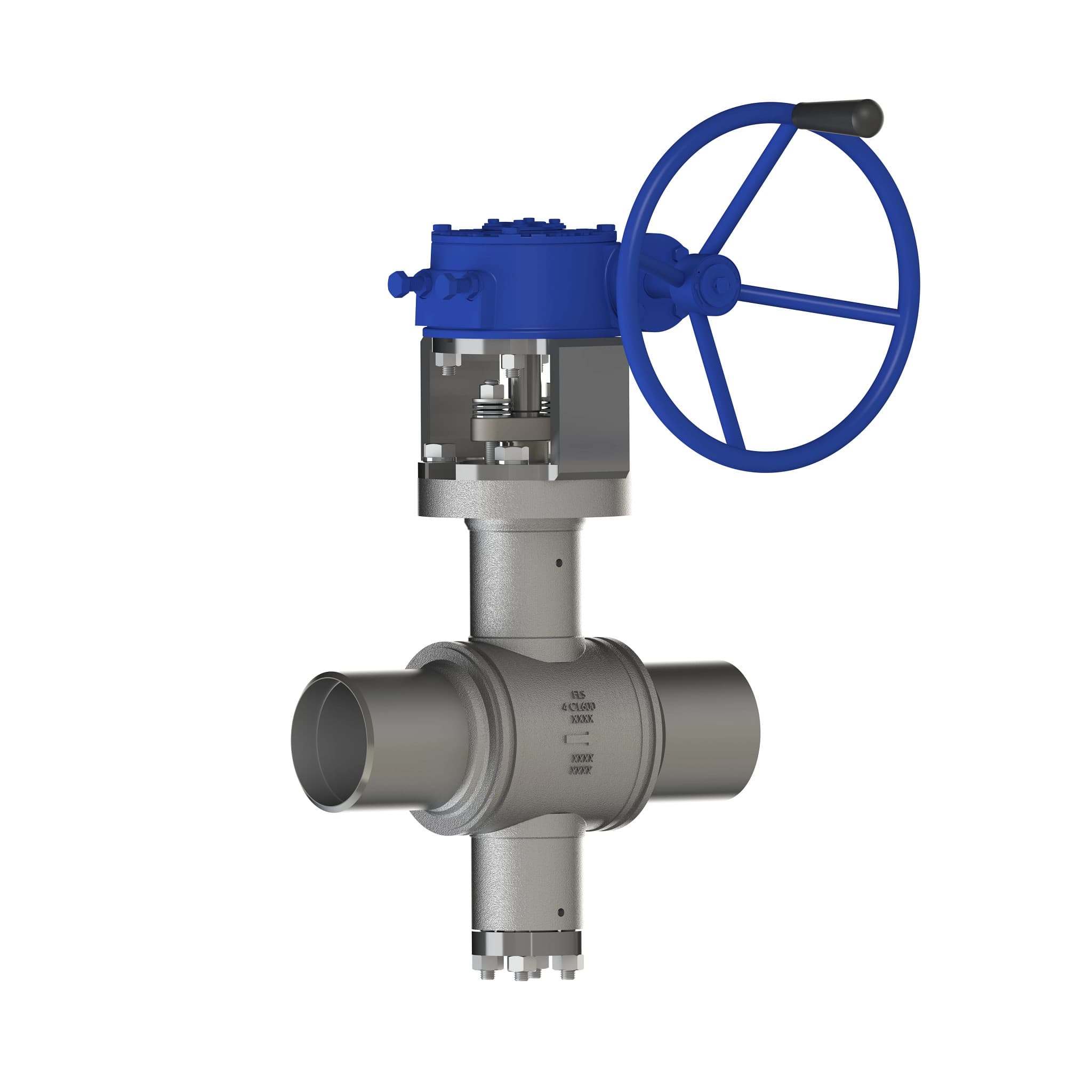

TX3 Molten Salt Triple-offset Butterfly Valve

Name: TX3 Molten Salt Triple-offset Butterfly Valve
Brand: Flowserve
SKU: flowserve-3578

رقم القطعة: flowserve-3578

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

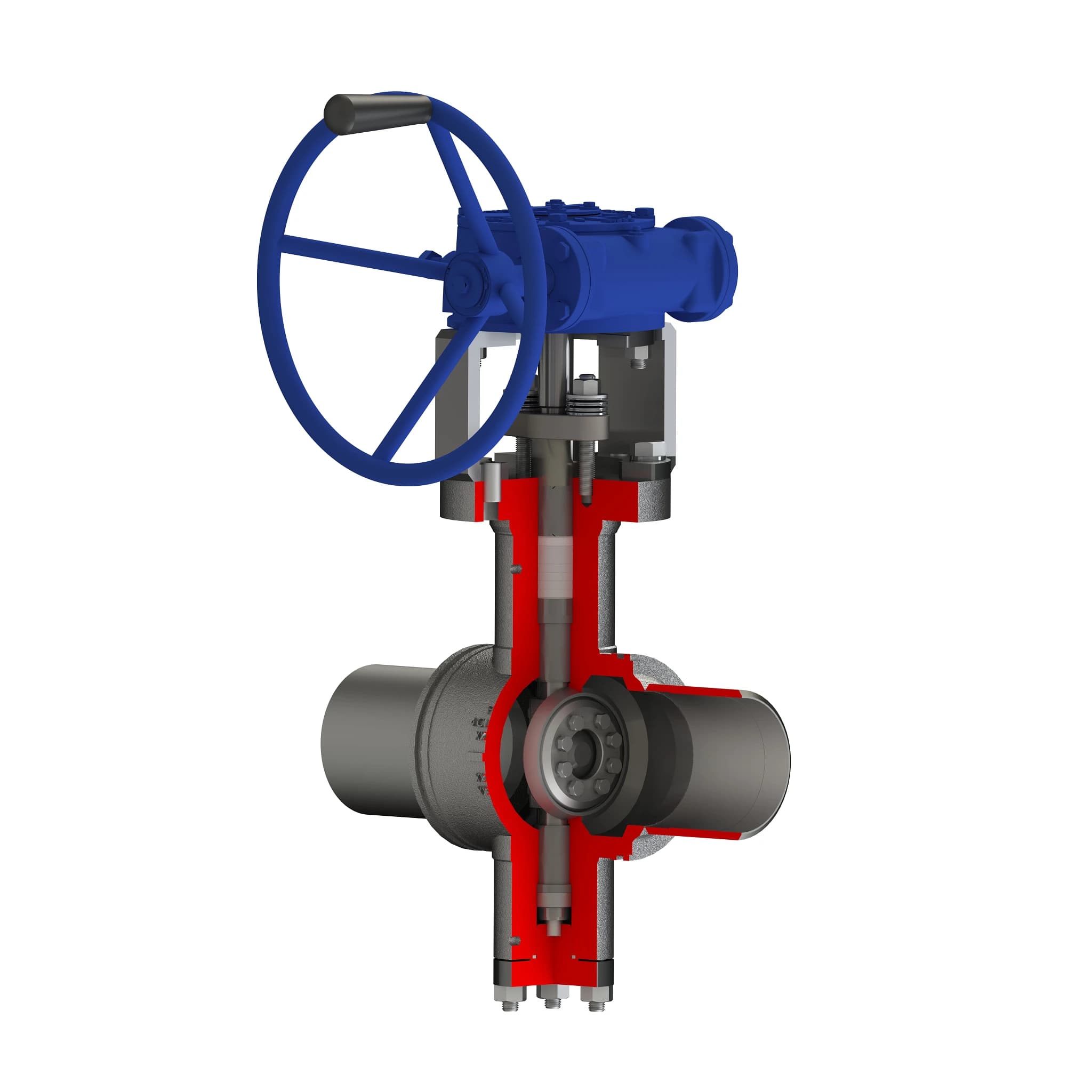

The Valtek® TX3 Molten Salt triple-offset butterfly valve provides concentrated solar power (CSP) plant operators with reliable performance, tight shut-off and minimized maintenance in molten salt applications. It can withstand temperatures ranging from 260°C (500°F) to 600°C (1,112°F) in thermal energy storage for industrial processes or power generation. Leakage is eliminated by the design and construction, which includes standard live-loaded Thermiculite or hybrid packing. Features and benefits: - Superior leakage resistance results from the shutoff design and construction that reliably complies with FCI 70-2 Class V for control valve applications and API 598 for On-Off applications. - Constant temperatures within the valve stem and packing region are ensured with a comprehensive solution for packing/heat tracing including integrated heating, controls, and sensors - Reliable packing performance owing to materials and configuration engineered to match the customer’s specific packing load and performance requirements - Minimized maintenance can be achieved with in-line maintenance (consult Flowserve engineering special

المواصفات

Brand line	Valtek
Size Range	NPS 3 to 24 and >24 in. (ETO)
Operating Parameters	Cold salt up to 400°C (752°F) A or SA-216-WCB carbon steel; Hot salt above 400°C (752°F) A or SA-351-CF8C stainless steel
Temperatures	260°C to 600°C (500°F to 1,112°F)
Pressure Range	ASME class 300/600, 150/900/1500 (engineered to order [ETO])
Body style	Buttweld flanges standard; others engineered to order (ETO); Short pattern standard; long pattern available; Valtek TX3 Triple-offset Butterfly Control Valve; Durco TX3 Triple-offset Butterfly Valve
Applicable Standards	ASME B16.34; ASME B16.5; ASME B16.10; API 609; FCI 70-2; API 598; EN-122661 Rate A
Certificates and Approvals	Available API 607 and ISO 10497 for fire safe; ISO 15848-1 for fugitive emissions
Heating	Integrated
Maintenance	In-line
High T	1112 F
