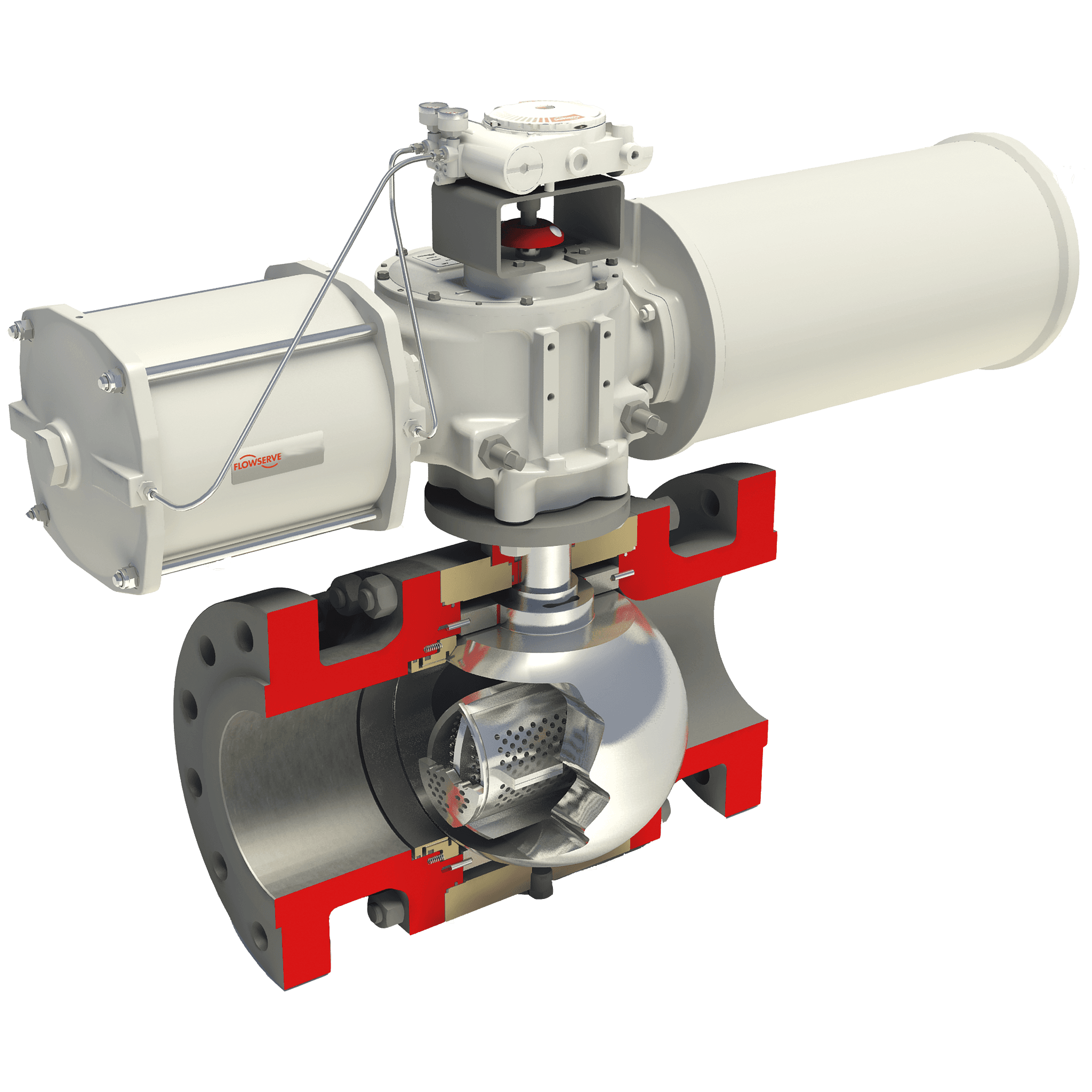

Valbart® TMCBV Full Port Ball Valve

Name: Valbart® TMCBV Full Port Ball Valve
Brand: Flowserve
SKU: flowserve-646

رقم القطعة: flowserve-646

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The Valbart TMCBV is a trunnion-mounted ball valve with inherent high rangeability to provide exceptional control for both minimum operating conditions as well as high flow rate requirements. Severe service trims designed for liquid and gas applications reduce noise and cavitation, even for the most challenging conditions. Combined with a tungsten carbide coating on the ball and seat, they provide reliable continuous control. Features and benefits: - Wide range of trim designs based on industry-proven technologies such as MegaStream, CavControl and Z-trim - Metal to metal, tungsten carbide-coated seats provide ANSI FCI 70-2 class V shutoff - High rangeability in excess of 300:1

المواصفات

Brand line	Valbart
Standards	ASME (ANSI); ISO
Status	Aftermarket support only - no longer available for purchase
Size Range	4 to 56
Design Range	API 3000, 5000, 10000
Pressure Class Range	ASME class 150, 300, 600, 900, 1500
Seating Material	Tungsten carbide
Cryogenic	-196°C
Rangeability	300:1
ISO 9001	2000
Noise reduction	30 dBA
