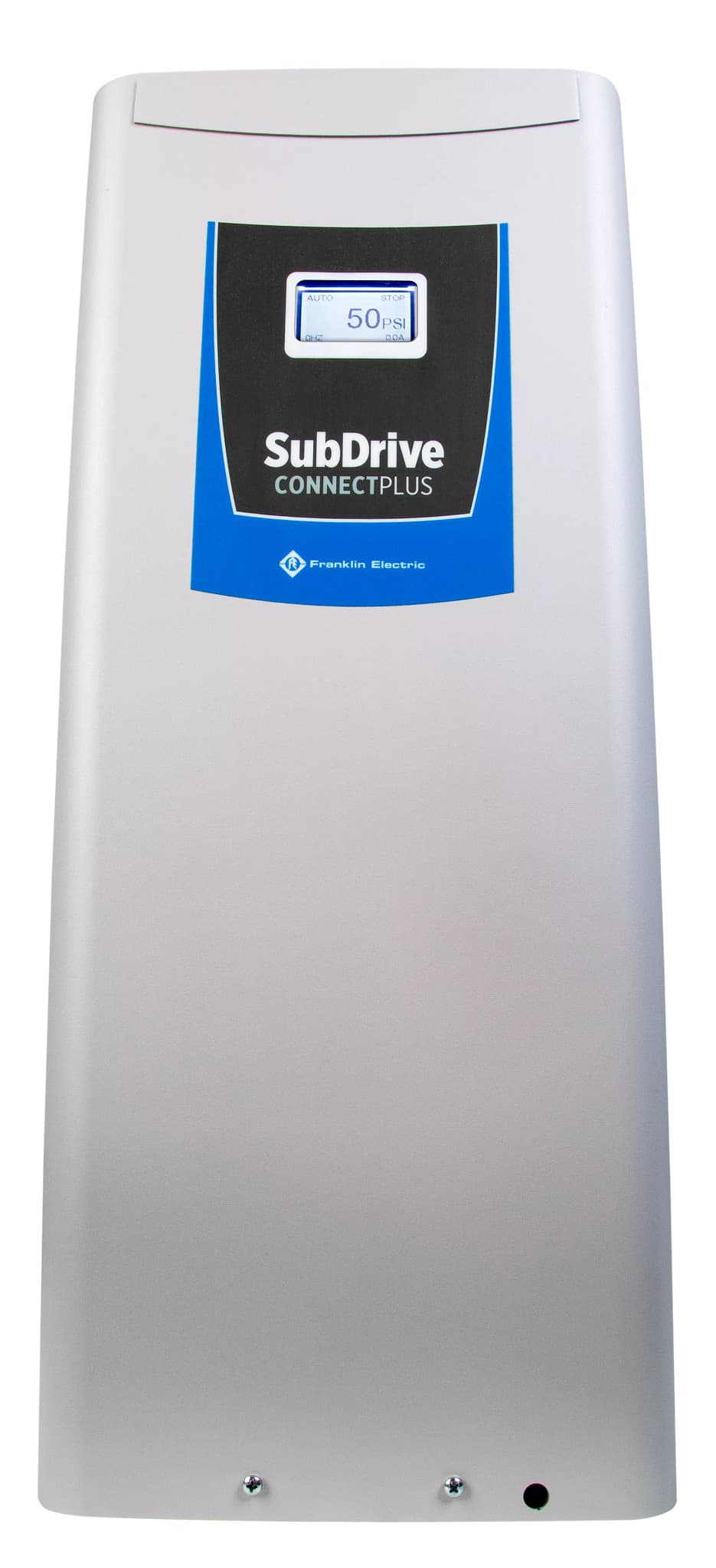

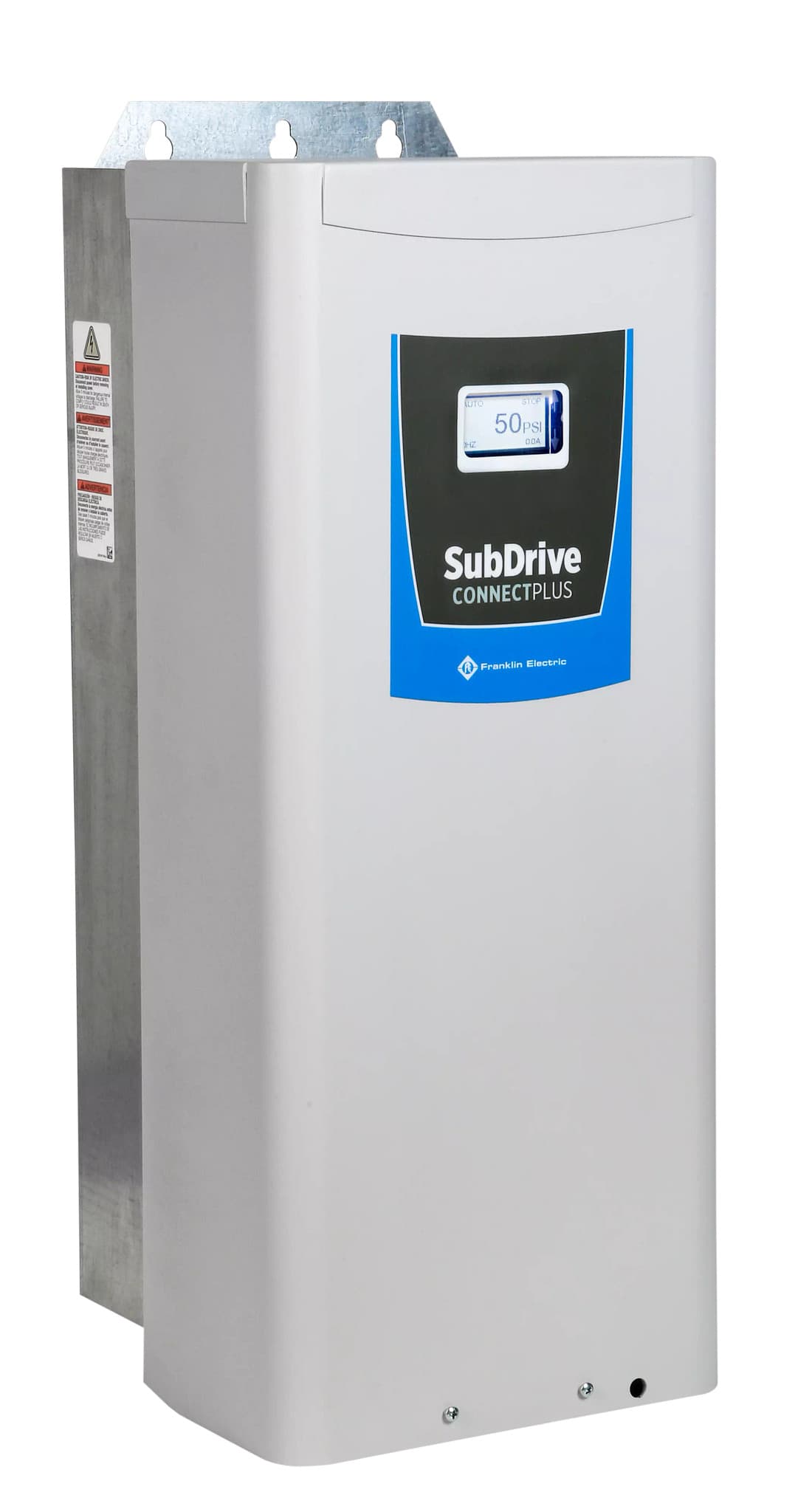

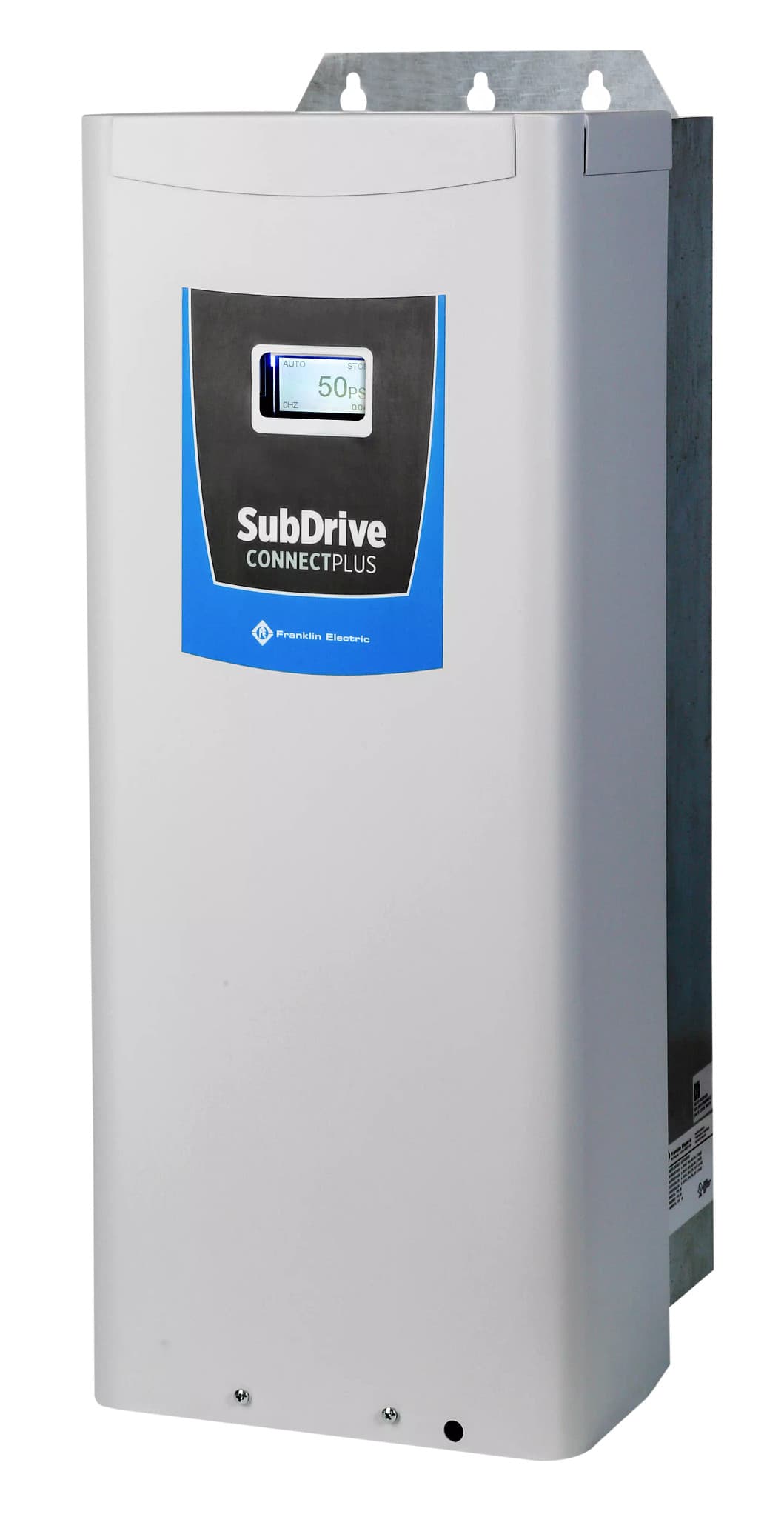

SubDrive Connect Plus Variable Frequency Drive SDCP-SUB1043

Franklin Electric

SubDrive Connect Plus Variable Frequency Drive SDCP-SUB1043

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Franklin Electric’s SubDrive Connect Plus Variable Frequency Drive (VFD) is engineered to provide a simple, powerful constant pressure solution for water pumping systems in an array of submersible and aboveground applications that utilize three-phase motors up to 30 horsepower (hp). Features and benefits: - Designed for Water Systems, Optimized for Constant Pressure: Designed specifically for water pumping applications, SubDrive Connect Plus delivers unique features: Provides consistent water pressure across a system, eliminating fluctuations - Dual set point and adjustable drawdown for exact pressure control - Soft start maximizes system life - Run/stop and hand/auto control - Modbus protocol enables remote communication and control - Additional built-in protections include: Pipe fill mode to reduce water hammer - Underload (Dry-run) with customizable sensitivity and off time - Overload / Locked pump - Broken pipe detection - Output short circuit and open circuit - Undervoltage - Electrical surge - Overheated controller - Moisture sensor input - Run and fault relays - Simple Installation, Made Easier Through Connectivity: The easy-to-install platform uses an array of setup, local monitoring, and assisted troubleshooting solutions to help you save time during installation and servicing: LCD display provides immediate feedback and read-outs of pressure and system status - No advanced programming is required with single-level menu and DIP switches for basic drive configuration - Integrated connectivity and compatibility with our FE Connect mobile app for real-time data and monitoring; access to advanced features such as motor frequency range, lead/lag/alternation, broken pipe detection, and fault log retrieval - Get real-time support powered by FE Connect’s One to-One feature: Temporarily give live access to an off-site contributor, whether Franklin Electric’s support team or your internal experts. Fast, convenient and fully secure. - Versatility for Multiple Applications: Ideal for new construction or retrofitting and optimizing submersible and surface systems up to 30 horsepower, including projects powered by MagForce High Efficiency Motors - Built-in lead/lag and alternation capability for up to 8 drives - Phase conversion allows for single-phase or 3-phase input in 230 V models - Comes standard with various input/output (I/O) connections or terminals for streamlined compatibility with adjacent systems - Smaller Footprint, Smarter Use of Space: Compact design, that is ideal for wall-mounting, provides a cost-effective solution when compared to high-horsepower systems that use starters or VFD panel packages - Can be used indoors or outside since the self-contained NEMA 3R-rated drive provides a degree of protection against falling rain or sleet

المواصفات

Frequency60 Hz
Hz60 Hz
Input PhaseThree-Phase
Output PhaseThree-Phase
Input Power Factor0.75
Input Power Max14800 W
Minimum Output Frequency15Hz (CEN), 30Hz (SUB)
Maximum Output Frequency60Hz (CEN), 60Hz (SUB)
Maximum Output Current18 A
Output Voltage - 3 Phase (VAC)460 VAC
Pressure Sensor IncludedNo
Pressure Transducer IncludedYES
Enclosure RatingType 3R
Minimum Operating Temperature-13 °F / -25 °C
Maximum Operating Temperature104 °F / 40 °C
Storage Temperature-13° to 144 °F (-25° to 65 °C)
Shelf Life1.5 year
Product Weight48.06 lb / 21.8 kg
Product Weight with Pack50 lb / 22.68 kg
Carton Length30 " / 76.2 cm
Carton Width14 " / 35.56 cm
Carton Height13 " / 33.02 cm
Drinking Water Agency ApprovalsANSI/NSF Standard 61
Electrical Agency ApprovalscUL Listed / UL
Warranty Standard Time12 Month Install / 24 Month Manufacturing
Item #SDCP-SUB1043
ModelSD CONNECT PLUS 460V 10HP 18A WITH OUTPUT FILTER
SeriesSubmersible and Centrifugal - 460V Models
Product familySubDrive Connect Plus Variable Frequency Drive
Minimum Output Amps (3 Phase)1A @ 460 VAC
Maximum Output Amps (3 Phase)18A
Product Length27.24 " / 69.2 cm
Product Width10.67 " / 27.1 cm
Product Height9.44 " / 23.99 cm
Communication ProtocolsBluetooth
Maximum Storage Temperature149 °F / 65 °C
Minimum Storage Temperature-13 °F / -25 °C
Minimum Carrier Frequency2.5 kHz
Maximum Carrier Frequency2.5 kHz
Output Current18 A
Output Voltage460 VAC
kAIC Rating5 kA
Included Filtering (Input or Output)Output Filter Type dv/dt
Minimum Output Frequency Hz30 Hz
Maximum Output Frequency Hz60 Hz
Input Current27 A
Input voltage three phase (VAC)460 VAC
