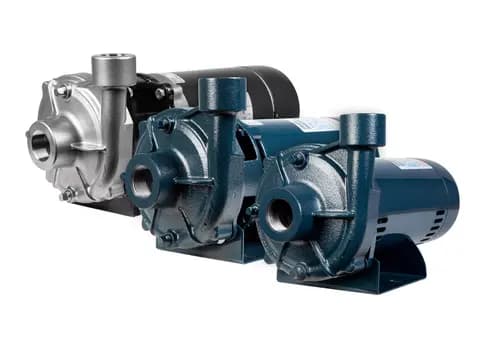

DR Series Close-Coupled Centrifugal Pump DR2S15-CS-T

Franklin Electric

DR Series Close-Coupled Centrifugal Pump DR2S15-CS-T

رقم القطعة: franklin-electric-97133215

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The robust DR1-DR2 series close-coupled centrifugal pump is available in a variety of pump construction materials to enable handling a wide array of applications. Square flange, 56J threaded and 56C keyed shaft motor driven units are available, as well as pump end kits for those customers who choose to provide their own 56J or 56C motors to pair with our close-coupled centrifugal pump. Features and benefits: - Back pull-out design provides access to internal parts without disturbing the plumbing - Robust cast iron volute standard; stainless steel alternate available for DR1 Series - Volute discharge can be rotated in 90° increments with top vertical standard from the factory - Multiple 1/4” NPT drain/pressure ports enable winterizing no matter the volute orientation - Enclosed impeller design for increased efficiencies; thermoplastic and stainless steel options - Multiple mechanical seal construction materials to accommodate handling various fluids - Every pump unit factory wet tested to insure customer satisfaction - Suitable for horizontal or vertical (motor end up) installation - NEMA standard motor options include: - Pump end kits available for 56C & 56J motor construction - Rotation: right hand; clockwise when viewed from motor end - Water circulation - Booster service - Liquid transfer - Spraying systems - Jockey pump service - General purpose pumping

المواصفات

HP 60Hz1.5 hp
Frequency60 Hz
PhasesThree-Phase
Volts230 VAC / 460 VAC
Shut Off105 ft
Shut Off 60 Hz106 ft
Stages1
Maximum Fluid Temperature120 °F
Pump Body MaterialCast Iron
ImpellerClosed
Impeller MaterialStainless Steel
SealMechanical Seal
DischargeThreaded - FNPT
Discharge Diameter1.25 "
Product Weight47 lb
Warranty Standard Time12 Month Install / 24 Month Manufacturing
ApplicationsIdeal for applications requiring water circulation, booster service, liquid transfer, spraying systems, jockey pump service, and general-purpose pumping.
Item #97133215
ModelDR2S15-CS-T
SeriesDR2S 1-1/2 x 1-1/4 3600 RPM
Product familyDR Series Close-Coupled Centrifugal Pump
Pump Length15.45 "
Maximum Flow Rate - 60 Hz90 gpm
Pump rpm - 60 Hz3600
Pump Height8.94 "
Pump Width8.76 "
SuctionThreaded - FNPT
Motor EnclosureODP
Suction Diameter1.5 "
