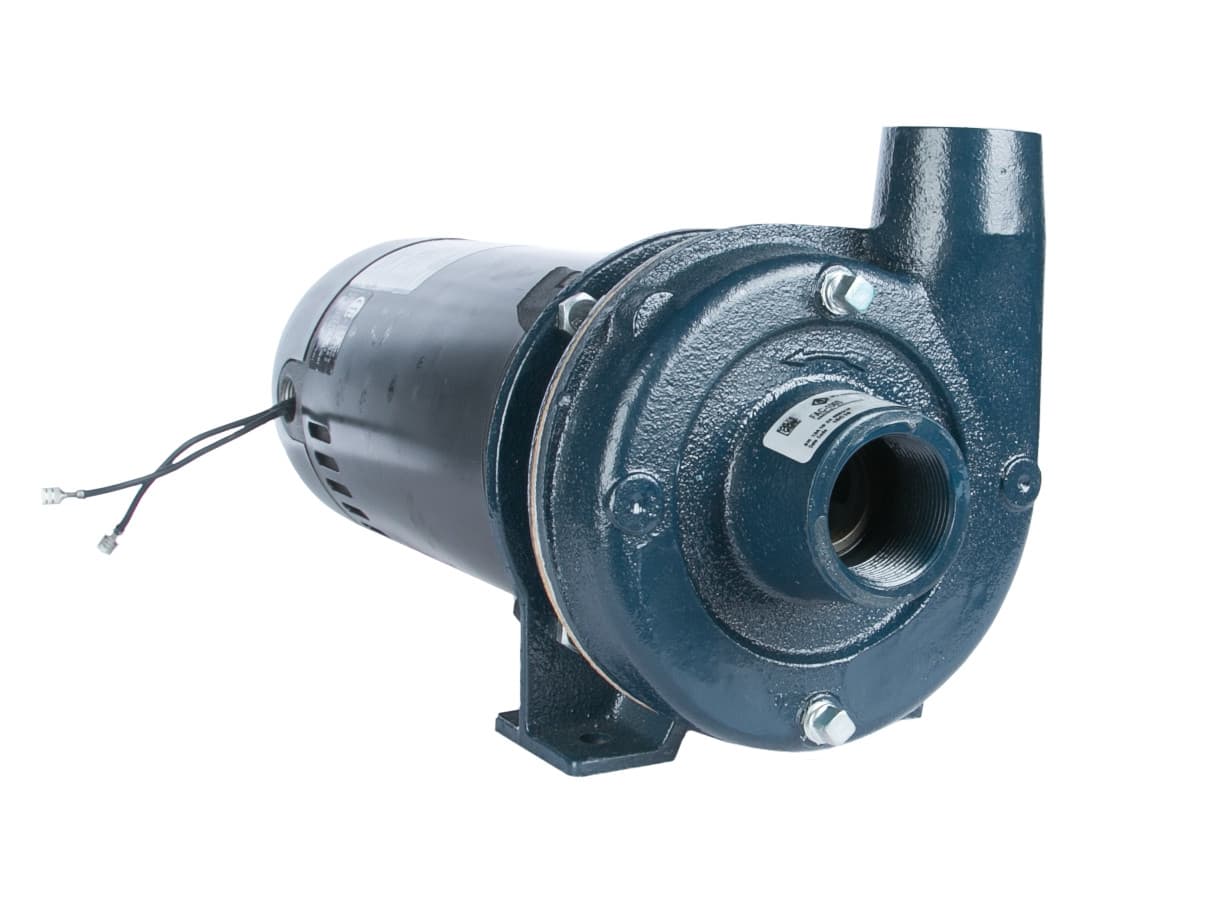

FAC Series Close-Coupled Centrifugal Pump FAC-300S

Franklin Electric

FAC Series Close-Coupled Centrifugal Pump FAC-300S

رقم القطعة: franklin-electric-90210030

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The versatile, general purpose FAC close-coupled centrifugal pump is constructed from durable cast iron and includes a carbon/ceramic mechanical seal with FKM elastomer. With a maximum temperature of 212°F and vertical or horizontal mounting orientations, this close-coupled centrifugal pump is ideal for numerous applications. Features and benefits: - Volute: Cast iron, can be rotated for ease of installation. Tapped openings provided for draining. - Impeller: Enclosed design for high efficiency. Stainless steel construction. - Mechanical Seal: Standard carbon/ceramic faces, FKM elastomers and 300 series stainless components. - Motor: Standard 3600 rpm JM, open-drip-proof. Designed for continuous operation. - Mounting: Can be mounted in vertical or horizontal position. - Water Circulation - Booster Service - Liquid Transfer - Spraying Systems - Jockey Pump - General Service

المواصفات

HP 60Hz3 hp
Frequency60 Hz
PhasesSingle-Phase
Volts115 VAC / 230 VAC
Poles2
Stages1
Maximum Fluid Temperature212 °F
Pump Body MaterialCast Iron
ImpellerClosed
Impeller MaterialStainless Steel
SealMechanical Seal
DischargeThreaded - FNPT
Discharge Diameter2 "
Product Weight83 lb
Warranty Standard Time12 Month Install / 24 Month Manufacturing
Item #90210030
ModelFAC-300S
SeriesFAC Series Close-Coupled Centrifugal Pump
Product familyFAC Series Close-Coupled Centrifugal Pump
Pump Length19.48 "
Amps at 230 Volts14 A
Pump rpm - 60 Hz3600
Pump Height10.81 "
Pump Width13.5 "
Impeller Diameter5.75 "
SuctionThreaded - FNPT
Motor EnclosureODP
Suction Diameter2 "
