Convertible Pro (RM2) Series Cast Iron Convertible Jet Pump FP05CI-C

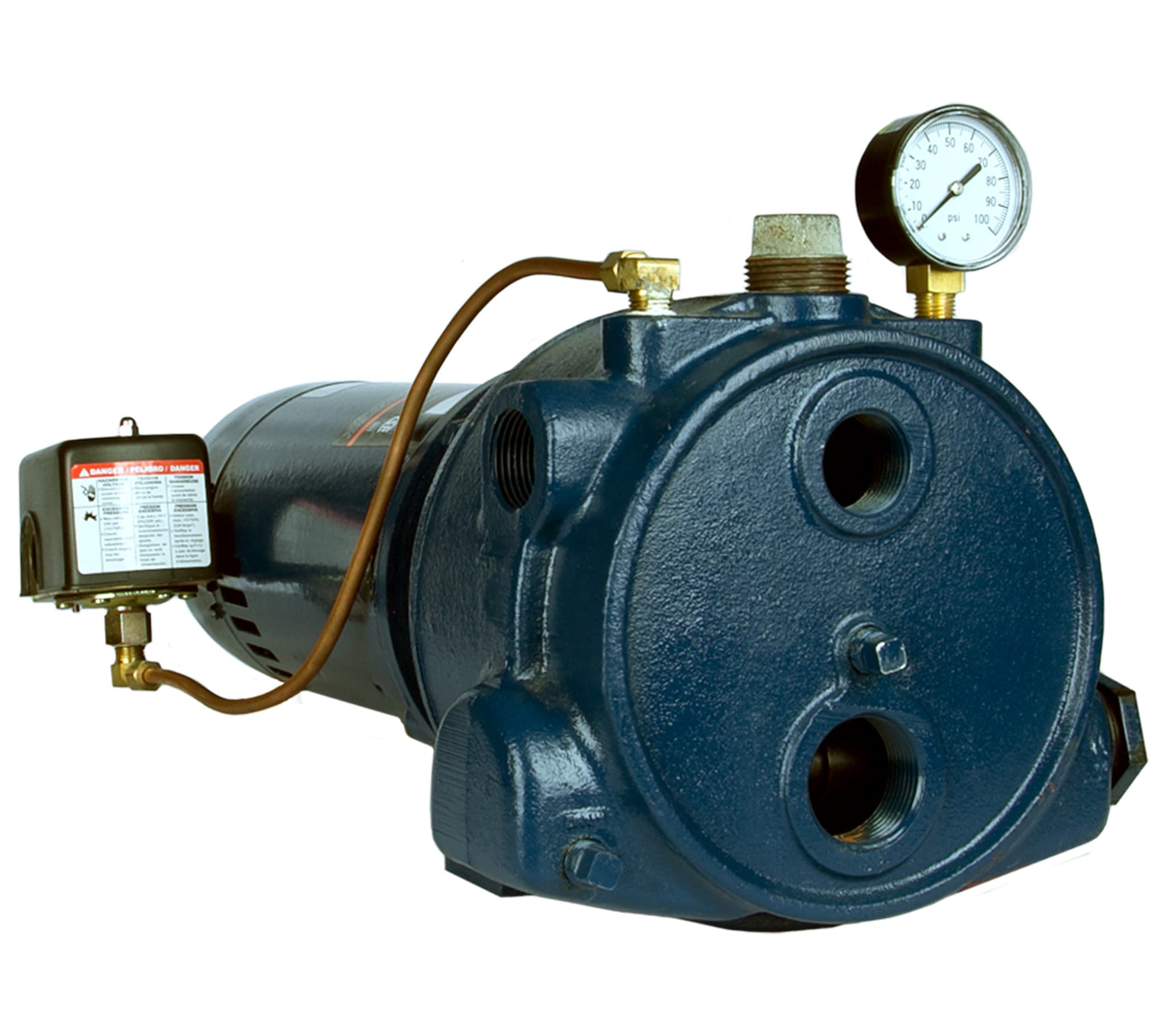

Name: Convertible Pro (RM2) Series Cast Iron Convertible Jet Pump FP05CI-C
Brand: Franklin Electric
SKU: franklin-electric-91140005

رقم القطعة: franklin-electric-91140005

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The convertible jet pump Pro (RM2) series is equipped with a stainless steel impeller for high performance and longevity. Capable of lifting from 100' and delivering up to 23 gallons per minute from either shallow well or deep well make this convertible jet pump series the perfect choice. Features and benefits: - Heavy-duty cast iron case with 1-1/4" inlet and (3) 1" outlets - Stainless steel impeller ensures optimum durability - Thermoplastic diffuser is precision molded for optimum efficiency - Each pump factor equipped with internal shallow well injector easily replaced with bypass plug for deep well operation - Shaft coupling designed for easy removal of keyed shaft motor - Carbon/ceramic faced mechanical shaft seal with nitrile elastomer ensures positive sealing at all pressures - High service factor 56C-frame motor for maximum performance - Adjustable pressure switch is factory installed and set at 30/50 psi - Maximum temperature of 140 °F/60 °C; 150 PSI maximum working pressure - NSF/ANSI/CAN 372 Certified

المواصفات

HP 60Hz	1/2 hp
Frequency	60 Hz
Phases	Single-Phase
Volts	115 VAC / 230 VAC
Maximum Fluid Temperature	140 °F
Pump Body Material	Cast Iron
Impeller	Closed
Impeller Material	Stainless Steel
Seal	Mechanical Seal
Discharge	Threaded - FNPT
Discharge Diameter	1 "
Product Weight	48 lb
Product Weight with Pack	48.5 lb
Carton Length	25.75 "
Carton Width	12.38 "
Carton Height	14.88 "
Drinking Water Agency Approvals	NSF/ANSI 372
Warranty Standard Time	12 Month Install / 24 Month Manufacturing
Applications	Ideal for supplying fresh water to homes, cabins, farms that can be configured for a variety of pressures and flow choices
Item #	91140005
Model	FP05CI-C
Series	Convertible Jet Pump
Product family	Convertible Pro (RM2) Series Cast Iron Convertible Jet Pump
Pump Length	18.65 "
Amps at 230 Volts	5.9 A
Seal Material	Carbon/Ceramic, Nitrile
Pump Height	8.76 "
Pump Width	8.13 "
Suction	Threaded - FNPT
Motor Enclosure	ODP
Suction Diameter	1.25 "
