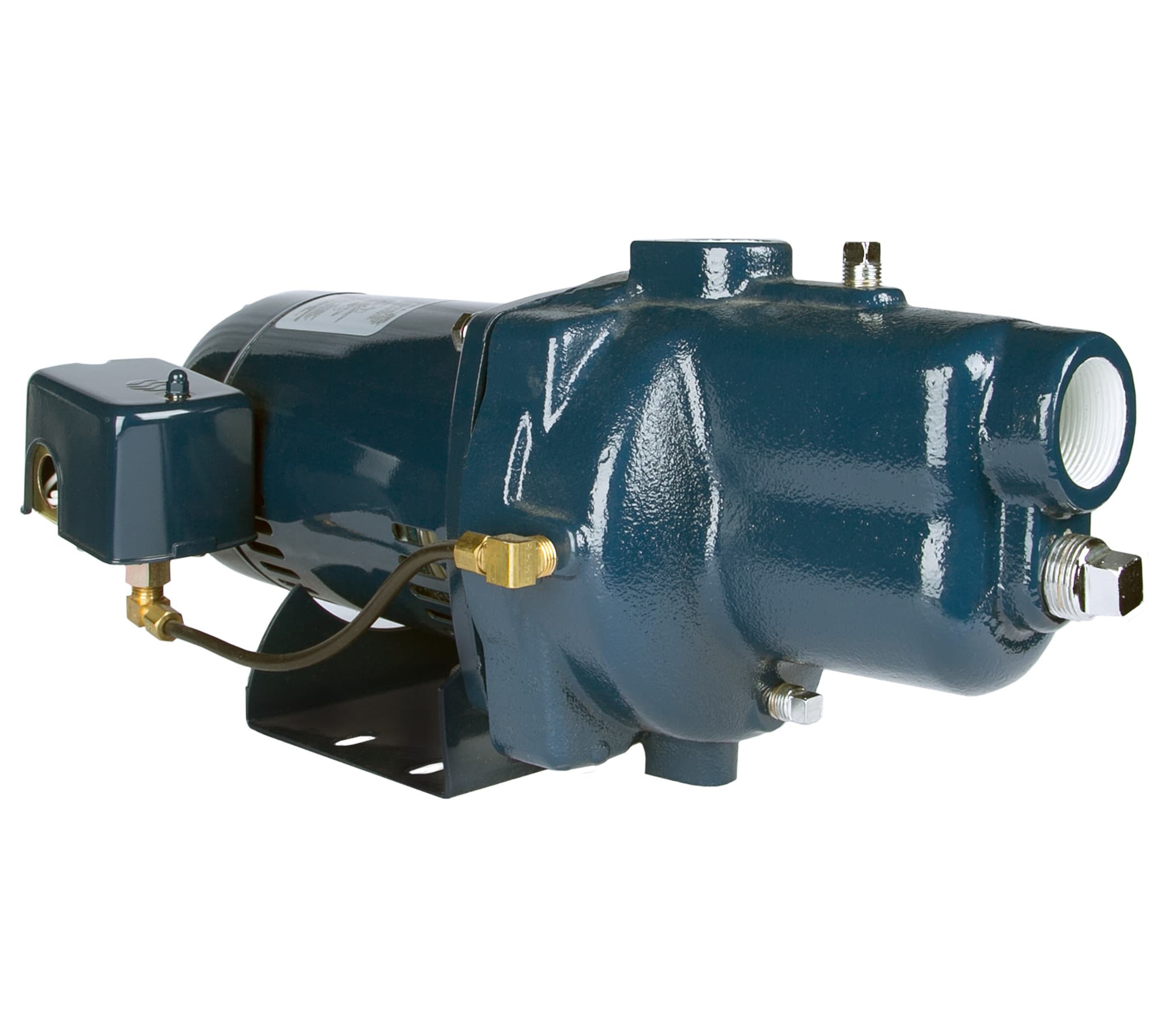

VersaJet Cast Iron Shallow Well Jet Pump FVJ05CI

Name: VersaJet Cast Iron Shallow Well Jet Pump FVJ05CI
Brand: Franklin Electric
SKU: franklin-electric-91180005

رقم القطعة: franklin-electric-91180005

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The VersaJet Series shallow well jet pump is designed for shallow well applications and is capable of raising water from a depth of 25 feet. All mechanical parts, motor, impeller, electrical controls, etc., are above ground within easy reach. The VersaJet shallow well jet pump line is capable of a wide range of pressures and flows, but this may require replacing the standard factory installed jet nozzle with one of the other provided nozzles. Features and benefits: - Revolutionary "Quick-Change" jet nozzle replacement system allows for easy customizationof the pump; performance can be quickly changed from a high pressure to high flow set-up without removing the plumbing or opening the case - Impeller (with stainless steel insert), diffuser, jet nozzle, and venturi all molded with Modified PPO, a material that increases efficiency and hydraulic performance - Phenolic/Ceramic mechanical shaft seal with nitrile elastomers and 18-8SS hardware ensures positive sealing and longevity - Heavy-duty cast iron case includes both pressure and drain ports - Floating stainless steel eye seal provides maximum performance and efficiency - Powered by high quality, industry proven, UL778 approved, indoor/outdoor square-flange single phase motors - Pressure switch installed and set at 30/50 psi - Water temperatures up to 120 °F/49 °C; 75 psi maximum working pressure - 1-1/4" inlet and 1" outlet - all models - NSF/ANSI/CAN 372 Certified

المواصفات

HP 60Hz	1/2 hp
Frequency	60 Hz
Phases	Single-Phase
Volts	115 VAC / 230 VAC
Motor	Surface
S.F.	1.3
Motor NEMA Frame Type	48 Y
Motor Cooling	Air
Temperature Rating	120 °F
Maximum Fluid Temperature	120 °F
Pump Body Material	Cast Iron
Impeller	Closed
Impeller Material	Modified PPO
Seal	Mechanical Seal
Diffuser Material	Modified PPO
Discharge	Threaded - FNPT
Discharge Diameter	1 "
Product Weight	31 lb
Product Weight with Pack	31.5 lb
Carton Length	19.88 "
Carton Width	11 "
Carton Height	12.25 "
Drinking Water Agency Approvals	NSF/ANSI 372
Warranty Standard Time	12 Month Install / 24 Month Manufacturing
Applications	Ideal for the supply of fresh water to rural homes, farms, and cabins
Item #	91180005
Model	FVJ05CI
Series	VersaJet Cast Iron Shallow Well Jet Pump
Product family	VersaJet Cast Iron Shallow Well Jet Pump
Pump Length	17.25 "
Amps at 230 Volts	4.7 A
Seal Material	Phenolic/Ceramic x Buna-N
Pump Height	7.97 "
Pump Width	9.18 "
Suction	Threaded - FNPT
Motor Enclosure	ODP
Suction Diameter	1.25 "
