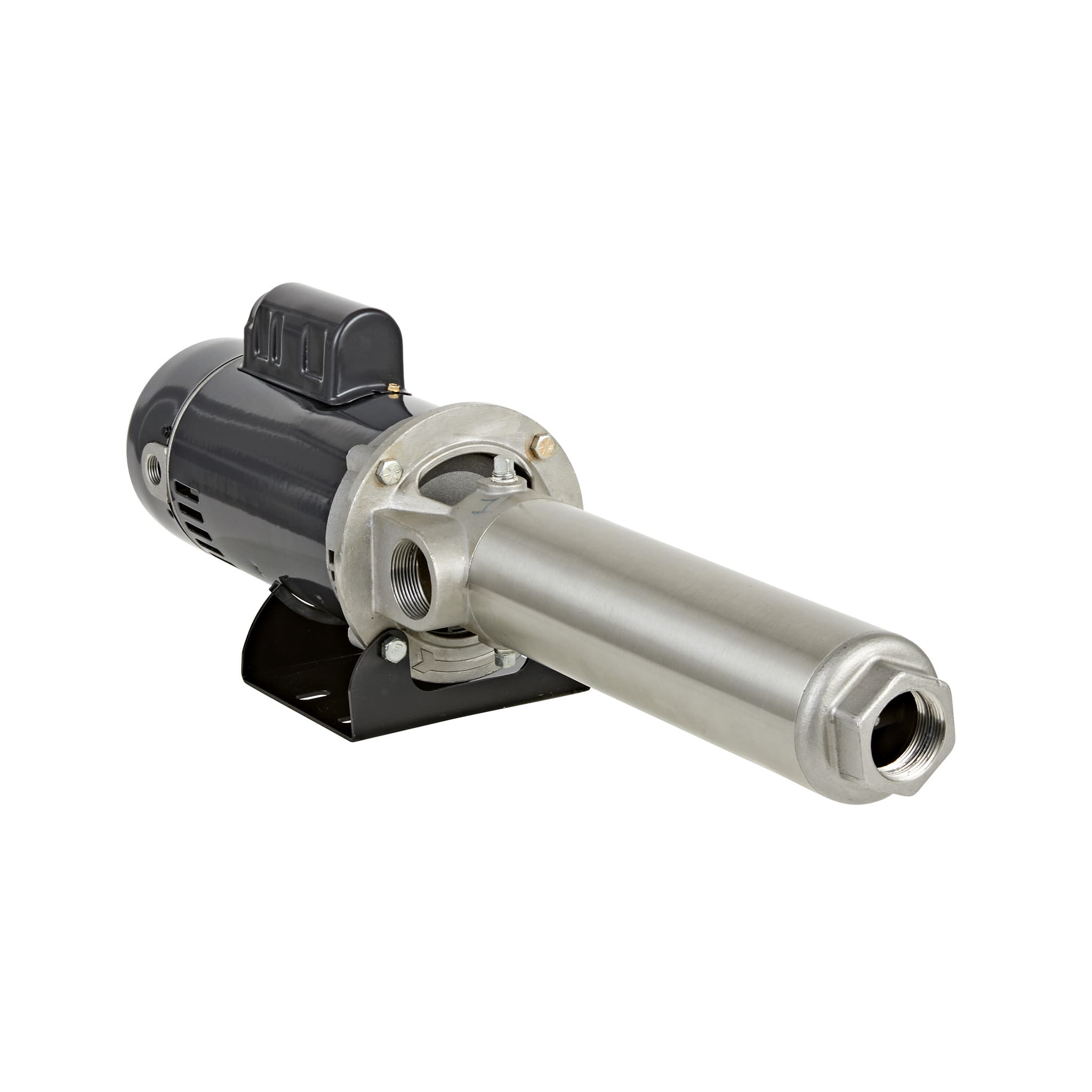

BT4 Series Horizontal Multi-Stage Booster Pump 3503FBT1S4-PE

Franklin Electric

BT4 Series Horizontal Multi-Stage Booster Pump 3503FBT1S4-PE

رقم القطعة: franklin-electric-95923503

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The BT4 horizontal booster pump is a low to medium capacity, high pressure, multi-stage unit. The BT4 booster pump can function as a multi-purpose high pressure pump, boosting water pressure from either city mains or private water systems. It is also ideal for applications that require more pressure than flow. Size ranges from 5 gpm to 45 gpm.

المواصفات

HP 60Hz1 hp
Frequency60 Hz
PhasesNot Applicable
VoltsNot Applicable
MotorNot Applicable
S.F.1.4
Flow35 gpm
Stages3
Maximum Fluid Temperature120 °F
Pump Body MaterialAISI 304 Stainless Steel
ImpellerClosed
Impeller MaterialAcetal
Discharge MaterialStainless Steel
Suction MaterialStainless Steel
DischargeThreaded - FNPT
Discharge Diameter1.5 "
Product Weight15 lb
Product Weight with Pack15.5 lb
Warranty Standard Time12 Months
ApplicationsWater Supply and Pressure Boosting
Item #95923503
Model3503FBT1S4-PE
Series56C Pump End Model
Product familyBT4 Series Horizontal Multi-Stage Booster Pump
Pump Length11.13 "
Seal MaterialCarbon/Ceramic, FKM, 300 series S.S.
Pump Height6.59 "
Pump Width6.5 "
SuctionThreaded - FNPT
Motor EnclosureNot Applicable
Suction Diameter1.5 "
