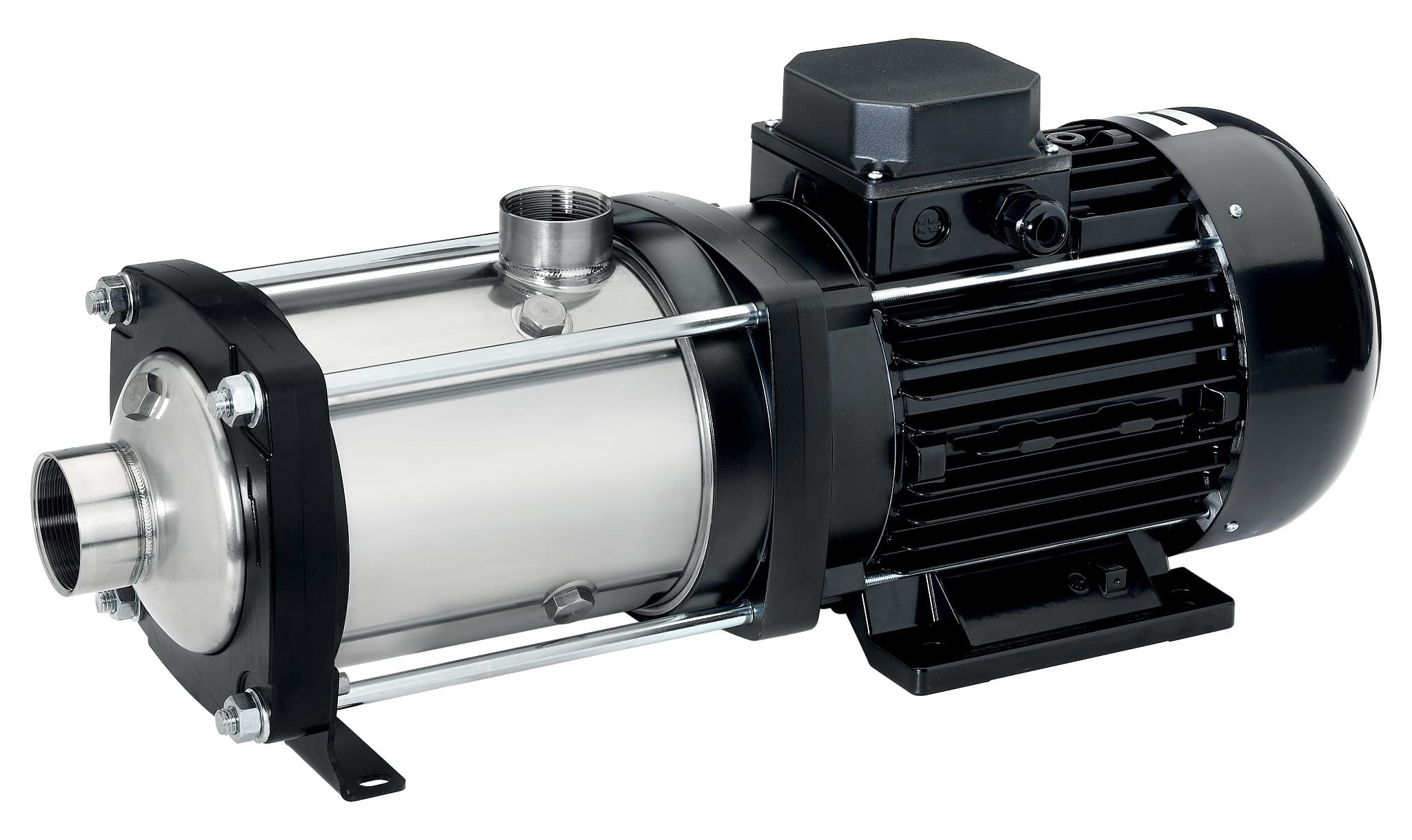

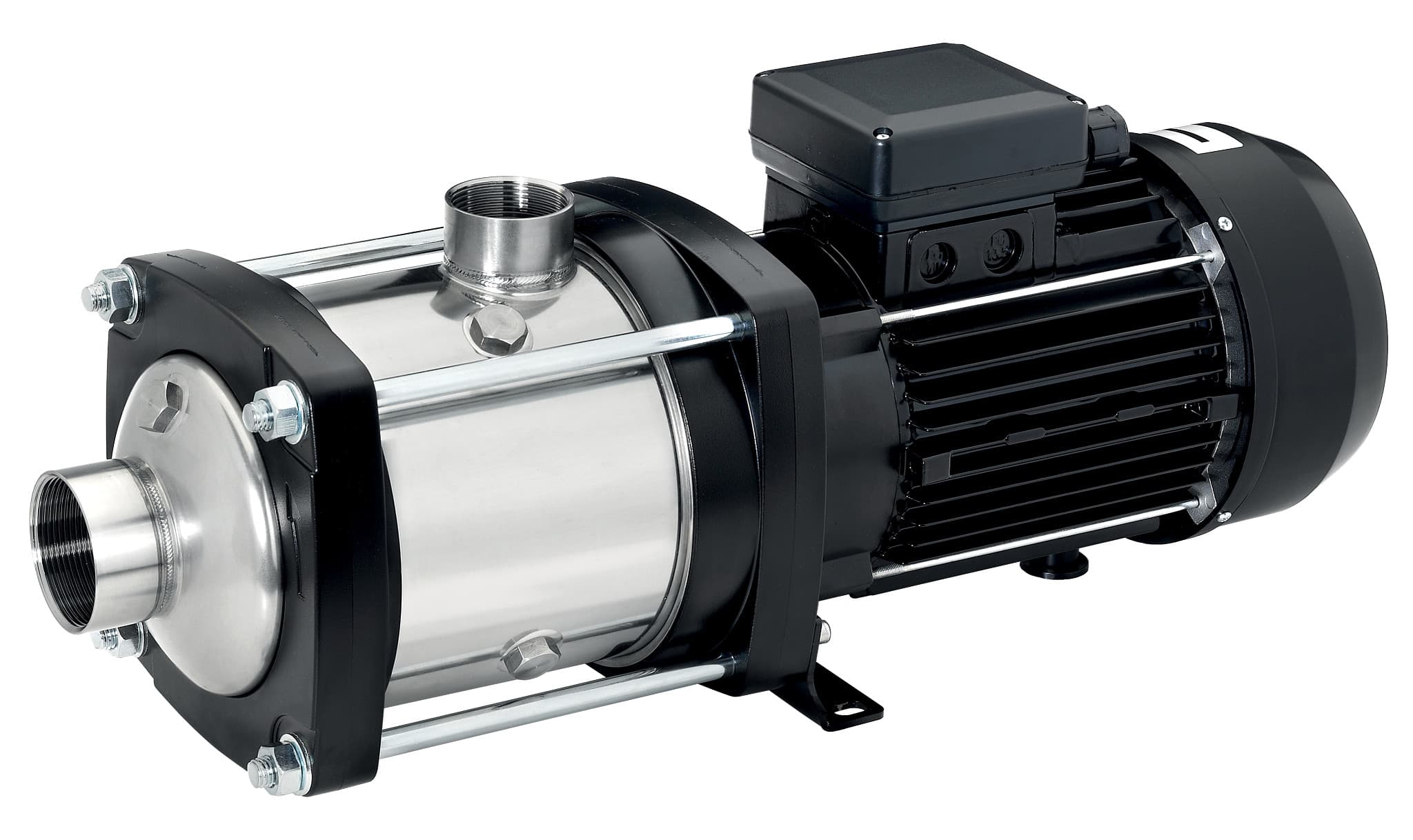

MH Series Horizontal Multi-Stage Booster Pump 70FMH4P-63

MH Series Horizontal Multi-Stage Booster Pump 70FMH4P-63

Name: MH Series Horizontal Multi-Stage Booster Pump 70FMH4P-63
Brand: Franklin Electric
SKU: franklin-electric-96175070304

رقم القطعة: franklin-electric-96175070304

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

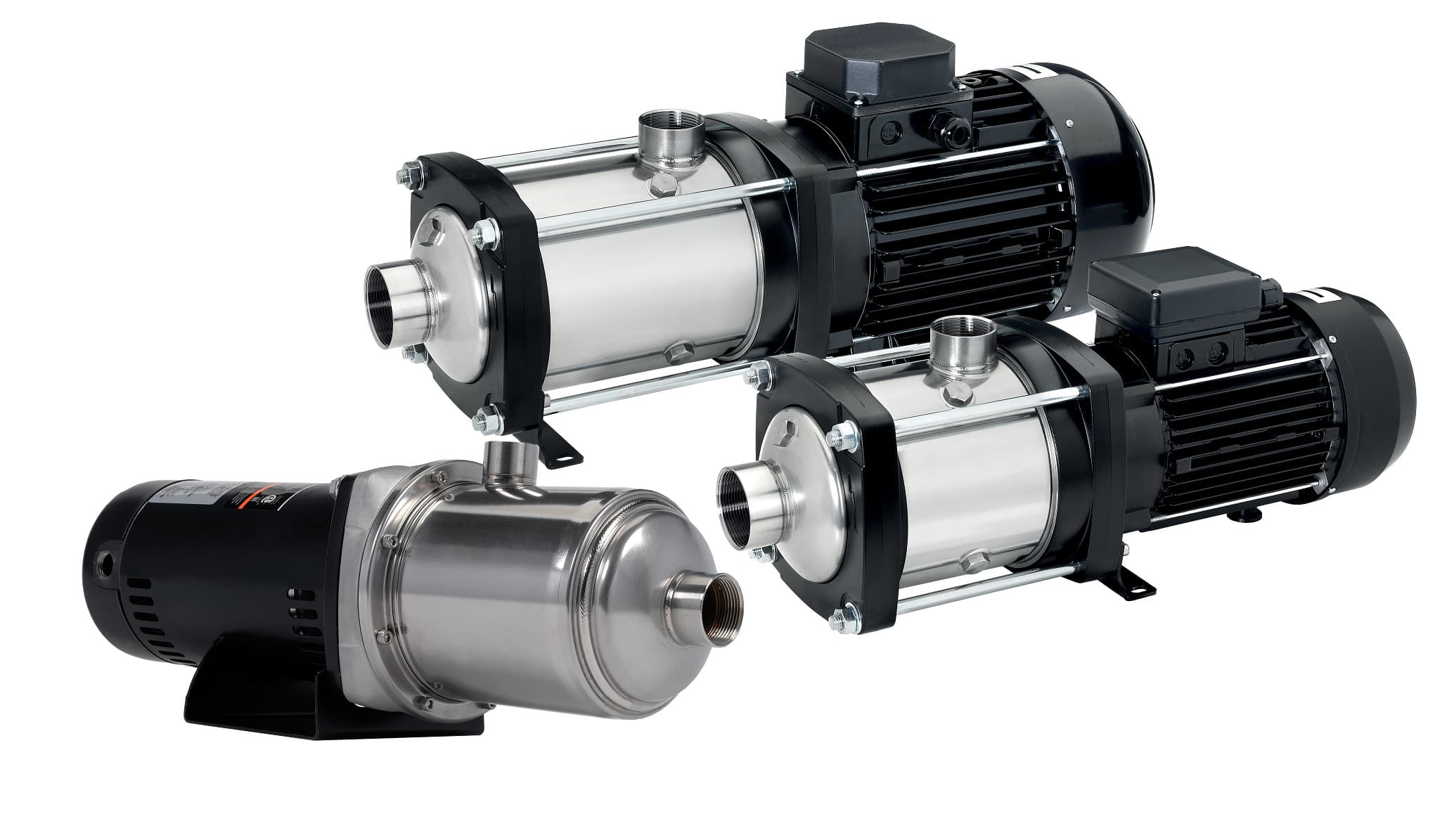

The EH Series, multistage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications. The EH Series is offered in five flow rates and different horsepower sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application. The MH Series, multi-stage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications. The MH Series is offered in five flow rates, 3-phase options, and horsepower sizes up to 7.5HP to make sure you have the right pump to fit your application.

المواصفات

HP 60Hz	7.5 hp
Frequency	60 Hz
Phases	Three-Phase
Volts	220 VAC / 440 VAC
Motor	Surface
Efficiency [η] - Full Load (%)	89.50
Protection [IP]	IP55
Motor Efficiency	89.5
Poles	2
S.F.	1
Flow	70 gpm / 4200 gph / 100800 gpd / 15899 Lph / 264.98 Lpm / 15.9 m³/h
Shut Off 60 Hz	270 ft / 82.3 m
Stages	4
Motor Cooling	Air
Temperature Rating	230 °F / 110 °C
Maximum Fluid Temperature	195 °F / 90.56 °C
Pump Body Material	AISI 304 Stainless Steel
Impeller	Radial
Impeller Material	Stainless Steel AISI 304
Motor Bracket Material	Aluminium
Discharge Material	Stainless Steel AISI 304
Seal	Mechanical Seal
Diffuser Material	Stainless Steel AISI 304
Suction Material	Stainless Steel
Discharge	Threaded - FNPT
Discharge Diameter	1.5 "
Product Weight	96 lb / 43.54 kg
Warranty Standard Time	24 Months
Applications	Small domestic and industrial systems / Domestic water supply Water distribution / pressure boosting Irrigation / Gardening / Sprinklers / Rainwater recovery Industrial plants / Wash down unit Cooling and chilling / Heating and conditioning / Air conditioning systems Pumping of clear non-loaded fluids
Item #	96175070304
Model	70FMH4P-63
Series	Multi-Stage Three Phase Model
Product family	MH Series Horizontal Multi-Stage Booster Pump
Pump Length	25.04 " / 63.6 cm
Amps at 230 Volts	19.9 A
Motor Insulation Classification	F
Maximum Flow Rate - 60 Hz	123.28 gpm / 7397 gph / 177523.62 gpd / 28000 Lph / 466.67 Lpm / 28 m³/h
Seal Material	silicon carbide / silicon carbide / 316 SS / EPDM
Pump Height	10.35 " / 26.3 cm
Pump Width	7.4 " / 18.8 cm
Shaft Diameter	0.63 " / 1.6 cm
Minimum Flow Rate - 60 Hz	44.03 gpm / 2642 gph / 63401.29 gpd / 10000 Lph / 166.67 Lpm / 10 m³/h
Impeller Diameter	4.33 " / 110 mm
Max Solid Handling Size	0.08 " / 0.2 cm
Pump Efficiency	67.7 %
Suction	Threaded - FNPT
Stage Housing Diffuser Material	Stainless Steel 304
Motor Enclosure	Totally Enclosed Fan Cooled
Suction Diameter	2 "
Maximum Suction Lift	0
Rated RPM - 60 Hz	3500
