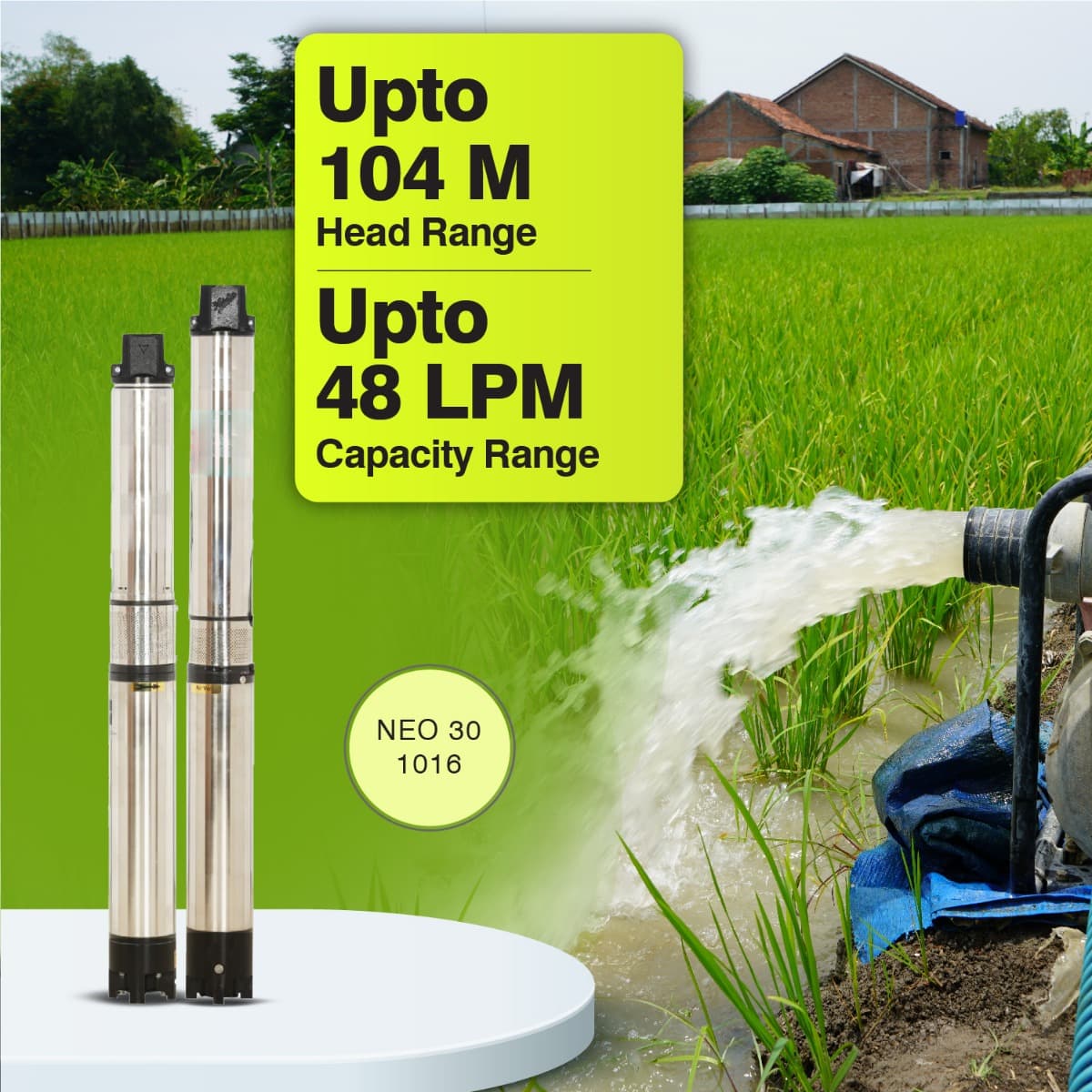

Borewell Submersible Pump, NEO 30-1016, 1 HP, Single Pump, 220 Volts, Size 32mm

Kirloskar Brothers

Borewell Submersible Pump, NEO 30-1016, 1 HP, Single Pump, 220 Volts, Size 32mm

رقم القطعة: kirloskar-brothers-d11kh01000616529

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Overview 10 CM Borewell submersible Pump(water filled) sets, with their stainless steel construction, corrosion & abrasion resistant parts, and high discharge capacity, ideal for Domestic and Community Water Supply, Rural Water Supply, Gardening and Small Farm Irrigation, Construction Site, Water Supplies for High Rise Building. The sturdy build and high-efficiency design of these pumps are hallmarks of their long life and assured performance. Wide Voltage Motor Designs - The Motor are designed to withstand wide voltage fluctuations from 180 to 240 Volts and reduces motor burning in case of low voltage High Efficiency and Energy saving Design - Higher output, lesser power consumption Dynamically Balanced Rotating Parts - Minimum vibrations protect components from damage during operation, resulting in consistent performance as concentricity is maintained Longer and Trouble-Free Life - High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Norly Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% Electro Grade Copper Rotor and Winding Wires for longer and trouble-free life Advanced Water Cooled Motors Designs - The motor is filled with portable water, protects from overheating, and facilitates smoother and trouble-free operations for the years Sand Fighter designs restrict the entry of sand in motors and protect the pump and motor bushes CED coating - CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life Nationwide Service Network - Easy availability of spares and prompt after services through nationwide company authorized service centers

المواصفات

Product SeriesNEO
Pump ModelNEO 30-1016
Pump Type (Installation) Submersible
Pump Type (Application)Borewell Submersible
Power (In HP)01.00
Phase1
Rated Voltage (Volts)220
Frequency (in Hz)50
Speed (rpm)2790
Head Minimum (in m)35
Head Maximum (in m)104
Discharge Minimum6
Discharge Maximum48
Discharge unitlpm
Delivery Size (in mm)32
ImpellerNoryl
Motor BodyStainless Steel
Pump ShaftStainless Steel
SealingOil Seal
Warranty24 Months
Gross Weight (kg)27
Net ContentsPumpset comprising 1 Pump, 1 Motor
Item CodeD11KH01000616529
Manufacturing locationSanand, Gujarat
No. of Stages16
Size of Borewell10
Min. Submergence From Bottom (in mm)2000
