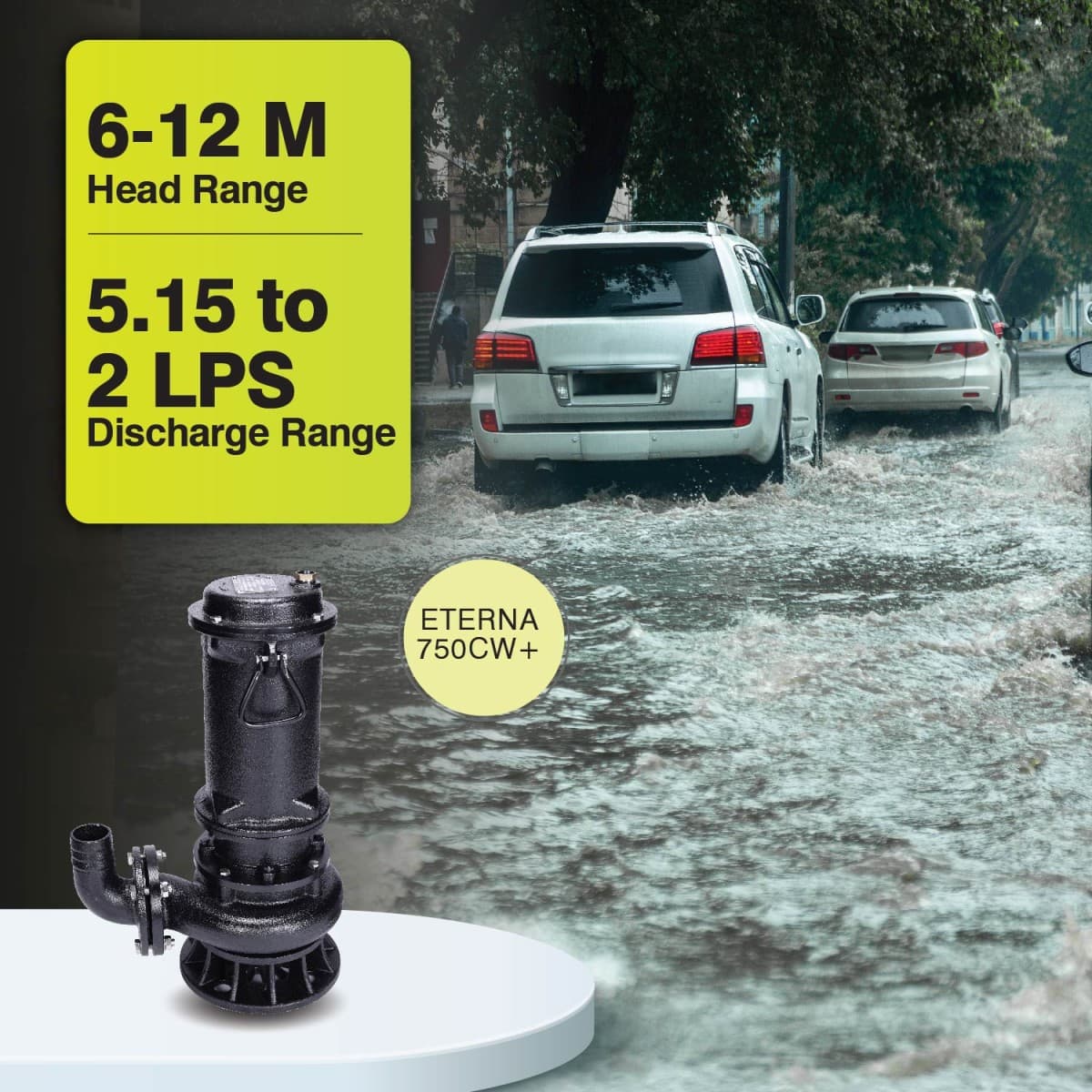

De-watering (Sewage) Pump, ETERNA 750CW+, 1 HP, Three Phase, 415 Volts, Size 50mm
رقم القطعة: kirloskar-brothers-d12310100151
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Overview Kirloskar sewage de-watering submersible pumps are pre-fitted with a float switch, which ensures that the pump is automatically switched on and off as per requirement. These ready-to-use pumps don’t require any insulation. Just drop it in the tank, and you are ready to go. With a strong stainless steel body and a thermal overload protector, these pumps are suitable for a wide range of dewatering purposes including removing stagnant water from basements, draining accumulated stormwater and surplus water from sumps, emptying water tanks and pits for cleaning, etc. - High Efficiency and Energy Saving Design - Innovative design manufactured at state of the art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. - Easy Maintainable Designs - Easily maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians. - Robust Construction - Heavy-duty construction made from graded cast iron, carbon + silicon carbide mechanical seal makes the pump suitable for sewage and sludge. - Replaceable Wearing Parts - All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump. - Dynamically Balanced Rotating Parts - Minimum vibrations protect components from damage during the operations, thus ensuring consistent performance as concentration is maintained.
المواصفات
| Product Series | CW |
|---|---|
| Pump Model | ETERNA 750CW+ |
| Pump Type (Installation) | Submersible |
| Pump Type (Application) | Dewatering (Sewage ) |
| Power (In HP) | 01.00 |
| Phase | 3 |
| Rated Voltage (Volts) | 415 |
| Frequency (in Hz) | 50 |
| Speed (rpm) | 2800 |
| Head Minimum (in m) | 6 |
| Head Maximum (in m) | 12 |
| Discharge Minimum | 2 |
| Discharge Maximum | 5.15 |
| Discharge unit | LPS |
| Delivery Size (in mm) | 50 |
| Impeller | C.I. Gr. FG-200 OF IS:210 |
| Delivery Casing | C.I. Gr. FG-200 OF IS:210 |
| Motor Body | C.I. Gr. FG-200 OF IS:210 |
| Pump Shaft | S.S. Gr. X12CR12 OF IS:1570 Part-5 |
| Sealing | Mechanical Seal |
| Certification/Accreditation | NON -ISI |
| Gross Weight (kg) | 36 |
| Net Contents | 1 Pumpset, 1 Bend , 1 Gasket 4 Bolt, 4Nut, 4Washer |
| Item Code | D12310100151 |
| Manufacturing location | Dewas, Madhya Pradesh |
| No. of Stages | 1 |
| Min. Submergence From Bottom (in mm) | 1000 |
| Max Solid Size (in mm) | 22 |
