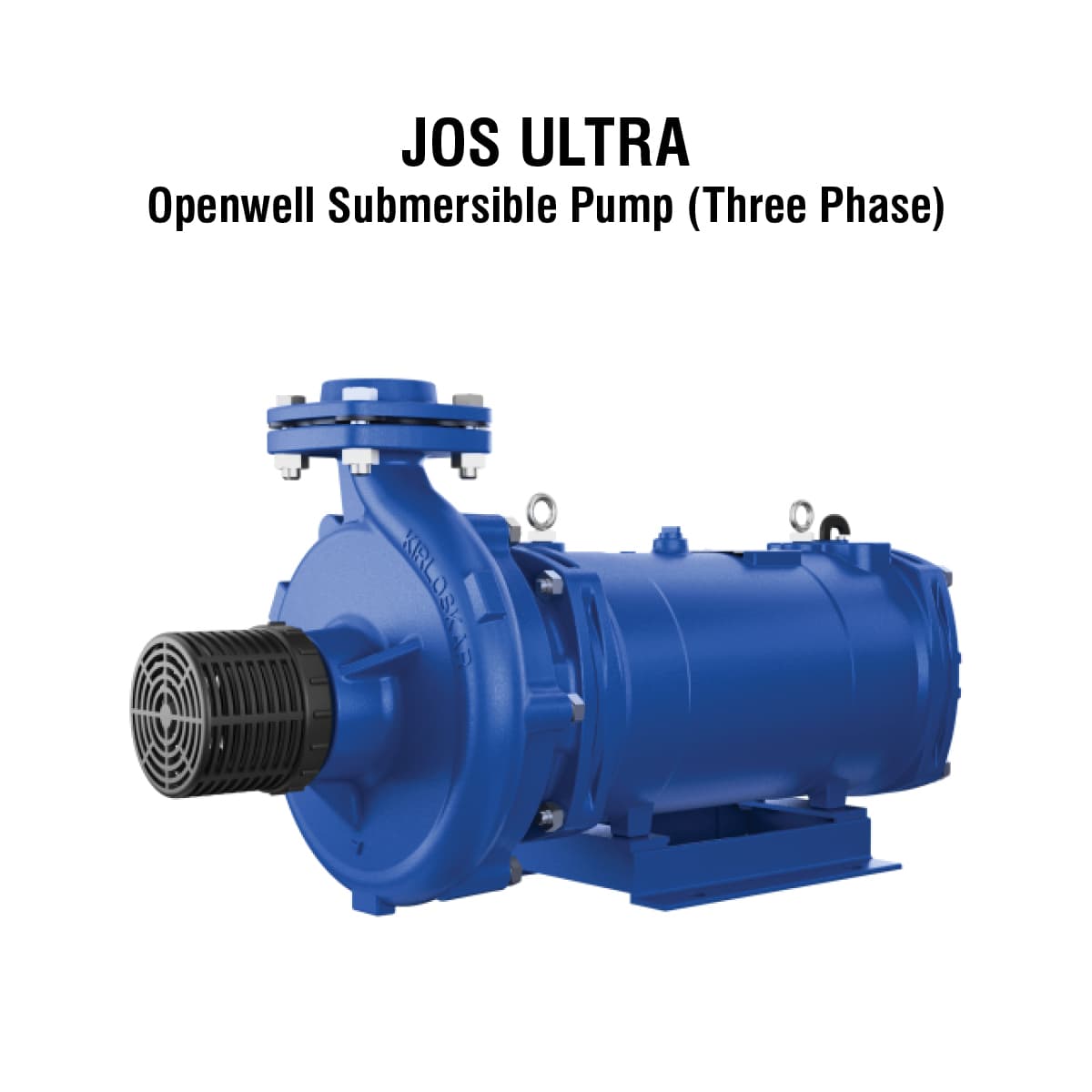

Horizontal Openwell Submersible Pump, JOS ULTRA-1045, 10 HP, Three Phase, 380 Volts, Size 80mm X

Name: Horizontal Openwell Submersible Pump, JOS ULTRA-1045, 10 HP, Three Phase, 380 Volts, Size 80mm X
Brand: Kirloskar Brothers
SKU: kirloskar-brothers-d12bl10051501020

رقم القطعة: kirloskar-brothers-d12bl10051501020

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Overview Kirloskar JOS ULTRA-1045, 10 hp horizontal openwell submersible pump designed to withstand wide voltage fluctuations thus reduces motor burning in case of low voltage. Kirloskar open well submersible water pump is ideal for applications such as domestic and community water supply, rural water supply, water supplies for high-rise buildings, sprinklers, drip irrigation and Irrigation in (horticulture & agriculture). Features - Wide Voltage Design - The motor is designed to withstand wide voltage variations which reduces the chances of motor burning at low voltage - Design to Prevent Overloading - Lesser chances of motor burning even if the pump operates at lower head than recommended as motor does not get overload thus ensures substantial saving from maintenance cost and breakdown - High Efficiency and Energy Saving Design - Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings - Dynamically Balanced Rotating Parts - Minimum vibration protects components from damage during the operation, thus ensures consistent performance over longer time period as concentricity is maintained - Advanced Water Cooled Motors Designs - The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years - Wide Voltage Motor Designs - Motors are designed with extra overload capacities, more water spaces and engineered with high grade materials to performs well in low voltage with minimum discharge drops and suitable for wide voltage applications - Easy Maintainable Designs - Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians High Head Applications - The pump has been designed to deliver large volumes of water for high head applications, helping customers to achieve high turnaround time and productivity

المواصفات

Product Series	JOS Ultra
Pump Model	JOS ULTRA-1045
Pump Type (Installation)	Submersible
Pump Type (Application)	Openwell Submersible
Power (In HP)	10.00
Phase	3
Rated Voltage (Volts)	380
Frequency (in Hz)	50
Speed (rpm)	2820
Head Minimum (in m)	29
Head Maximum (in m)	45
Discharge Minimum	7
Discharge Maximum	21.5
Discharge unit	lps
Suction Size (in mm)	80
Delivery Size (in mm)	65
Impeller	Cast iron
Delivery Casing	Cast iron
Motor Body	Cast iron
Pump Shaft	SS Shaft
Sealing	Nitrile rubber
Gross Weight (kg)	77
Net Contents	1 Pumpset
Item Code	D12BL10051501020
Min. Submergence From Bottom (in mm)	More than 1 meter
