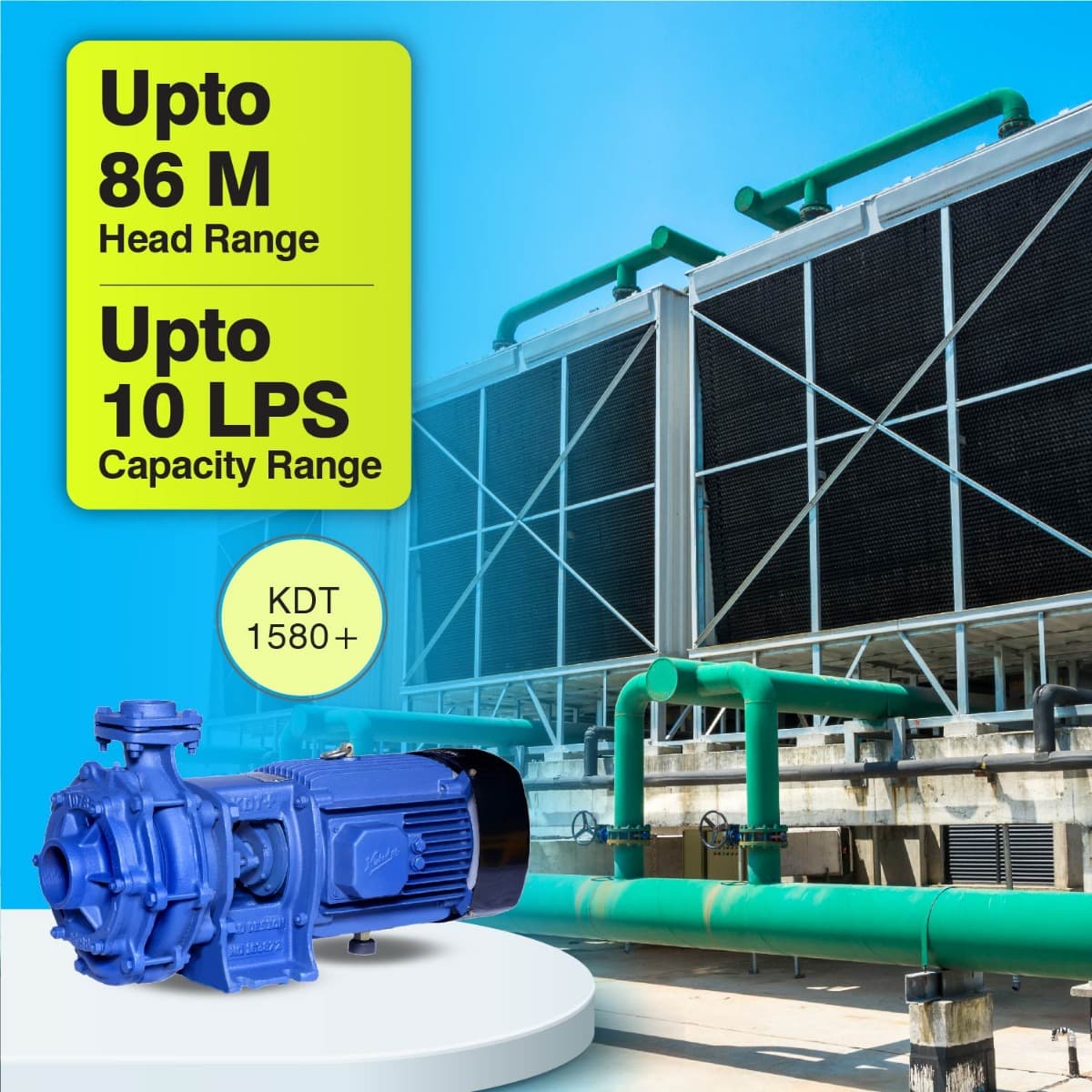

Monobloc Pump, KDT-1580+, 15 HP, Three Phase, 415 Volts, Size 65mm X 65mm

Monobloc Pump, KDT-1580+, 15 HP, Three Phase, 415 Volts, Size 65mm X 65mm

Name: Monobloc Pump, KDT-1580+, 15 HP, Three Phase, 415 Volts, Size 65mm X 65mm
Brand: Kirloskar Brothers
SKU: kirloskar-brothers-d12031500210

رقم القطعة: kirloskar-brothers-d12031500210

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Overview 15 Hp three-phase Kirloskar monobloc pumps comprise a flatter efficiency curve for efficient operation in the entire operating range. These heavy-duty monobloc water pumps can withstand voltage fluctuations ranging. Kirloskar's centrifugal monobloc pumps are perfectly suited for industrial applications for handling clear water at high pressures and for other water-handling applications like air-conditioning and refrigeration systems, cooling towers and firefighting systems. Features - Flatter Efficiency Curve - Minimum variations in efficiency during entire operating range increases the utility of pumpset for variable conditions - High Head Applications - The pump has been designed to deliver large volumes of water for high head applications, helping customers to achieve high turnaround time and productivity - Wide Voltage Design - The motor is designed to withstand wide voltage Variation from 300 to 440 volts and reduces motor burning in case of low/high voltage. Designed to Prevent Overloading - Lesser chances of motor burning as it does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost saving due to low maintenance and breakdown - Replaceable Wearing Parts - All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump - Dynamically Balanced Rotating Parts - Minimum vibration protects the components from damage during the operation, thus ensuring consistent performance as concentricity is maintained - CED – Cathodic Electro Deposition - CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated - Automatic Air Release - Automatically releases air when the pump starts ensuring swifter and smoother operations, thus eliminating the necessity of operating air release cock - High Efficiency and Energy Saving Design - Innovative design manufactured at state-of-the-art plant, delivers optimum

المواصفات

Product Series	KDT
Pump Model	KDT-1580+
Pump Type (Installation)	Surface
Pump Type (Application)	Monobloc
Power (In HP)	15.00
Phase	3
Rated Voltage (Volts)	415
Frequency (in Hz)	50
Speed (rpm)	2880
Head Minimum (in m)	46
Head Maximum (in m)	86
Discharge Minimum	3
Discharge Maximum	10
Discharge unit	lps
Suction Size (in mm)	65
Delivery Size (in mm)	65
Impeller	Cast Iron / Stainless Steel / Bronze
Delivery Casing	Cast Iron
Motor Body	Cast Iron
Pump Shaft	Carbon Steel / Stainless Steel
Sealing	Gland Packed
Certification/Accreditation	ISI
Warranty	12 Months
Gross Weight (kg)	135
Net Contents	1 Pumpset
Item Code	D12031500210
Manufacturing location	Dewas, Madhya Pradesh
No. of Stages	1
