Openwell Submersible Pump, KOS-216M, 2 HP, Three Phase, 415 Volts, Size 65mm X 50mm
رقم القطعة: kirloskar-brothers-d12380201251
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

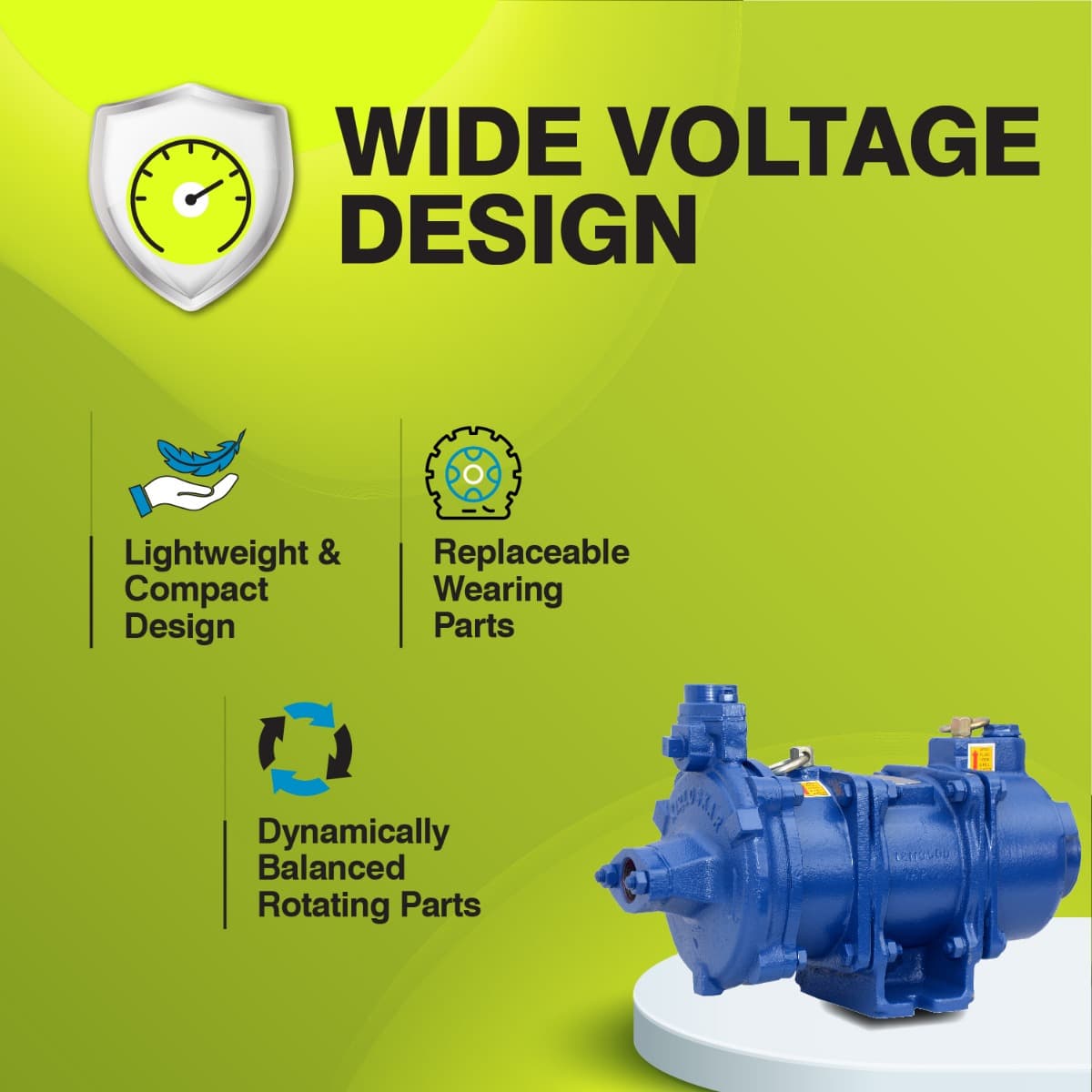

Oerview Kirloskar KOS open well submersible pump 2 hp (Three Phase Pump) is designed to withstand wide voltage fluctuations from 300 to 440 Volts and reduces motor burning in case of low voltage. These pumps are suitable for Industrial Service Water Supply Schemes, Domestic and Community Water Supply, Construction Sites, Irrigation in Horticulture and Agriculture, Water Supplies for High Rise Building. Features - Wide Voltage Design - The motor is designed to withstand wide voltage variation from 300 to 440 volts and reduces motor burning in case of low/high voltage - Lightweight and Compact Design - Constructed with special grade engineering materials, compact designs for ease of handling and installation - Dynamically Balanced Rotating Parts - Minimum vibration protects the components from damage during the operation, thus ensuring consistent performance as concentricity is maintained - Replaceable Wearing Parts - All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump - Easy Maintainable Designs - Easy maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians - CED – Cathodic Electro Deposition - CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated - High Efficiency and Energy Saving Design - Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings - Advanced Water Cooled Motors Designs - The motor is filled with potable water which protects it from overheating and facilitates smoother and trouble free operation for years
المواصفات
| Product Series | KOS-M |
|---|---|
| Pump Model | KOS-216M |
| Pump Type (Installation) | Submersible |
| Pump Type (Application) | Openwell Submersible |
| Power (In HP) | 02.00 |
| Phase | 3 |
| Rated Voltage (Volts) | 415 |
| Frequency (in Hz) | 50 |
| Speed (rpm) | 2840 |
| Head Minimum (in m) | 8 |
| Head Maximum (in m) | 14 |
| Discharge Minimum | 6.9 |
| Discharge Maximum | 11 |
| Discharge unit | LPS |
| Suction Size (in mm) | 65 |
| Delivery Size (in mm) | 40 |
| Impeller | Cast Iron |
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Stainless Steel |
| Gross Weight (kg) | 47 |
| Net Contents | 1 Pumpset, 1 Strainer |
| Item Code | D12380201251 |
| Min. Submergence From Bottom (in mm) | 1000 |
