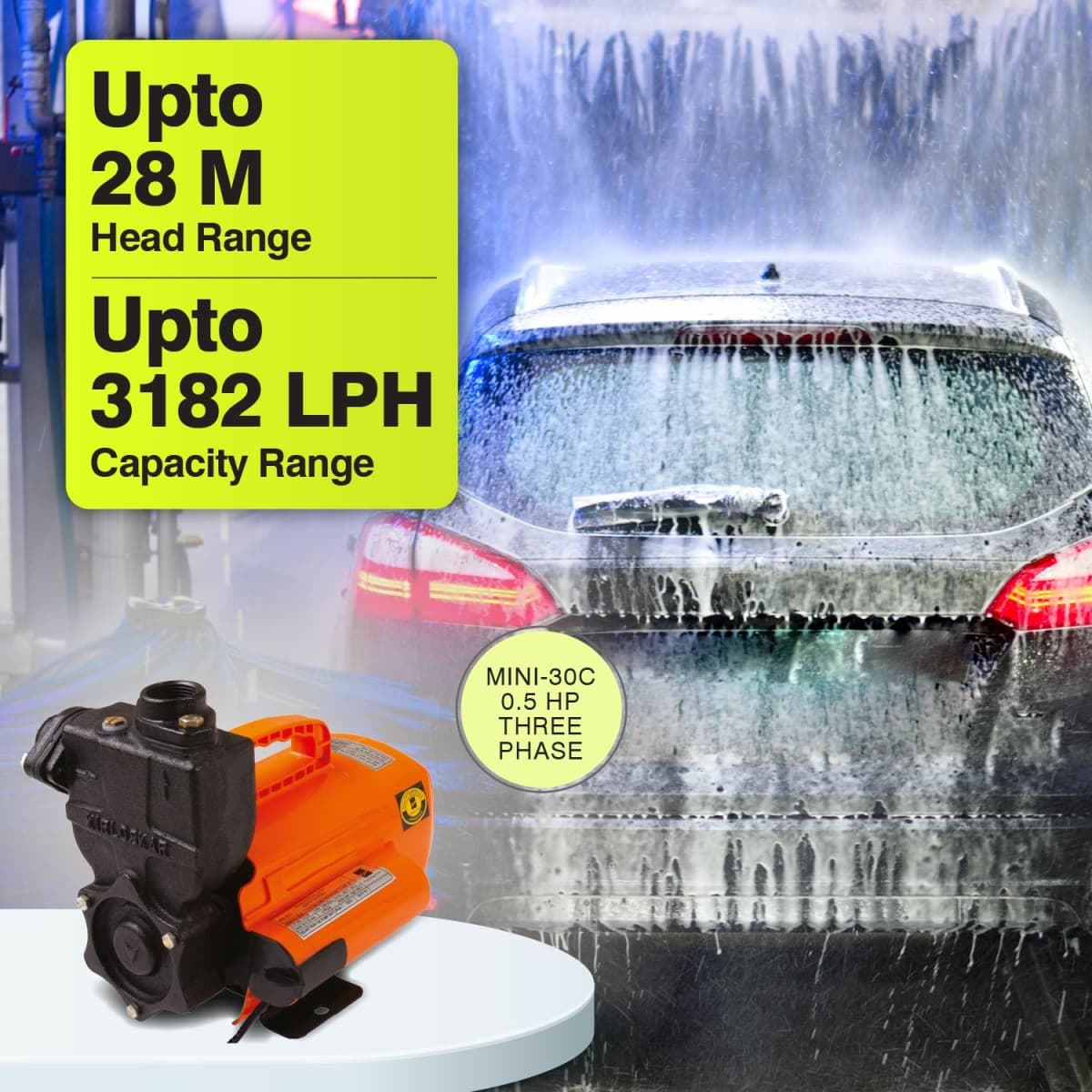

Self-priming Pump, MINI-30C, 0.5 HP, Three Phase, 415 Volts, Size 25mm X 25mm - D12XA00510401033
رقم القطعة: kirloskar-brothers-d12xa00510401033
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Overview Kirloskar Self-priming pumps comprise a TOP for protection of the motor from overloading. Suitable for the voltage range 180 to 260 Volts (Three Phase Pump) and are thus perfectly suited for Water supply to Overhead Tanks in Bungalows, Gardens/Fountains, Feed Water to RO Plants, Domestic Water Supply, Construction Sites, Home Pressure Boosting, Car Washing, Lawn, Sprinklers. Key Features High Suction Lift - The pump has a suction lift capacity of up to 7.5 meters with a high head, facilitating the pumping of water at high volumes for a variety of applications High-Quality Aluminium Motor Body - Special grade aluminum motor body ensures high resistance to corrosion, better heat dissipation, and lowers the pump's overall weight for great portability TOP - Thermal Overload Protector - The pump set features a thermal overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault currents Handle To Enhance Grip and portability - A handle attached to the pump allows the user to carry the pump anywhere, adding to its portability and convenience to use Easy Maintainable Designs - Easily maintainable design and better interchangeability of components ensure that the pump can be serviced even at remote locations by semi-skilled technicians Shielded Ball Bearing - The low-noise pumps are fitted with shielded ball bearings; So, no external lubrication require throughout the life cycle High Efficiency And Energy Saving Design - Innovative design manufactured at state of the art, plant ensures optimum efficiency and lower energy consumption resulting in significant cost savings Dynamically Balanced Rotating Parts - Minimum vibrations protect components from damage during operation, resulting in consistent performance as concentricity is maintained
المواصفات
| Product Series | Mini-30C 3PH |
|---|---|
| Pump Model | MINI-30C |
| Pump Type (Installation) | Surface |
| Pump Type (Application) | Self Priming |
| Power (In HP) | 00.50 |
| Phase | 3 |
| Rated Voltage (Volts) | 415 |
| Frequency (in Hz) | 50 |
| Speed (rpm) | 2720 |
| Head Minimum (in m) | 6 |
| Head Maximum (in m) | 28 |
| Discharge Minimum | 727 |
| Discharge Maximum | 3182 |
| Discharge unit | lph |
| Suction Size (in mm) | 25 |
| Delivery Size (in mm) | 25 |
| Impeller | BRASS |
| Delivery Casing | Cast iron |
| Motor Body | Cast iron |
| Pump Shaft | Carbon Steel |
| Sealing | Mechanical Seal |
| Warranty | 24 Months |
| Gross Weight (kg) | 16 |
| Net Contents | 1 Pumpset, 1 Strainer |
| Item Code | D12XA00510401033 |
| No. of Stages | 1 |
