Self-priming, Sewage/Dewatering Pump, SP-2H CS, 3 HP, Three Phase, 415 Volts, Size 50mm X 50mm
رقم القطعة: kirloskar-brothers-d14150305876
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

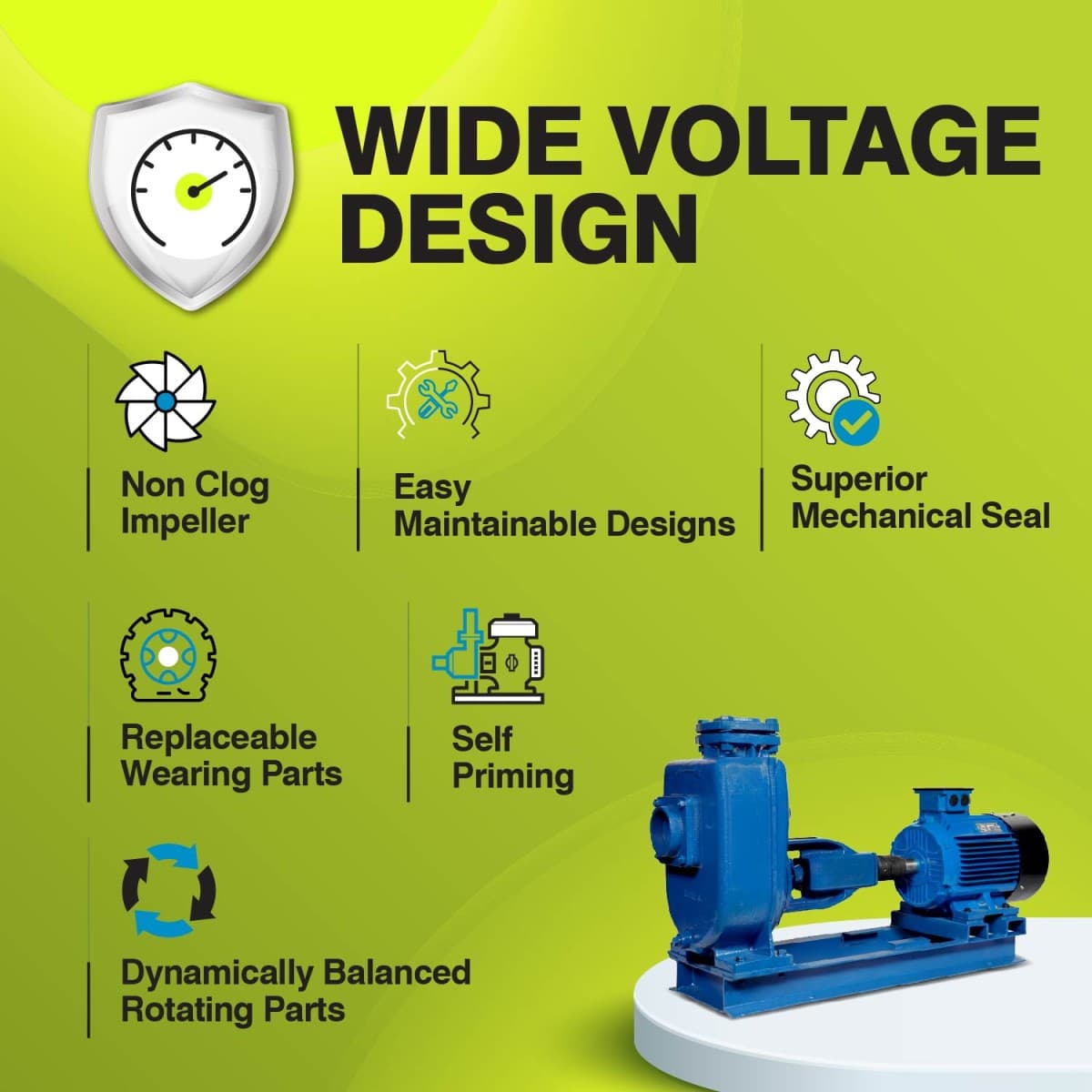

Overview - Kirloskar Self-priming Three Phase Pump is majorly used for dewatering applications. Self-priming 3 hp pump is widely used for Handling Chemicals, Effluents, Sewage, Ash-water, Dewatering Foundations, Trenches and Pits, Flood Water Handling, Pumping Water from Docks, Ports, Vessels, Dewatering from Basements, Multi-storeys, Shopping Malls, Godown, Cooling Water for Marine Engines and Shovels. Features - - Self Priming - No need of foot valve and priming pumpset every time for quicker operations. - Non Clog Impeller - Non clog impeller to handle suspended soft solids upto 60 MM in size made it suitable for sewage and dewatering applications. - Flatter Efficiency Curve - Minimum variations in efficiency during entire operating range increases the utility of pumpset for variable conditions. - Designed to Prevent Overloading - Lesser chances of motor burning as it does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost saving due to low maintenance and breakdown. - Dynamically Balanced Rotating Parts - Minimum vibration protects the components from damage during the operation, thus ensuring consistent performance as concentricity is maintained. - Replaceable Wearing Parts - All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump. - Easy Maintainable Designs - Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians. - CED Coated Impeller - Resistance to corrosion leading to longer life.
المواصفات
| Product Series | SP |
|---|---|
| Pump Model | SP-2H CS |
| Pump Type (Installation) | Surface |
| Pump Type (Application) | Dewatering (Sewage ) |
| Power (In HP) | 03.00 |
| Phase | 3 |
| Rated Voltage (Volts) | 415 |
| Frequency (in Hz) | 50 |
| Speed (rpm) | 2900 |
| Head Minimum (in m) | 12 |
| Head Maximum (in m) | 25 |
| Discharge Minimum | 1.8 |
| Discharge Maximum | 8.7 |
| Discharge unit | lps |
| Suction Size (in mm) | 50 |
| Delivery Size (in mm) | 50 |
| Impeller | S.S |
| Delivery Casing | CAST IRON |
| Motor Body | CAST IRON |
| Pump Shaft | S.S |
| Sealing | MECHANICAL SEAL |
| Certification/Accreditation | NON-ISI |
| Warranty | 12 Months |
| Gross Weight (kg) | 97 |
| Net Contents | 1 Pumpset |
| Item Code | D14150305876 |
| No. of Stages | 1 |
