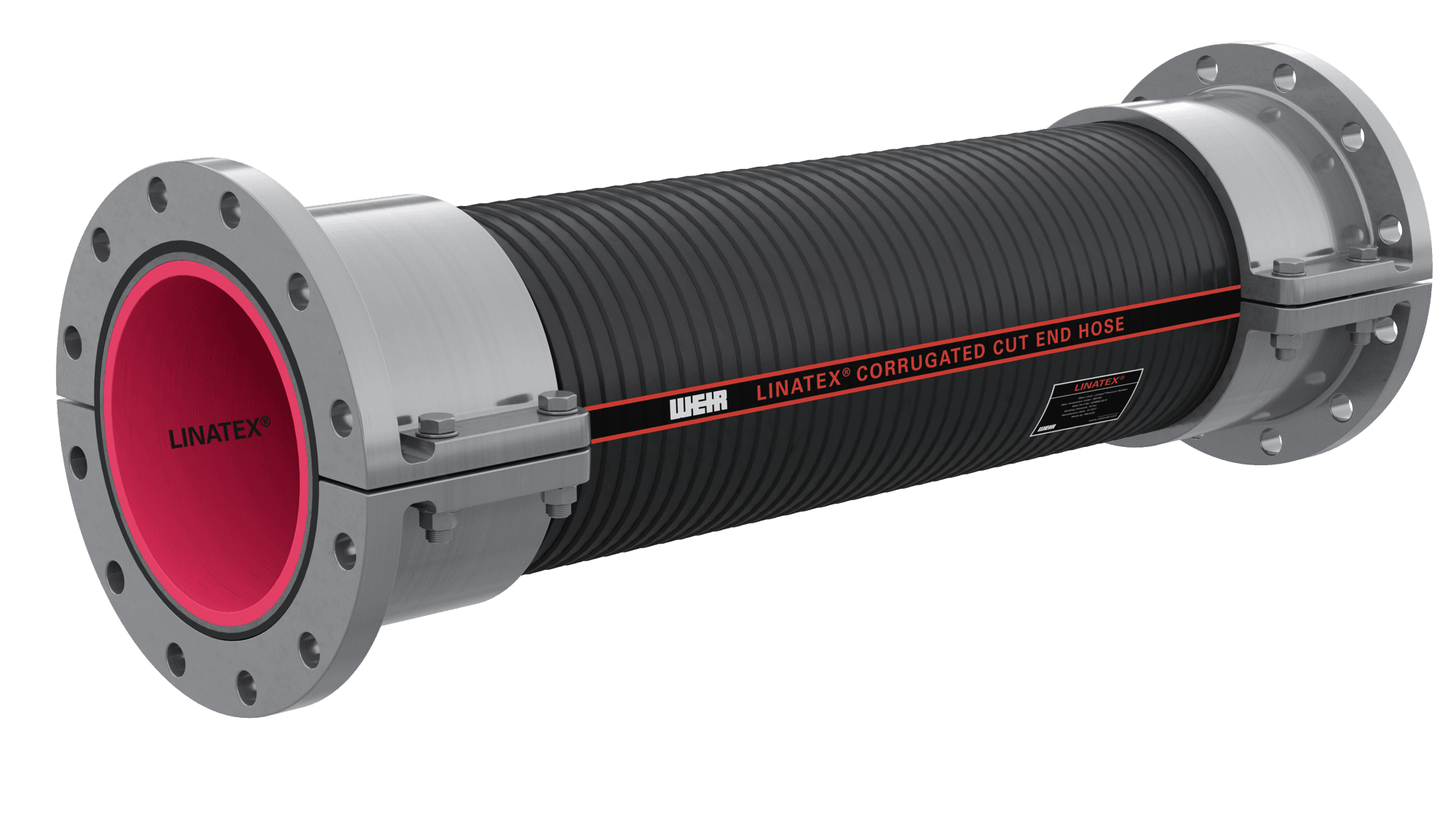

Linatex® Cut-End Hoses and Couplings

Name: Linatex® Cut-End Hoses and Couplings
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Our Linatex® cut end hose coupling arrangements are designed to be an ‘off-the-shelf’ hose system and have been developed to minimise downtime and maintenance costs. These hoses differ from our Linatex® rubber mining hoses in that they are limited in their size and pressure range and are designed for a "quick fix" in low-wear application. Combining the outstanding abrasion resistance of a uniform wear tube with lightweight reusable aluminium flanged couplings, this unique combination allows fast and easy on-site assembly. The hose coupling system is not exposed to the material flow and is therefore suitable for abrasive and corrosive duties. The couplings are available with ANSI 150, BS and DIN bolt patterns in aluminium and can accommodate a maximum pressure of 1000 kPa. Our cut-end hose is available in both smooth and corrugated form. Compared to other types of hose, our Linatex® cut-end rubber hoses offer the following benefits: Industry-leading abrasion-resistant selection of rubber compounds Off-the-shelf hose system developed to minimise downtime Stocked in standard sizes from 2in - 14in (50mm - 350mm) and hose lengths to 50ft Offered with reusable aluminium flanged couplings Can be made with two different liners - Linatex® Premium Rubber or SBR standard rubber liner Available with a variety of standard bore sizes and lengths For more information about our range of industrial and mining hoses, please get in touch with our team.

المواصفات

TEMPERATURE RANGE	Suitable for working temperatures between -35°C and +75°C (-31°F and + 167°F).
Brand line	Linatex®
Product type	Hoses and Hose Fittings, Hoses Pipes and Spools
DESIGN	Linatex® cut-end hoses are designed with standard Linatex® wear liners, corrugated covers with controlled outside diameters and corrugated pitch for ease of installation of the two-piece end couplings. Each hose is manufactured with a 3:1 safety factor for working pressure.
Catalogue category	Hoses Pipes and Spools, Hoses and Hose Fittings
SIZE RANGE	Standard stock sizes range from 50mm - 400mm (2in - 16in) and hose lengths to 50ft.
PRESSURE CLASS	Suitable for up to 1000kPa working pressure depending on customers application and specifications.
MATERIAL	Linatex® cut end hoses are made from best-in-class rubber compounds.
