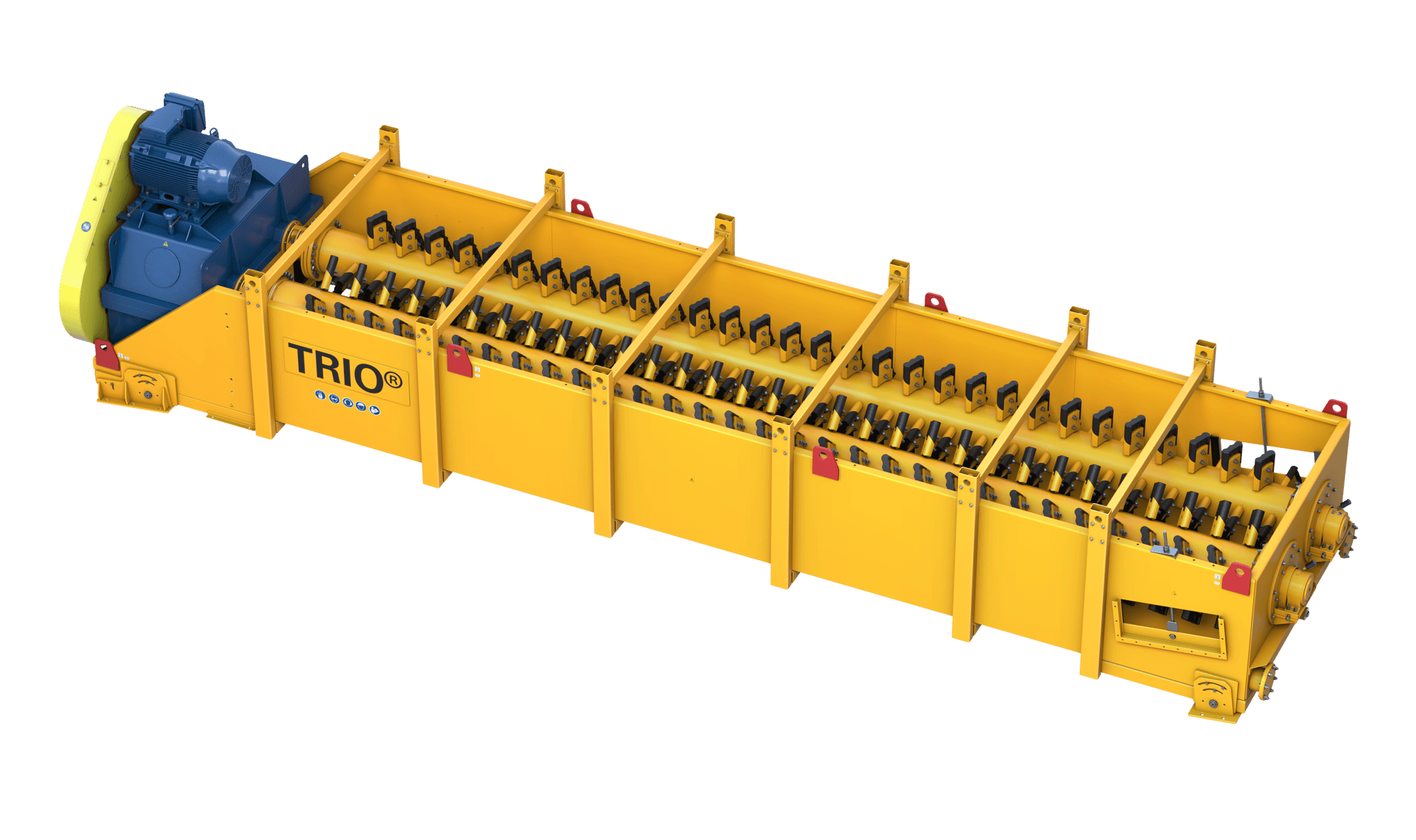

Trio® TLW Series of Log Washers

Name: Trio® TLW Series of Log Washers
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Our range of Trio® log washers are especially designed for the washing and separation of aggregates. They assist with breaking down heavy plastic clay, conglomerates, and certain types of soft stone that may be present in ore, crushed rock or gravel. They can also remove coatings from individual particles, break up agglomerations and reduce some soft, unsound fractions by a mild form of differential grinding. Scrubbing is accomplished by the severe abrading action of corrugated-faced cast-iron blades (paddles) mounted on the spuds welded to the log shafts. The log shafts rotate in opposite directions and are timed to obtain an overlap of the paddle shoes for maximum scrubbing action. Log washer feed material should be pre-screened to ensure that the top size does not exceed a nominal of 100mm (4”) and to eliminate all material smaller than 10mm (3/8”). For more information about our range of log washers, please get in touch with our team.

المواصفات

Brand line	Trio®
Product type	Washers, Washing Equipment
Catalogue category	Washers, Washing Equipment
WEIGHT	From 19,500kg to 31,950kg
INSTALLED POWER	From 90kW to 160kW
SIZE RANGE	From 50mtph to 175mtph
INPUT FLOW RATE	0.19-2.8m3/min
PRODUCT OUTPUT	One type of material
