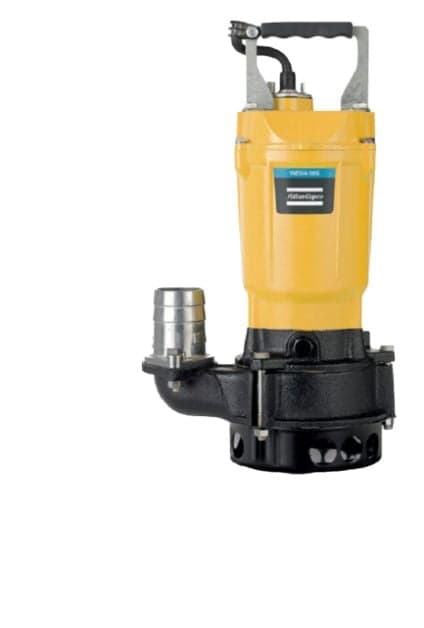

WEDA S 08N
رقم القطعة: WEDAS08N
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WEDA S 08N
المواصفات
| Model | WEDA S 08N |
|---|---|
| Series | WEDA S |
| Weight | 29 lb |
| Max. head [m] | 13,0 |
| Max. capacity [l/min] | 317 |
| Max. capacity [m3/h] | 19,0 |
| Max. solids size [mm] | 25 |
| Weight [kg] | 13 |
| Dimensions (height x width x diameter) [mm] | 416x277x241 |
| Max Head [ft] | 48.6 |
| Max Flow [US gpm] | 76.6 |
| Max Solid Handling Size [in] | 1 |
| Max head | 48.6 ft |
| Max flow | 70 gpm |
| Solid handling | 1 in |
| Cable length | 33 ft |
| Submerged depth | 16 ft |
| Impeller type | vortex |
| Impeller material | cast iron |
| Shaft seals | silicon carbide |
| Motor protection | thermal protection |
| Motor insulation class | E |
| pH range | 6.5-8 |
| Max fluid temperature | 95°F |
| Width (in) | 10.9 |
| Rating | 1 ph |
| Rated output | 1 HP |
| Power input | 1.2 kW |
| Rated current (115V) | 10.3 A |
| Rated current (230V) | 5.1 A |
| Shaft speed | 3500 r.p.m. |
| Rated input power [kW] | 0,75 |
| Max. input power [kW] | 1,20 |
| Discharge connection [in] | 2 |
| Discharge, hose and ISO-G | 2 in |
| Weight (in) | 28.7 |
| Height (in) | 16.38 |
| Diameter (lb) | 9.5 |
