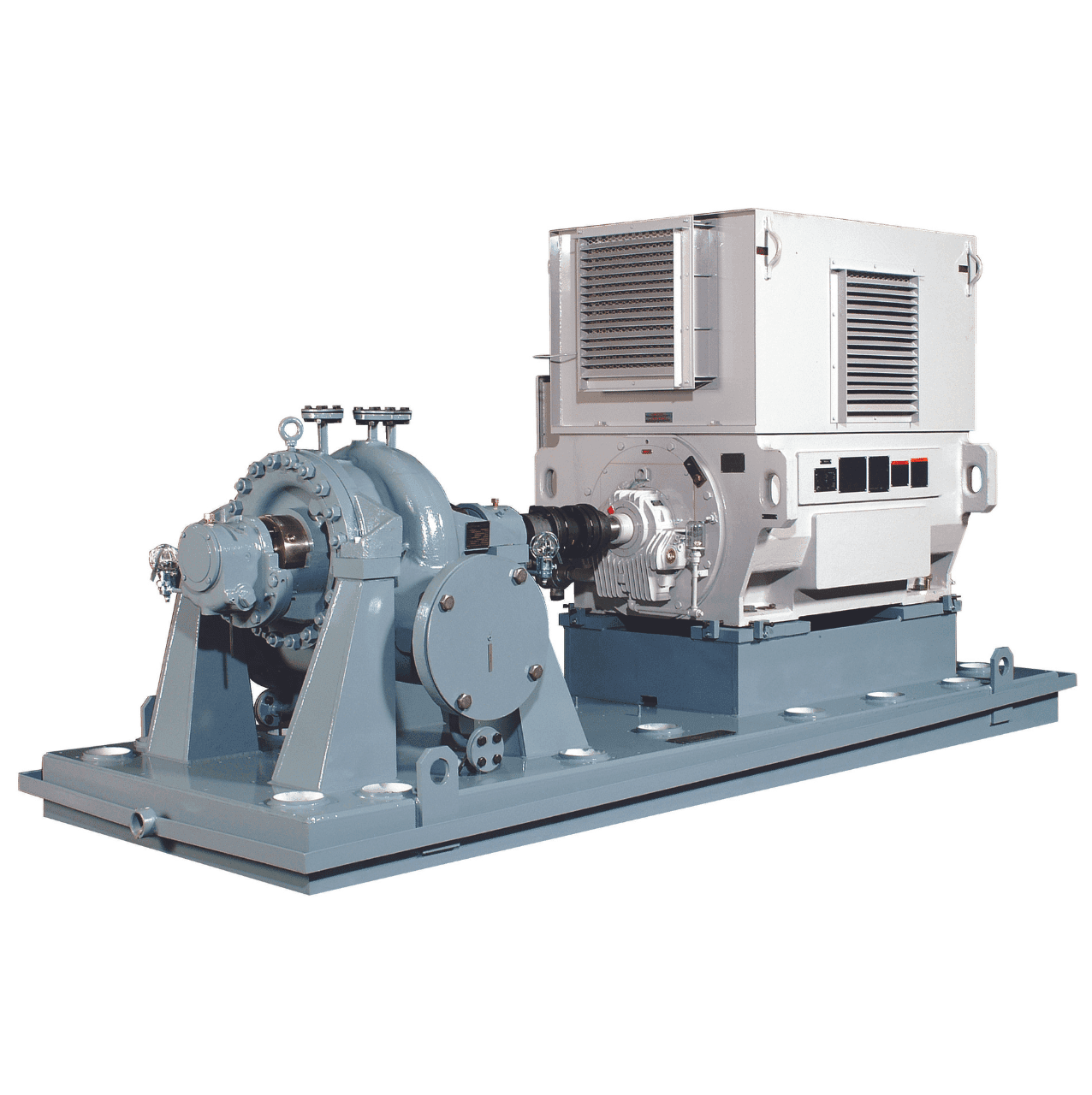

Ruhrpumpen J Line Horizontal Radially Split Pump

Name: Ruhrpumpen J Line Horizontal Radially Split Pump
Brand: Ruhrpumpen
SKU: RUHRPUMPEN-J-LINE-HORIZONTAL-RDIALLY-SPLIT-PUMP

رقم القطعة: RUHRPUMPEN-J-LINE-HORIZONTAL-RDIALLY-SPLIT-PUMP

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

OVERVIEW The type J pumps are API 610 (BB2 type) , radially split, single stage, double suction, dual volute process pumps, mounted between bearings and designed for continuous heavy-duty service on a broad range of processes and industrial applications. CHARACTERISTICS Radially split, single stage, horizontal centrifugal pump Centerline mounted Double volute casing Single end cover design Double suction, enclosed impeller Thrust compensation by double suction impeller Top-Top nozzle arrangement other Nozzle arrangements & high pressure capabilities are available on special request DESIGN FEATURES Heavy-duty process design according to API 610 latest edition (BB2 type) Ring Oil Lubrication other methods available Ball/Ball, Sleeve/Ball & Sleeve Tilting Pad bearings available to suit API or customer requirements Fan and Water cooling available Coke crusher design available for heater charge services Side-Side and side-top nozzles available High pressure capability available on some sizes Jacketed casings available for fly ash & similar service Double ended shaft available 180 degree bearing bracket CONSTRUCTION MATERIALS Materials of construction per API 610 Other materials on request. PERFORMANCE
