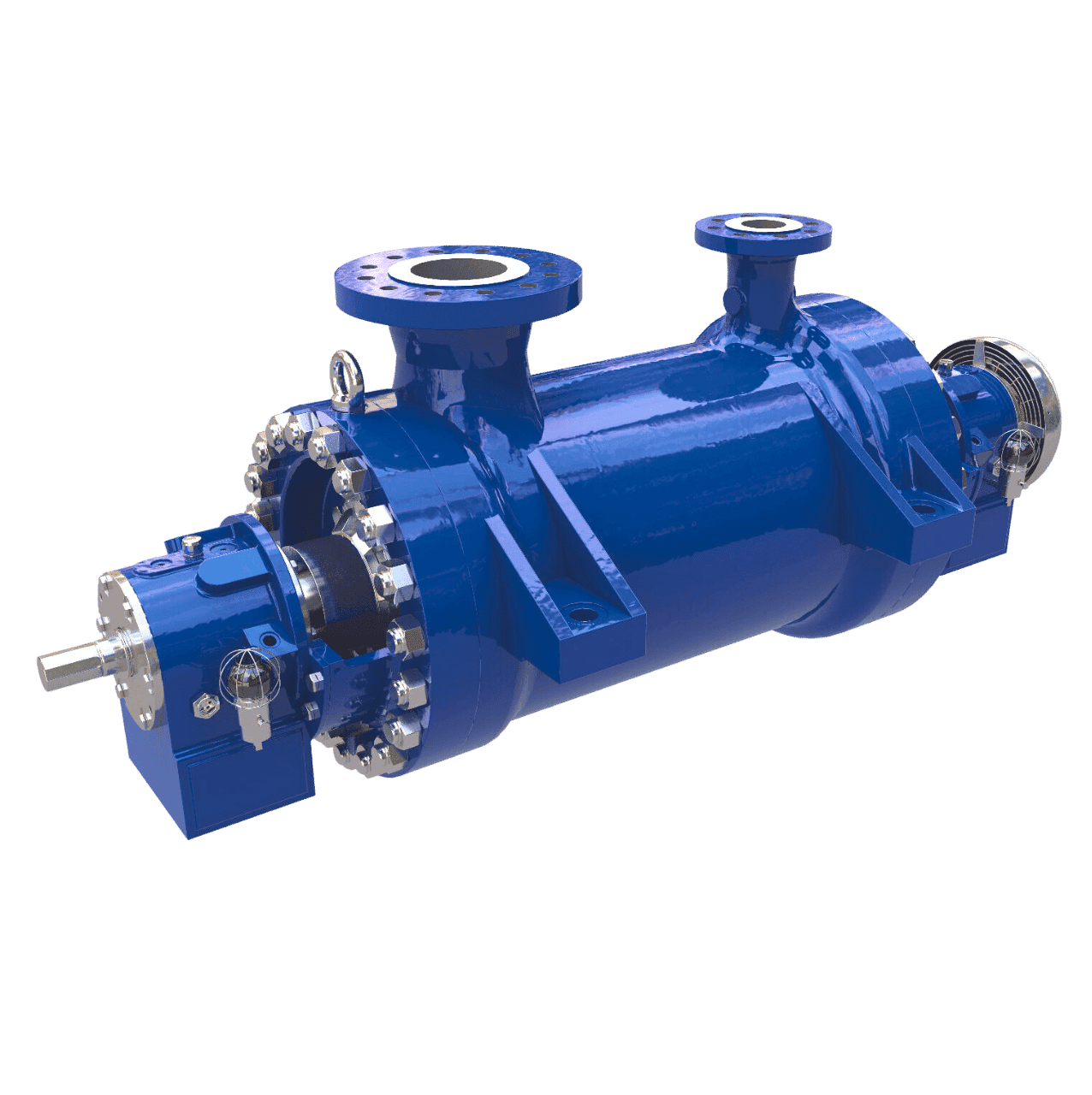

Ruhrpumpen A-Line Barrel Pumps

Ruhrpumpen

Ruhrpumpen A-Line Barrel Pumps

رقم القطعة: RUHRPUMPEN-A-LINE-BARREL-PUMPS

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

OVERVIEW The A-Line pump range includes the A, AB, ADC and ADSL pump models, making it available either with in-line or back-to-back impeller arrangements. For ease of assembly and high overhaul times the cartridge element can be supplied as a full pull-out design. The pumps meet the stringent specifications of API 610 latest edition (BB5 configuration) and reflect the many years of our experience in the design, manufacture, quality assurance and operation of process and decoking pumps under heavy duty conditions. FEATURES Heavy-duty pump casing High rotor stability Ease of maintenance Pump monitoring Precision cast impellers Bearing housing Advanced Mechanical Sealing (to API 682) Hydraulic balancing device Balance line CONSTRUCTION MATERIALS Material combinations per API 610 standard (other materials on request) DESIGN FEATURES Heavy-duty process design according to API 610 latest edition (BB5 type) Horizontal multi-stage arrangement Double-casing Radially split Barrel type Between bearings Centerline mounted Axial thrust compensation A-Line pumps are generally in compliance with ATEX and the CE Machinery Directive and are designed for heavy-duty applications. PUMP PERFORMANCE CHART DOWNLOADS A-line pumps Brochure (EN) Download
