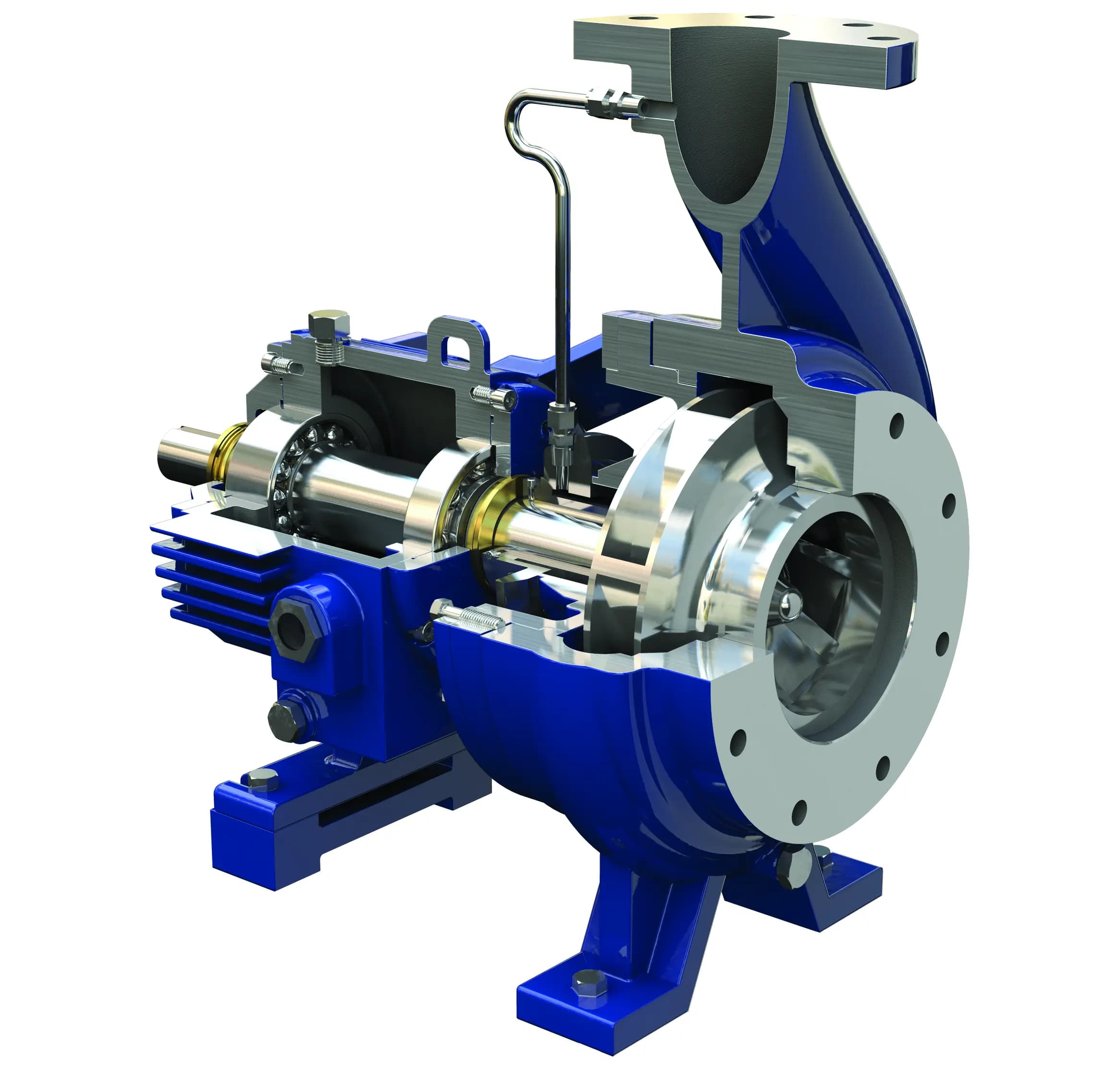

Ruhrpumpen CPP ANSI Process Pump

Ruhrpumpen

Ruhrpumpen CPP ANSI Process Pump

رقم القطعة: RUHRPUMPEN-CPP-ANSI-PROCESS-PUMP

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

OVERVIEW The CPP pump is an overhung centrifugal pump of horizontal, end suction, single stage, centerline discharge design, in accordance to the ANSI / ASME B73.1 standard. CHARACTERISTICS Single stage, horizontal centrifugal pump Radially split casing with flanged connections Horizontal end suction and top discharge on the center line Enclosed impeller Clock-wise rotation (viewed from coupling end) Foot mounted Oil lubricated Quick ship program Low flow, high head design model available, CPP-L. CONSTRUCTION MATERIALS Standard materials: All Ductile Iron. Ductile Iron / Stainless Steel (CF8M). All 316 Stainless Steel (CF8M). Also available upon request: Alloy 20, Hastelloy and other materials. 150# 300# RF or FF flanges per material allowances. Heavy duty solid SS shaft standard for minimum deflection. Zirconium. DESIGN FEATURES ANSI / ASME B73.1 standard. Back pull-out design for ease of maintenance. Standard or large bore stuffing box selection allows for use of packing. Also available: Close coupled assembly. Options for high and low temperatures. C-Frame (for proper alignment and better seal life). PUMP PERFORMANCE CHART DOWNLOADS CPP ANSI Pump Brochure (EN) Sizes and Curves Brochure (EN)
