Orbis I.S. Optical Smoke Detector – Flashing LED
رقم القطعة: ORB-OP-52028-APO
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
The Orbis I.S. Optical Smoke Detector works using the light scatter principle and is ideal for applications where slow-burning or smouldering fires are likely. Reduces false alarms Recommended for early warning of fire in most areas Improved sensitivity to black smoke Compensation for slow changes in sensitivity Algorithms for reliability of alarm
المواصفات
| General / Warranty | 10 year |
|---|---|
| Mechanical / Product length | 42mm |
| Conformance / Approvals | BVLRLPCBIECExFGDNV.GLBASEEFABOSECCCSCPRPESO (CCoE)ABSMED |
| Mechanical / Product length (imperial) | 1.65in |
| Mechanical / Weight | 75g |
| Environmental / Storage temperature (min) | -40°C |
| Environmental / Storage temperature (max) | 70°C |
| Environmental / Storage temperature | -40 to 70°C |
| Mechanical / Colour | White |
| Mechanical / Materials housing | Polycarbonate |
| Mechanical / Product diameter | 100mm |
| Environmental / IP rating Value | IP23D |
| Mechanical / Product diameter (imperial) | 3.94in |
| Environmental / Humidity (max) | 98%, RH |
| General / Applications | Dusty environments, Escape routes, Hazardous areas, Offshore platforms, Refineries, Small to medium buildings |
| Environmental / Humidity (min) | 0%, RH |
| Mechanical / Detection principle | Photo-electric light scattering. |
| Electrical / Polarity | L1 &, L2 are polarity sensitive |
| Electrical / Quiescent current | 85μA |
| Electrical / Quiescent current tested at | 24V dc |
| Performance / Chamber type | Chevron |
| Electrical / Holding voltage (min) | 5V |
| Electrical / Minimum voltage to light alarm LED | 6V |
| Electrical / Alarm reset time | 1s |
| Electrical / Alarm load | 325Ω in series with a 1.0V drop |
| Mechanical / Sensor configuration | Chamber with surface-mount infrared emmiter and prism., Solid state integrated photo-diode and amplifier. |
| Electrical / Sampling frequency | Once every 4 seconds |
| Electrical / Minimum 'detector active' voltage | 12V |
| Apollo Part Number | ORB-OP-52028-APO |
| Apollo Range | orbis |
| Apollo Category | detector |
منتجات مشابهة
كواشف الدخان والحرارة ومتعددة المعاييرApollo Fire Detectors
Orbis I.S. Optical Smoke Detector
اطلب عرض سعر
Apollo Fire Detectors
Orbis Marine Optical Smoke Detector – Flashing LED
اطلب عرض سعر
Apollo Fire Detectors
Orbis Marine Optical Smoke Detector
اطلب عرض سعر
Apollo Fire Detectors
Orbis Optical Smoke Detector – Flashing LED
اطلب عرض سعر
Apollo Fire Detectors
REACH Heat Detector – Black Body
اطلب عرض سعر
Apollo Fire Detectors
Orbis Optical Smoke Detector
اطلب عرض سعر
Apollo Fire Detectors
REACH Heat Detector
اطلب عرض سعر
Apollo Fire Detectors

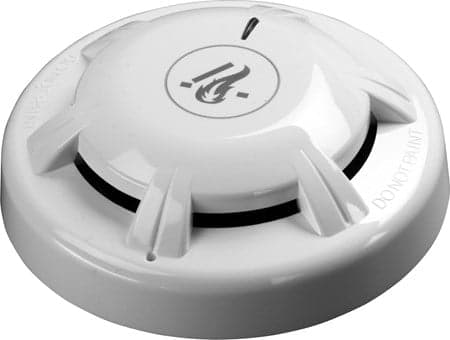

Orbis Optical Smoke Detector (Non-latching)
