Intelligent Switch Monitor Module
رقم القطعة: SA4700-100APO
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
The Intelligent Switch Monitor Module is used to monitor one or more single pole, volt free contacts connected on a single pair of cables and report status to fire control panel. EN 54-17 & EN 54-18 Certified Priority and non-priority settings Switchable time delay on input for use when monitoring flow switches Ergonomic design for ease of wiring and faster installation Suitable for semi flush or surface mounting XP95, Discovery and CoreProtocol compatible
المواصفات
| General / Warranty | 10 year |
|---|---|
| Mechanical / Product length | 60mm |
| Conformance / Approvals | FG, LPCB, SBSC, BOSEC, VdS, CPR |
| Mechanical / Product width | 150mm |
| Mechanical / Product depth | 90mm |
| Mechanical / Product length (imperial) | 2.36in |
| Mechanical / Weight | 239g |
| Mechanical / Product width (imperial) | 5.91in |
| Mechanical / Product depth (imperial) | 3.54in |
| Mechanical / Colour | White |
| Environmental / Operating temperature (max) | 70°C |
| Environmental / Operating temperature (min) | -40°C |
| Environmental / Operating temperature | -40 to 70°C |
| Conformance / Standards | EN 54-17EN 54-18 |
| Environmental / IP rating Value | IP52 |
| Electrical / Supply voltage (min) | 17V dc |
| Environmental / Operating temperature (imperial) | -40 to 158°F |
| Electrical / Supply voltage (max) | 35V dc |
| Environmental / Operating temperature (max) (imperial) | 158°F |
| Electrical / Supply voltage (Vmin-Vmax) | 17 to 35V dc |
| Environmental / Operating temperature (min) (imperial) | -40°F |
| Environmental / Humidity (max) | 0%, RH |
| Environmental / Humidity (min) | 95%, RH |
| Environmental / Humidity Note | no condensation or icing |
| Electrical / Protocol voltage | 5 to 13V peak to peak |
| Environmental / Humidity | 95% to 0% (no condensation or icing) |
| Electrical / Protocol voltage (max) | 13V |
| Electrical / Protocol voltage (min) | 5V |
| Electrical / Quiescent current | 500μA |
| Electrical / Quiescent current tested at | 24V dc |
| Apollo Part Number | SA4700-100APO |
| Apollo Range | xp95 |
| Apollo Category | interface-face-plate |
منتجات مشابهة
وحدات الواجهة والإدخال والإخراجApollo Fire Detectors
Intelligent Input/Output Module (250V AC)
اطلب عرض سعر
Apollo Fire Detectors
REACH Output Module
اطلب عرض سعر
Apollo Fire Detectors
Intelligent Input/Output Module (Twin)
اطلب عرض سعر
Apollo Fire Detectors
REACH Input Module
اطلب عرض سعر
Apollo Fire Detectors
Intelligent Input/Output Module
اطلب عرض سعر
Apollo Fire Detectors

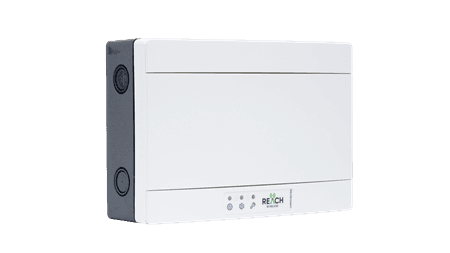

REACH XP95 Loop Interface Module
