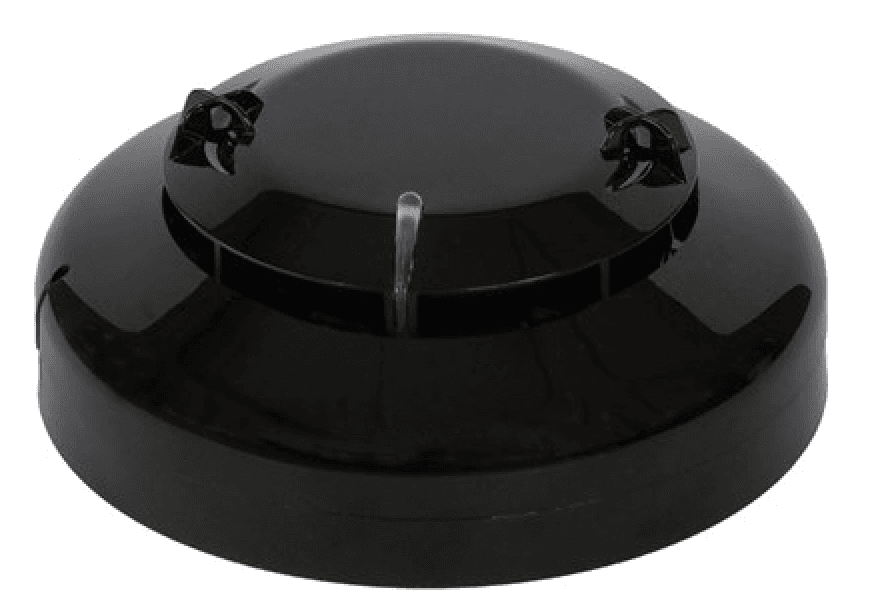

Soteria Multi-Sensor Detector (Optical/Heat) – Black

Name: Soteria Multi-Sensor Detector (Optical/Heat) – Black
Brand: Apollo Fire Detectors
SKU: SA5100-760APO

رقم القطعة: SA5100-760APO

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The Soteria Multi-Sensor Detector uses advanced optical sensing technology, PureLight, to detect smoke particles entering the chamber and is fitted with two thermistors for detecting heat. It easily discriminates against false alarm stimuli and is a great environmentally friendly alternative to ionisation detectors. Five modes of operation for ultimate fire detection and false alarm management in a wide range of applications Utilises digital Core Protocol communications providing a range of advanced fire detection features A sophisticated dynamic algorithm, providing transient rejection and compensation for drift while maintaining accurate sensitivity FasTest for quicker testing of detectors Integrated switchable isolator

المواصفات

Conformance / Approvals	CPR, LPCB, VdS, BOSEC
Mechanical / Product depth	55mm
Mechanical / Weight	100g
Mechanical / Product depth (imperial)	2.17in
Mechanical / Colour	Black
Mechanical / Product diameter	103mm
Environmental / Operating temperature (max)	55°C
Environmental / Operating temperature (min)	-10°C
Environmental / Operating temperature	-10 to 55°C
Environmental / IP rating Value	IP40
Electrical / Supply voltage (min)	17V dc
Environmental / Operating temperature (imperial)	14 to 131°F
Electrical / Supply voltage (max)	35V dc
Environmental / Operating temperature (max) (imperial)	131°F
Electrical / Supply voltage (Vmin-Vmax)	17 to 35V dc
Environmental / Operating temperature (min) (imperial)	14°F
Mechanical / Product diameter (imperial)	4.06in
Electrical / Protocol voltage	5 to 13V peak to peak
Electrical / Protocol voltage (max)	13V
Electrical / Protocol voltage (min)	5V
Electrical / Quiescent current	600μA
Apollo Part Number	SA5100-760APO
Apollo Range	soteria
Apollo Category	detector
