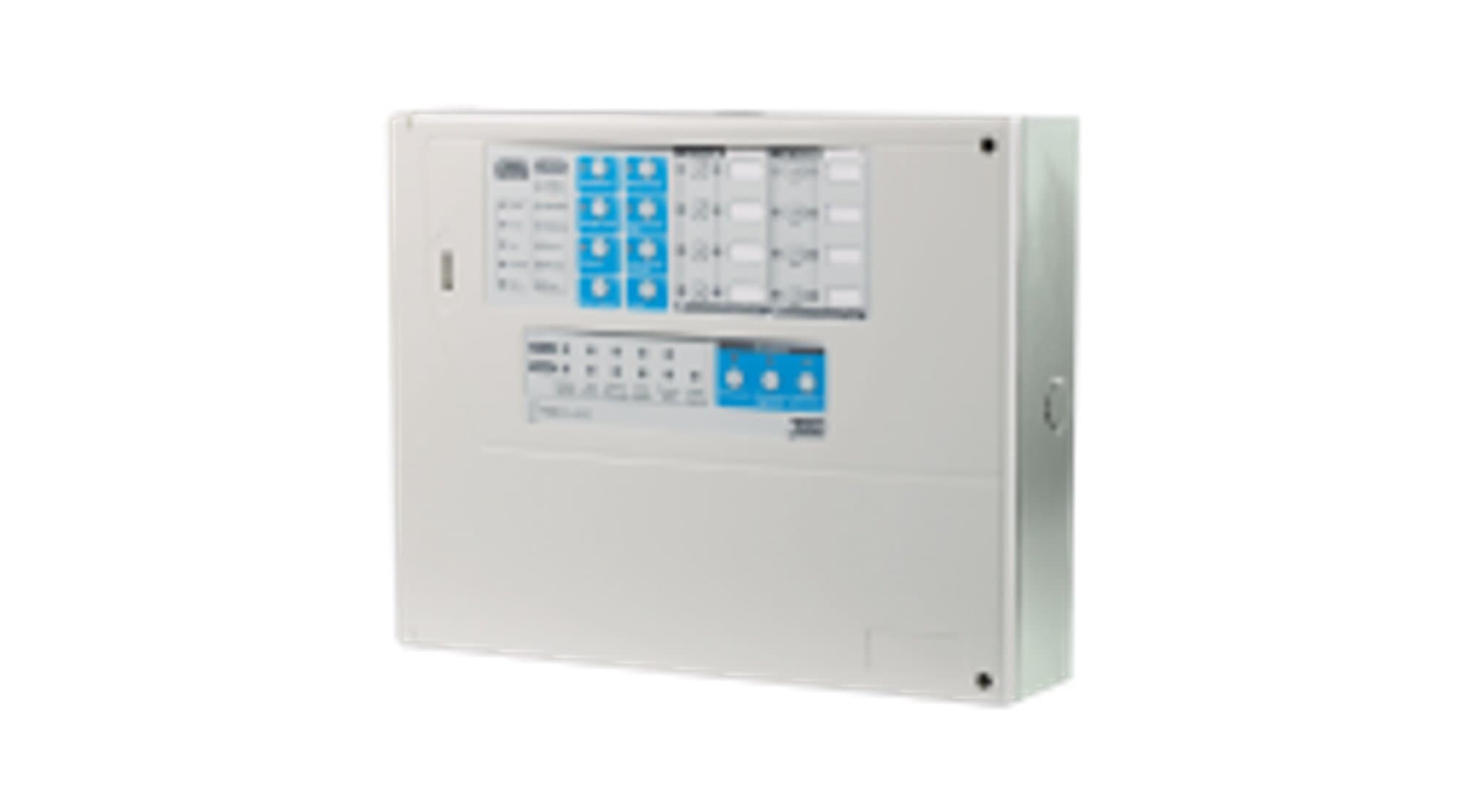

J408-8 8 zone conventional fire panel

FireClass

J408-8 8 zone conventional fire panel

رقم القطعة: J408-8

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Designed and made according to EN54 standards, the J408 is a microprocessor based control panel for small to medium applications. It has 8 zones, each supports up to 32 detectors, for a maximum of 256 detectors. Each detection zone has an alarm-repeat output for selective management in the event of fire. The control panel has supervised, silenceable alarm-outputs for self-powered sirens, piezo electric sirens, fire bells, flashers, telephone diallers,etc. This easy- to-use control panel is protected by a lockable frontplate which allows operational access to authorized personnel only. The optional Software in Windows™ environment, allows full systems provided by the control panel.

المواصفات

FireClass Order Code508.031.723.E
FireClass RangeFireClass Conventional Range
FireClass CategoryGas Extinguishing Status Units
Dimensions H x W x D mm354 x 280 x 100
Weight3,1 kg
Operating Temp-5 - +40°
Power35 W
Facia ColourRAL7035
EMC/RFIEN50130-4 e EN61000-6-3
Supply Voltage230 V ~ 50 Hz -15 / +10%
Maximum Current1 A
Low Voltage Range19,0 - 27,6 V
Suitable Batteries2 batterie 12 V/17 Ah YUASA NP 17-12 FR
Max internal resistance of battery and associated circuitry1 ohm
FireClass ModelJ408-8
FireClass Order Codes508.031.723.E (Italian); 557.201.524.E (English); 557.201.534.E (Portuguese); 557.201.537.E (Spanish); 508.031.723 (legacy order code); 557.201.524 (legacy order code)
FireClass FamilyJ400 Fire Control Panel
