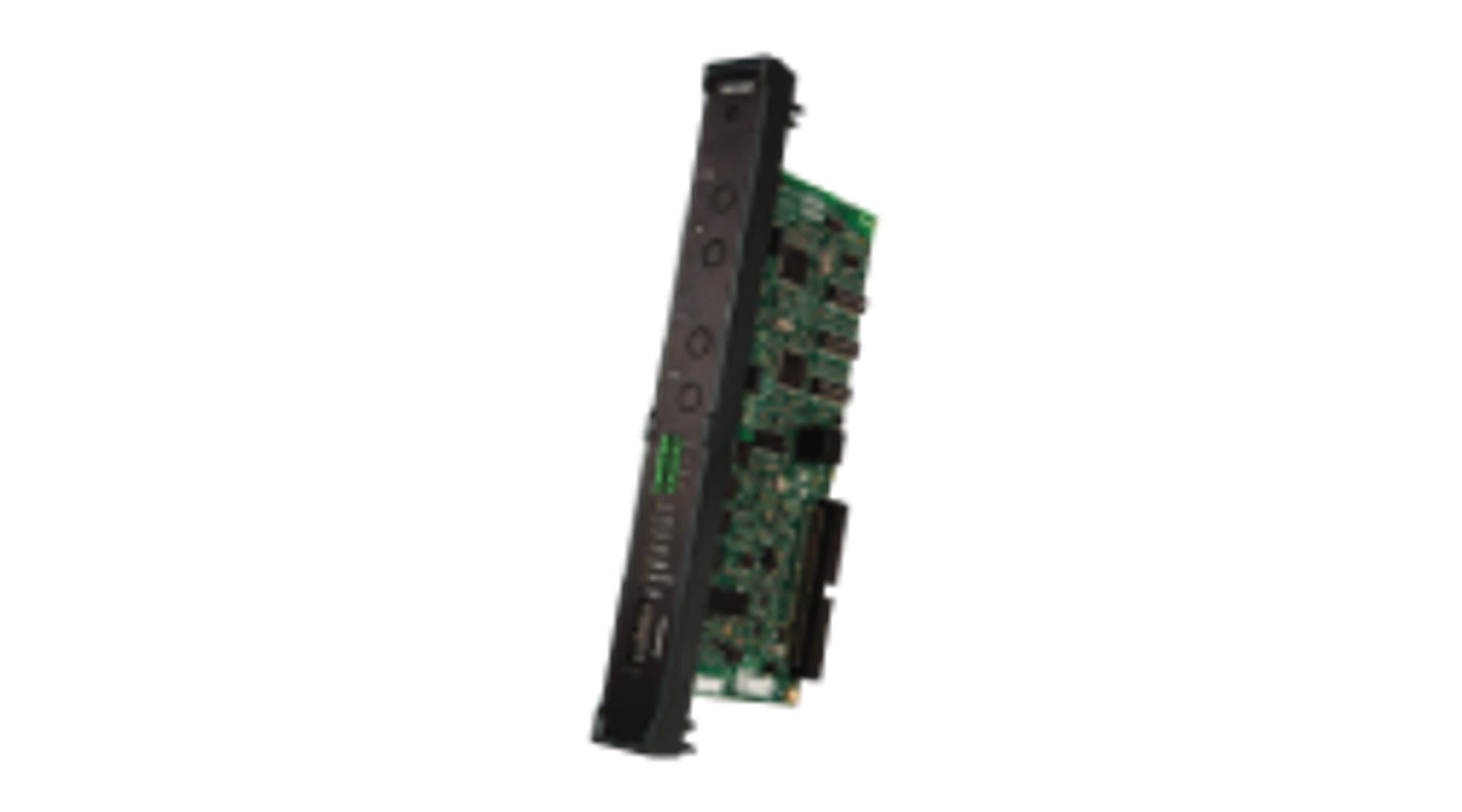

IOB800 Input/Output Expansion Board

رقم القطعة: IOB800

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The IOB800 input/output expansion module is an LPCB approved board that provides 8 opto isolated digital inputs and 8 x 24Vdc relay outputs for providing I/O expansion capabilties to the FireClass control panels for interfacing to other fire protection systems and signalling devices. The IOB800 can be driven from either the control panel or from the remote bus.

المواصفات

FireClass Order Code557.202.006
FireClass RangeFireClass Addressable Range
FireClass CategoryFC600 and FC700 Panel Accessories
Weight0.28 kg
FireClass ModelIOB800
Operating temperature-10°C to +55°C
Operating humidityUp to 95% non-condensing
Order numberProduct details
PS-1217017 Ah battery
PS-1226026 Ah battery
PS-1238038 Ah battery
Storage Temperature-20°C to +70 °C
Dimensions H x W x D27 mm x 120 mm x 152 mm
EnvironmentIndoor application only
Battery requirements: For 24 V, use a nominal batteryWith the standard RS485, the switch SW1 is in the Local Mode: Standby, Alarm • MPM801 (5 VDC power): 10 mA, 16 mA • MPM801 (24 VDC power): 19 mA, 30 mA With the isolated RS485, the switch SW1 is in the Remote Mode. • MPM801 (5 VDC power): 22 mA, 30 mA • MPM801 (24 VDC power): 37 mA, 47 mA
Electromagnetic compatibility• EN 50130-4 and E10-Rev7 for the following: - Conducted disturbances - Electrostatic discharge - Electrical fast transients - Radiated immunity - Slow high energy/surge test • EN 61000-6-3 for emissions and E10-Rev7: - Radiated emission - Conducted emission • E10-Rev7: Marine standard
FireClass FamilyFC700 Expansion Modules
