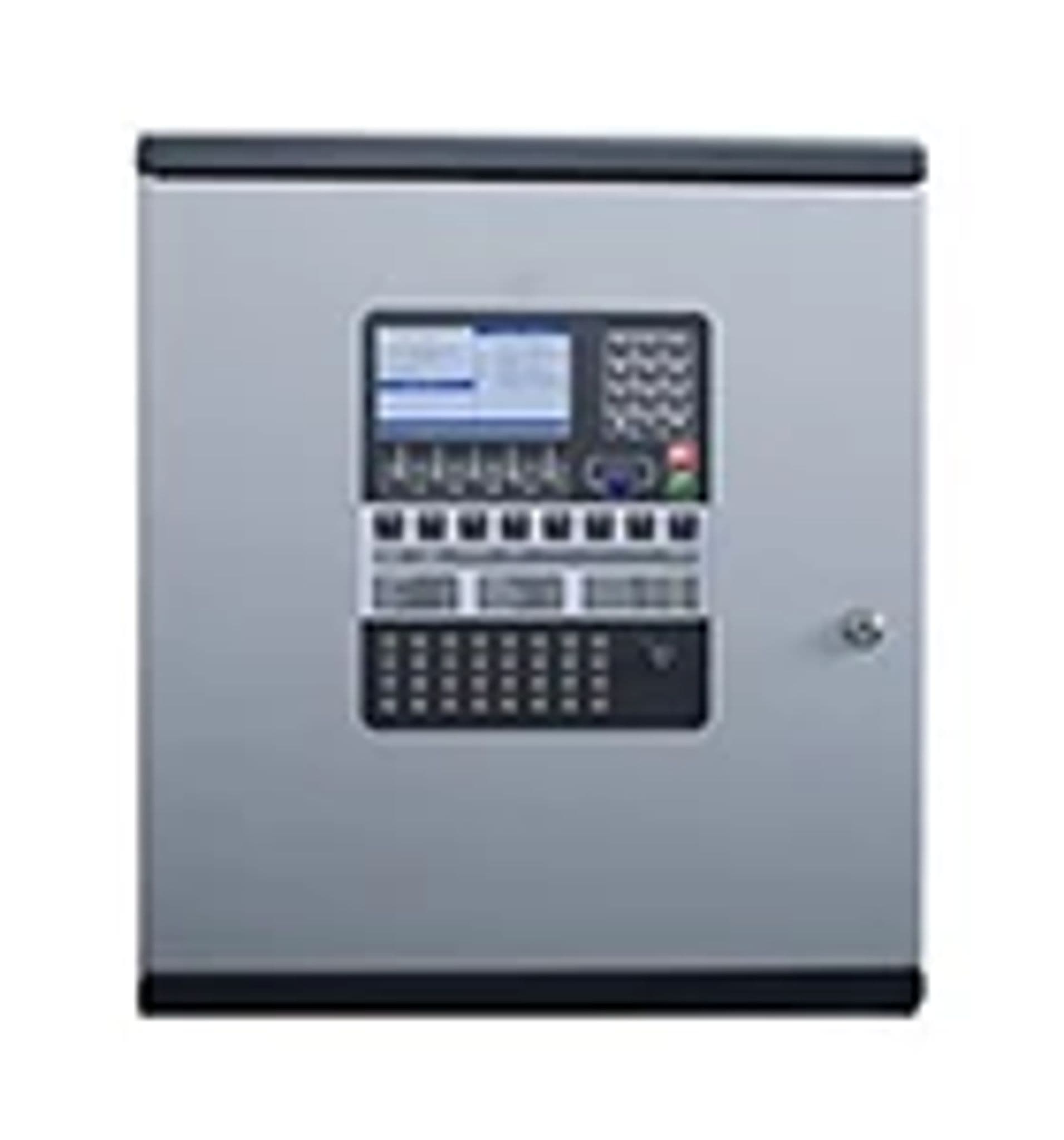

Pro415D Lite 2-4 Loop PROFILE Lite Panel Deep

ZETTLER

Pro415D Lite 2-4 Loop PROFILE Lite Panel Deep

رقم القطعة: 557.202.916

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Pro415D Lite 2-4 Loop PROFILE Lite Panel Deep

المواصفات

ZETTLER Order Code557.202.916
ZETTLER CategoryControl Panels, Repeaters & Displays
ZETTLER Device ClassPanel
ZETTLER RangeCentrali antincendio indirizzabili PROFILE Lite
Number of loops2 HP or 4 SP
Dimensions (H x W x D)480 x 410 x 140 mm 205 mm
Weight8.5 kg 9.7 kg
IP ratingIP30
HousingRAL 7016 RAL 7016 RAL 3001 for red version
Door ColourRAL 7040 RAL 7040
Operating Temperature–5°C to + 40°C
Storage temperature–20°C to +70°C
Relative humidity95% relative humidity, continuous
Addresses per loopUp to 250
Total number of addresses500
Number of zonal LEDs32
Number of zones supported240 480 x 410 x
(non-condensing) — EMC/RFIEN 50130-4, EN 61000-6-3
(non-condensing) — Supply voltage230 V AC, 50/60 Hz
(non-condensing) — Input current1.6A
(non-condensing) — Battery capacity17 Ah 38 Ah
(non-condensing) — Please see next page37
