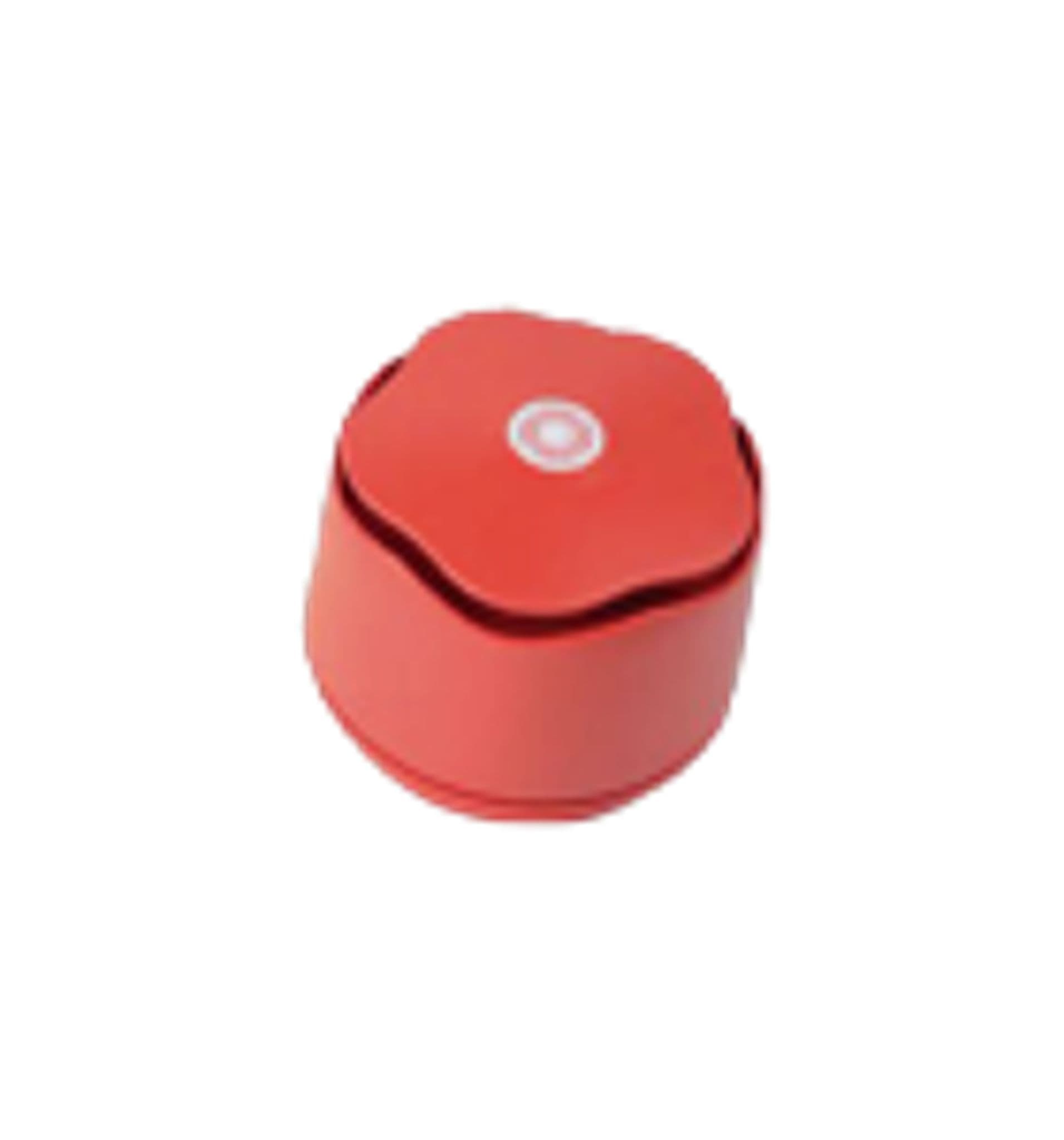

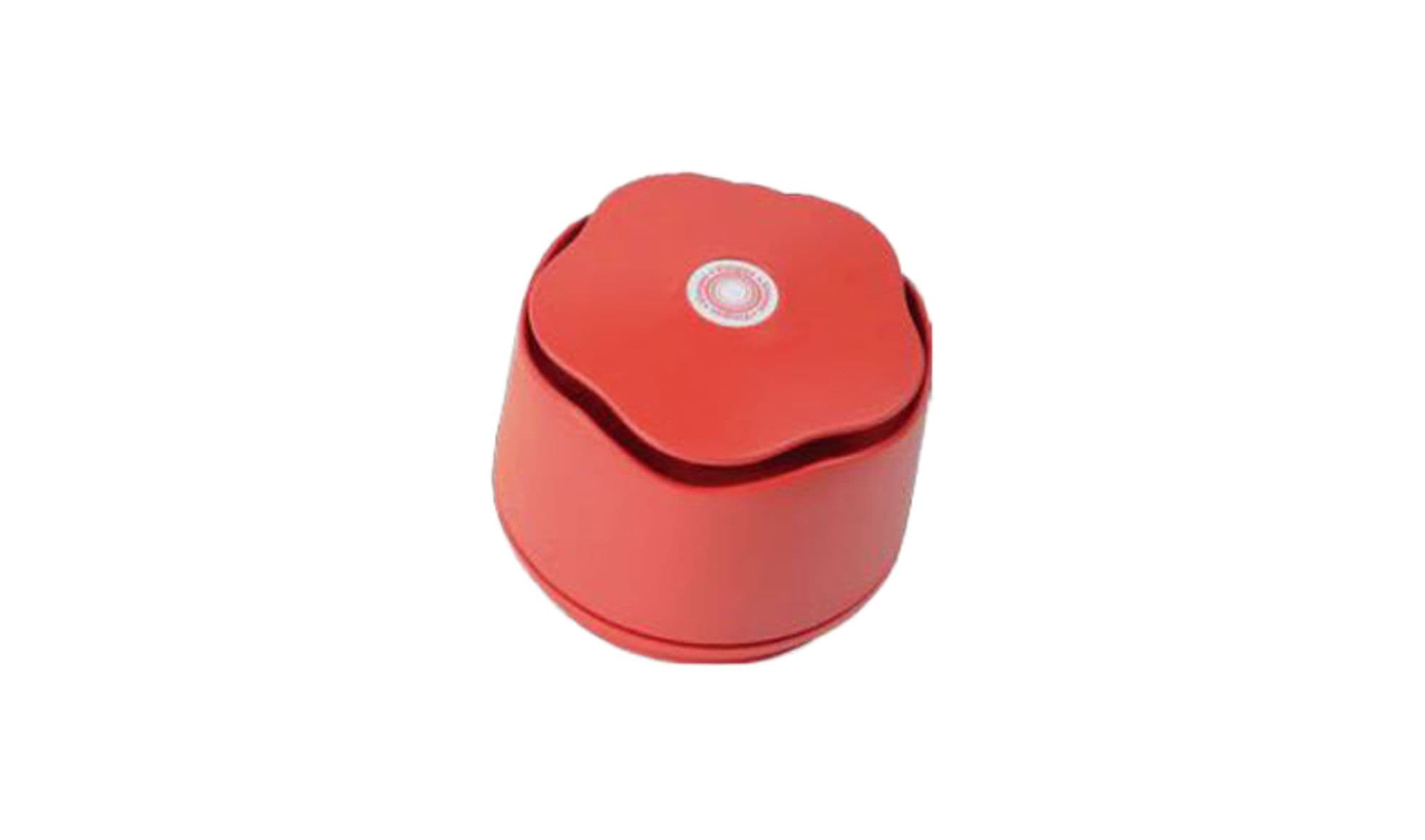

BE-W IS28 Mark 6 Banshee Sounder

ZETTLER

BE-W IS28 Mark 6 Banshee Sounder

رقم القطعة: ZT-576.501.053

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

With 32 high and low frequency tones to suit a wide range of applications. ATEX and IECEx approved for use in Zones 0 and 20 (Gas and Dust) and is suitable for use in zones 1, 2, 21 and 22. The product should only be connected to the monitored driving circuit via an certified galvanic isolator or zener barrier. Suitable for all non-mining applications. Power Supply: 24 Vdc Typical Current: 15mA (high frequency tones), 11mA (low frequency tones) @24Vdc via a 28V 300Ω barrier) Output @ 1m: 98 dBA (high frequency) 90 dBA (low frequency) Installation: Connection must be made via a certified galvanic isolator or zener barrier with output parameters not exceeding U = 28V, li = 93mA, Pi- 0.65 W, Li = 0, Ci = 0. The output current of the barrier must be limited by resistor ‘R‘ such that li = Ui/R. Suitable for Zones: 0, 1, 2, 20, 21 and 22 Operating Temp: -40 to +70°C IP Rating / Material: IP66 / ABS (When installed with Fixing Clip) Weight: 262g

المواصفات

ZETTLER Order Code576.501.053
ZETTLER CategorySounders, Sounder-VADs & Beacons
ZETTLER ModelBE-W
ZETTLER RangeBanshee Sounder
Weight262g
IP ratingIP66 (when installed with fixing clip)
Operating Temperature-40 +70°C
Supply voltage24vDC
Operating Temp-40 to +70°C
Dimensions (W x H x D)92 x 92 x 95 mm
MaterialABS
Power Supply24 Vdc Intrinsic Safety EN 60079-0:2012 + A11:2013,
Typical Current15mA (high frequency tones), Approvals: General Requirements 11mA (low frequency tones) EN 60079-11:2011, Intrinsic Safety @24Vdc via a 28V 300Ω barrier) ‘i’
Output @ 1m98 dBA (high frequency) Group II, Category I, Explosive 90 dBA (low frequency) Atmosphere G (Gas) and D
InstallationConnection must be made via a (Dust) certified galvanic isolator or zener IECEx ITS17.0011X barrier with output parameters not ATEX ITS 17ATEX201739X exceeding U = 28V, li = 93mA, Pi- Ex ia IIC T5 Ga 0.65 W, Li = 0, Ci = 0. The output Ex ia IIIC T100degC Da IP66 current of the barrier must be ATEX - II IGD Ex ia T5 Ga limited by resistor ‘R‘ such that li = Ui/R.
Suitable for Zones0, 1, 2, 20, 21 and 22
IP Rating / MaterialIP66 / ABS (When installed with Fixing Clip)
Typical Current input15 mA (high frequency tones), 11 mA
