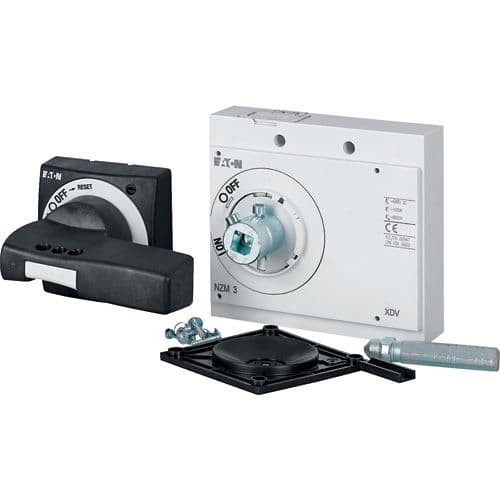

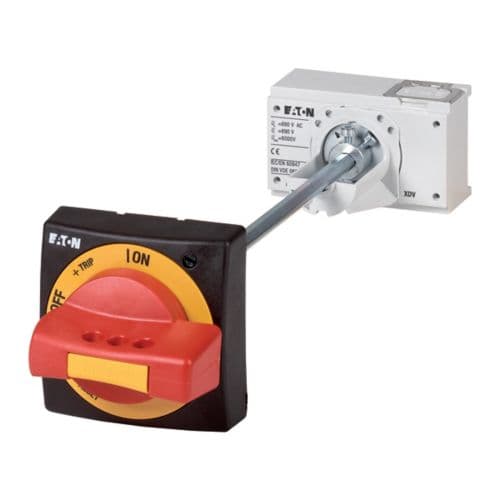

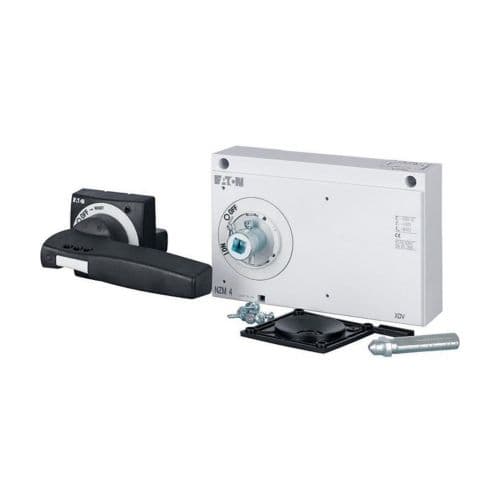

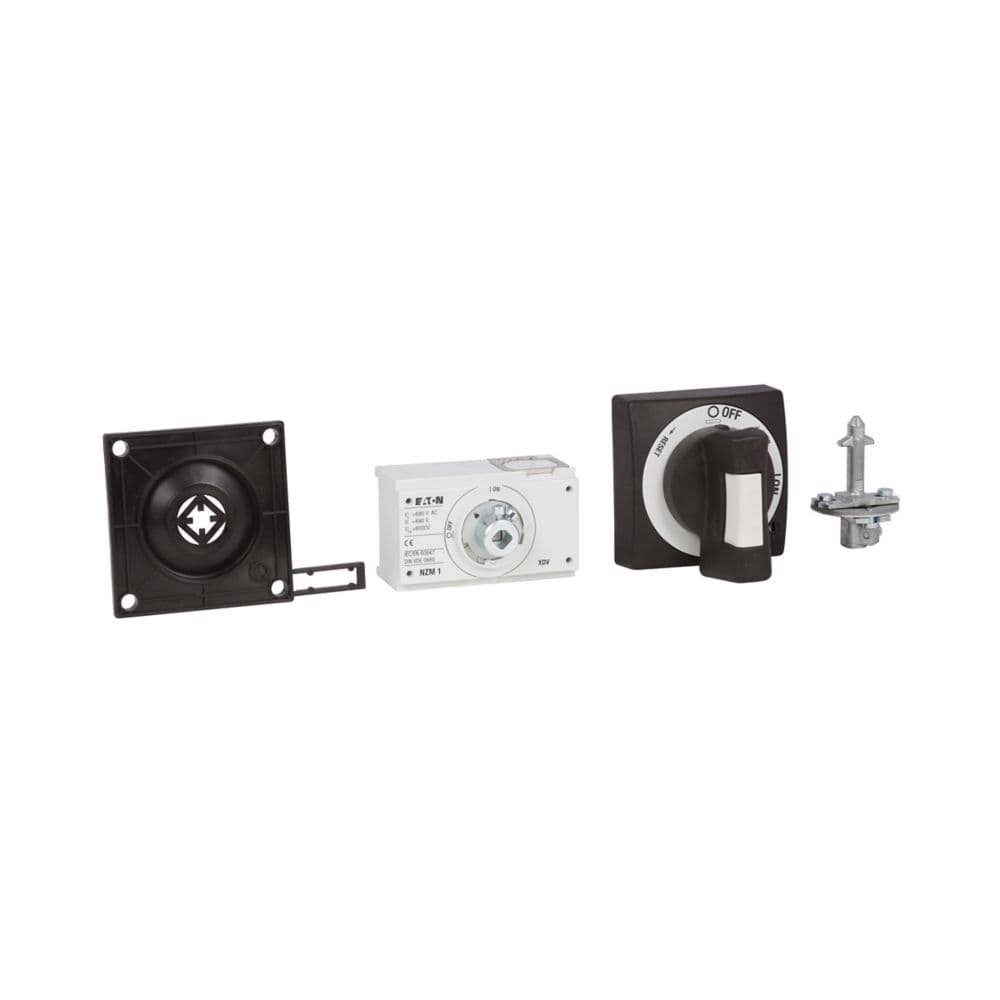

Eaton Moeller series NZM operating element NA

Eaton

Eaton Moeller series NZM operating element NA

رقم القطعة: 100675

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element NA

المواصفات

Special featuresComplete including rotary drive and coupling partsCannot be combined with mechanical interlockFor extremely narrow fittingsWith special short extension shaftCannot be combined with NZM...-XDZ additional handleExternal warning plate/designation label can be clipped on.Door coupling rotary handle for operating the switch through a closed control panel door
Product NameEaton Moeller series NZM operating element NA
Catalog Number100675
Model CodeNZM1-XTVDV-0-NA
EAN4015081005758
Product Length/Depth75 mm
Product Height190 mm
Product Width90 mm
Product Weight0.51 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsIEC60947 UL listed CSA certified CSA (Class No. 1437-01) UL489 UL (Category Control Number DIHS) CE marking CSA (File No. 22086) UL (File No. E140305) CSA-C22.2 No. 5-09
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.100675.html
Suitable forPower circuit breaker Switch disconnector
Used withNZM1, N(S)1
FeaturesLockable Standard: black / gray
TypeAccessoryDoor coupling rotary handle
Fitted with:Padlock
FrameNZM1
