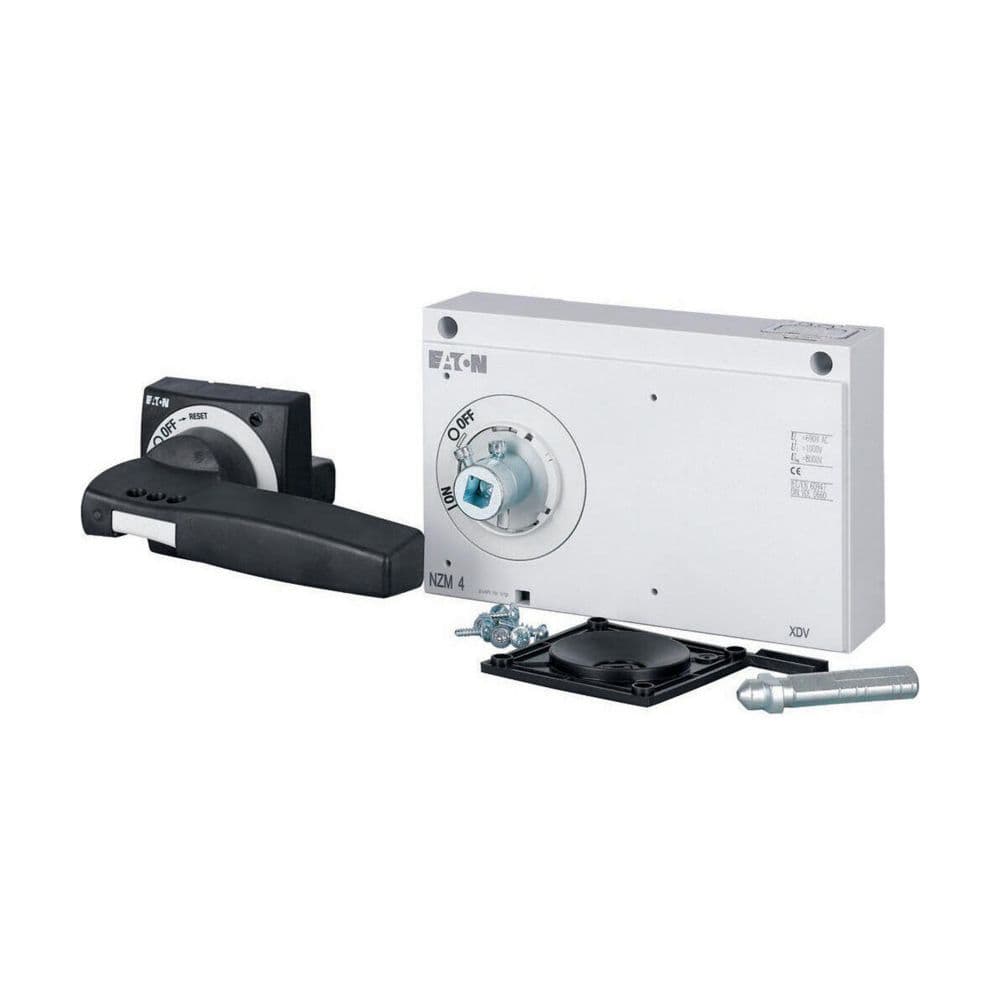

Eaton Moeller series NZM operating element NA

Eaton

Eaton Moeller series NZM operating element NA

رقم القطعة: 100678

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element NA

المواصفات

Special featuresComplete including rotary drive and coupling partsCannot be combined with mechanical interlockFor extremely narrow fittingsWith special short extension shaftCannot be combined with NZM...-XDZ additional handleExternal warning plate/designation label can be clipped on.Door coupling rotary handle for operating the switch through a closed control panel door
Product NameEaton Moeller series NZM operating element NA
Catalog Number100678
Model CodeNZM4-XTVDV-0-NA
EAN4015081005789
Product Length/Depth230 mm
Product Height130 mm
Product Width230 mm
Product Weight1.78 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsCE marking UL (Category Control Number DIHS) UL489 IEC60947 CSA certified CSA (Class No. 1437-01) UL listed CSA (File No. 22086) UL (File No. E140305) CSA-C22.2 No. 5-09
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.100678.html
Suitable forPower circuit breaker Switch disconnector
Used withNZM4, N(S)4
FeaturesStandard: black / gray Lockable
TypeDoor coupling rotary handle
Fitted with:Padlock
FrameNZM4
