Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 102126

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number102126

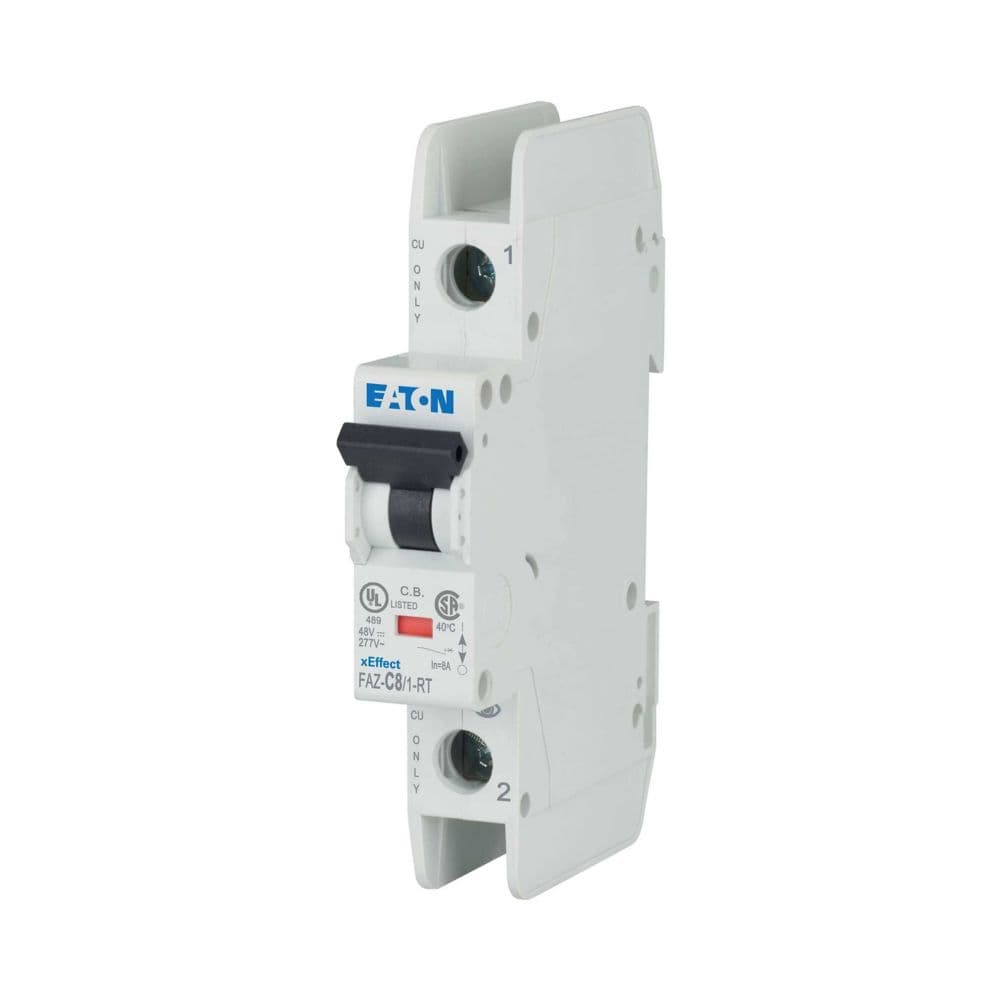

Model CodeFAZ-C8/1-RT
EAN4015081020027
Product Length/Depth105 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.122 kg
CompliancesRoHS conform
CertificationsUL (Category Control Number DIVQ) CE marking Specially designed for North America, suitable as BCPD North America (UL listed, CSA certified) CSA-C22.2 No. 5-09 CSA (Class No. 1432-01) CSA (File No. 204453) IEC/EN 60947-2 UL (File No. E235139) IEC 60947-2 UL 489 UL 489, CSA C22.2 No. 5 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.102126.html
Used withFAZ-RT Miniature circuit breaker
FeaturesAdditional equipment possible
Current limiting class3
