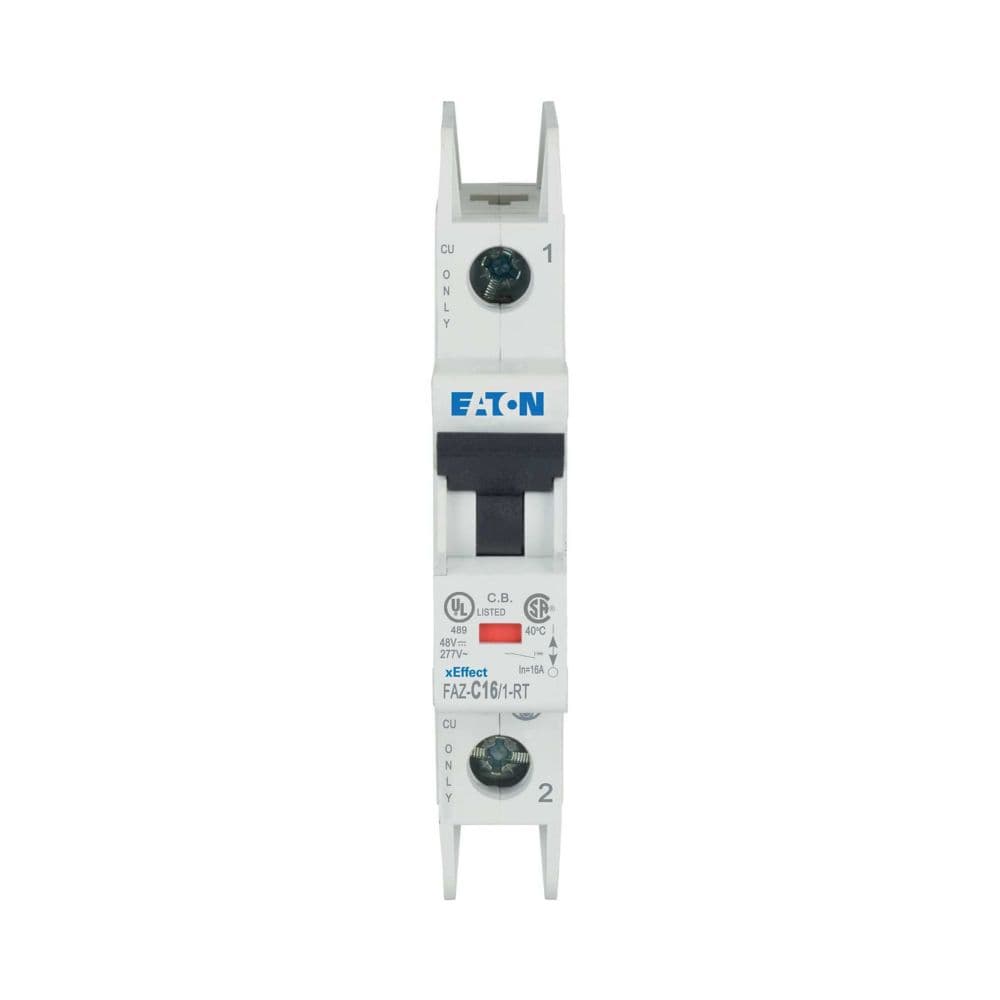

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 102130

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number102130
Model CodeFAZ-C16/1-RT
EAN4015081020065
Product Length/Depth105 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.122 kg
CompliancesRoHS conform
CertificationsCSA (File No. 204453) IEC/EN 60947-2 UL 489, CSA C22.2 No. 5 CSA-C22.2 No. 5-09 CE marking UL (File No. E235139) IEC 60947-2 UL 489 North America (UL listed, CSA certified) CSA (Class No. 1432-01) UL (Category Control Number DIVQ) Specially designed for North America, suitable as BCPD EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.102130.html
Used withMiniature circuit breaker FAZ-RT
FeaturesAdditional equipment possible
Current limiting class3
