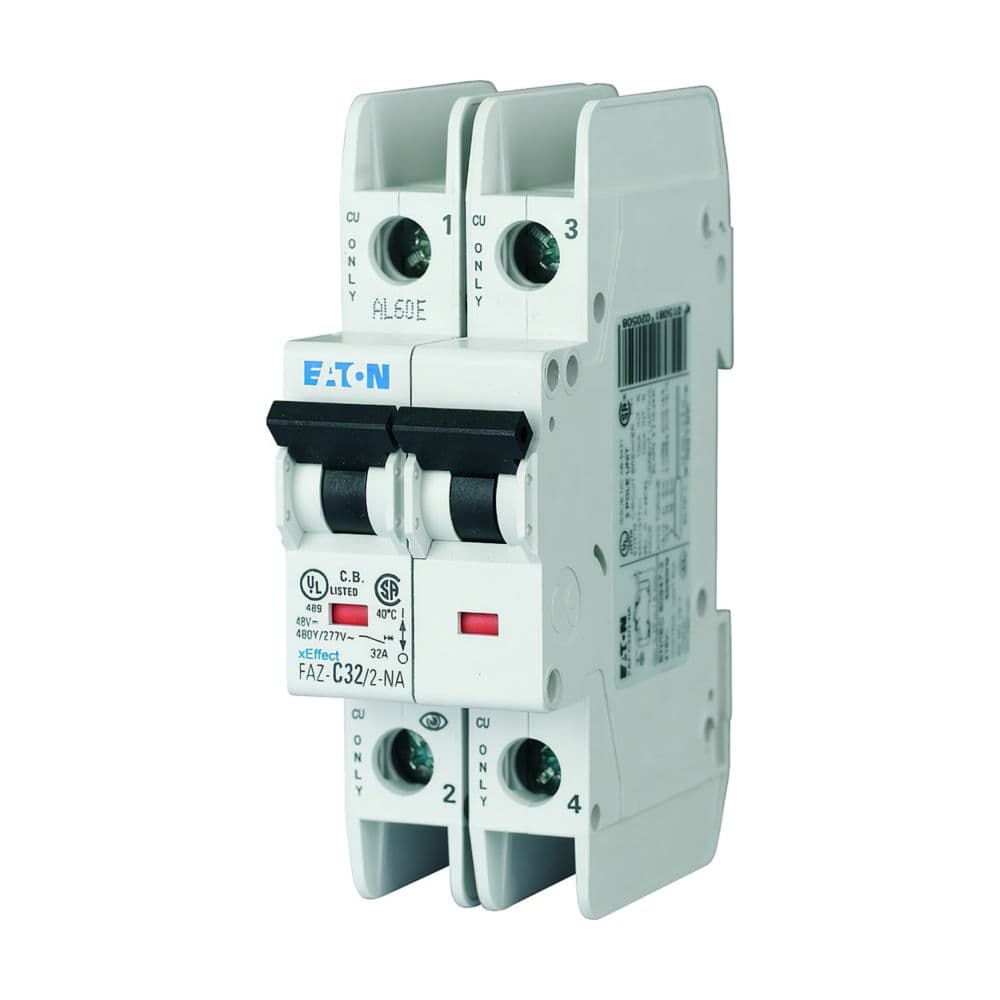

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 132697

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number132697
Model CodeFAZ-B4/2-NA
EAN4015081296460
Product Length/Depth105 mm
Product Height75.5 mm
Product Width35.4 mm
Product Weight0.246 kg
CompliancesRoHS conform
CertificationsIEC 60947-2 North America (UL listed, CSA certified) CSA (File No. 204453) CE marking CSA (Class No. 1432-01) IEC/EN 60947-2 Specially designed for North America, suitable as BCPD UL 489, CSA C22.2 No. 5 CSA-C22.2 No. 5-09 UL (Category Control Number DIVQ) UL (File No. E235139) UL 489 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.132697.html
Used withFAZ-NA Miniature circuit breaker
FeaturesAdditional equipment possible
Current limiting class3
