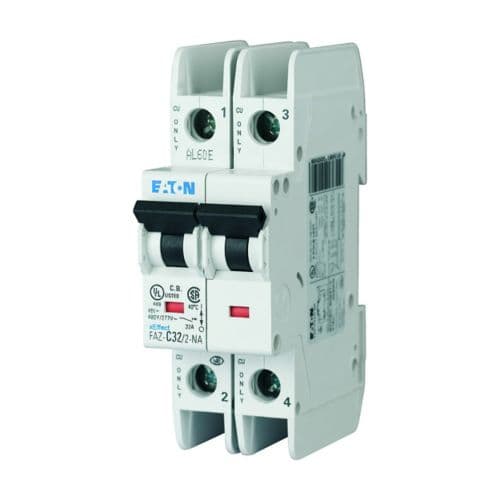

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 132699

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number132699
Model CodeFAZ-B6/2-NA
EAN4015081296484
Product Length/Depth105 mm
Product Height75.5 mm
Product Width35.4 mm
Product Weight0.24 kg
CompliancesRoHS conform
CertificationsNorth America (UL listed, CSA certified) UL (Category Control Number DIVQ) Specially designed for North America, suitable as BCPD CSA-C22.2 No. 5-09 IEC/EN 60947-2 IEC 60947-2 UL 489 CE marking CSA (Class No. 1432-01) UL 489, CSA C22.2 No. 5 CSA (File No. 204453) UL (File No. E235139) EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.132699.html
Used withMiniature circuit breaker FAZ-NA
FeaturesAdditional equipment possible
Current limiting class3
