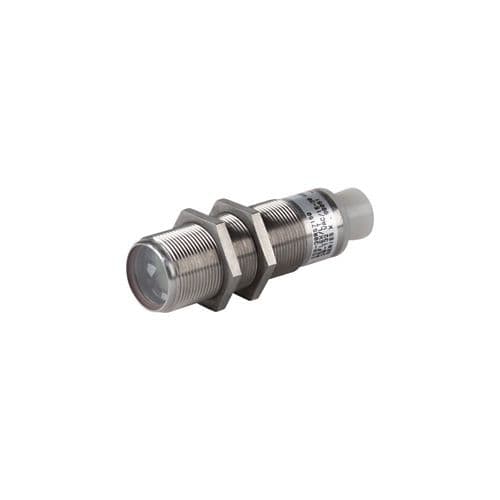

Eaton Moeller® series E58 Diffuse reflective sensor

Name: Eaton Moeller® series E58 Diffuse reflective sensor
Brand: Eaton
SKU: 135678

رقم القطعة: 135678

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E58 Diffuse reflective sensor

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-40 °C
Functions	Short-circuit protection Protection against polarity reversal Reflected-light beam Protection against wire breakage
Product Name	Eaton Moeller® series E58 Diffuse reflective sensor
Catalog Number	135678
Model Code	E58-30DP150-HL
EAN	4015081324712
Product Length/Depth	38.1 mm
Product Height	38.1 mm
Product Width	38.1 mm
Product Weight	0.23 kg
Certifications	CE IEC/EN 60947-5-2 CSA File No.: UL report applies to both US and Canada UL CSA-C22.2 No. 14 UL Category Control No.: NRKH, NRKH7 Certified by UL for use in Canada UL 508 UL File No.: E166051
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135678.html
Type	Optical sensors
Degree of protection	NEMA 6 IP68
Enclosure material	Metal
Fitted with:	Background suppression (Perfect Prox)
Shock resistance	100 g, Mechanical, Shock duration 3 ms
Electric connection type	Cable
Product category	E58 Harsh Duty Series
Connection type	4-wire 2 m connection cable
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Cable sheath material	Polyvinyl chloride (PVC)
Operating mode	Switching principle: Light switching
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Other
Interface type	Other
LED indicator	Status indication of Switching state: Red LED
Switch function type	Other
Load current	Max. 100 mA (Ie)
Laser protection class	None
Optical surface material	Glass
Output current (mA) - max	100 mA
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	150 mm
Sensor length	111 mm
Switching distance - max	165 mm
Switching voltage of OSSD at state high	30 V
Voltage rating - max	30 V
Safety type (IEC 61496-1)	1
Switching frequency	312 Hz
Sensing mode	Light switching
Switching output type	PNP/NPN
Sensor material	Stainless steel
Wavelength of the sensor	660 nm
Response time	1.6 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	2
Adjustment type	Other
Wire size	22
Operation agent-safety class	Safety class 2
Diameter sensor	30 mm
Triangulation	Background fade-out
Adjustment range - max	150 mm
Adjustment range - min	0 mm
