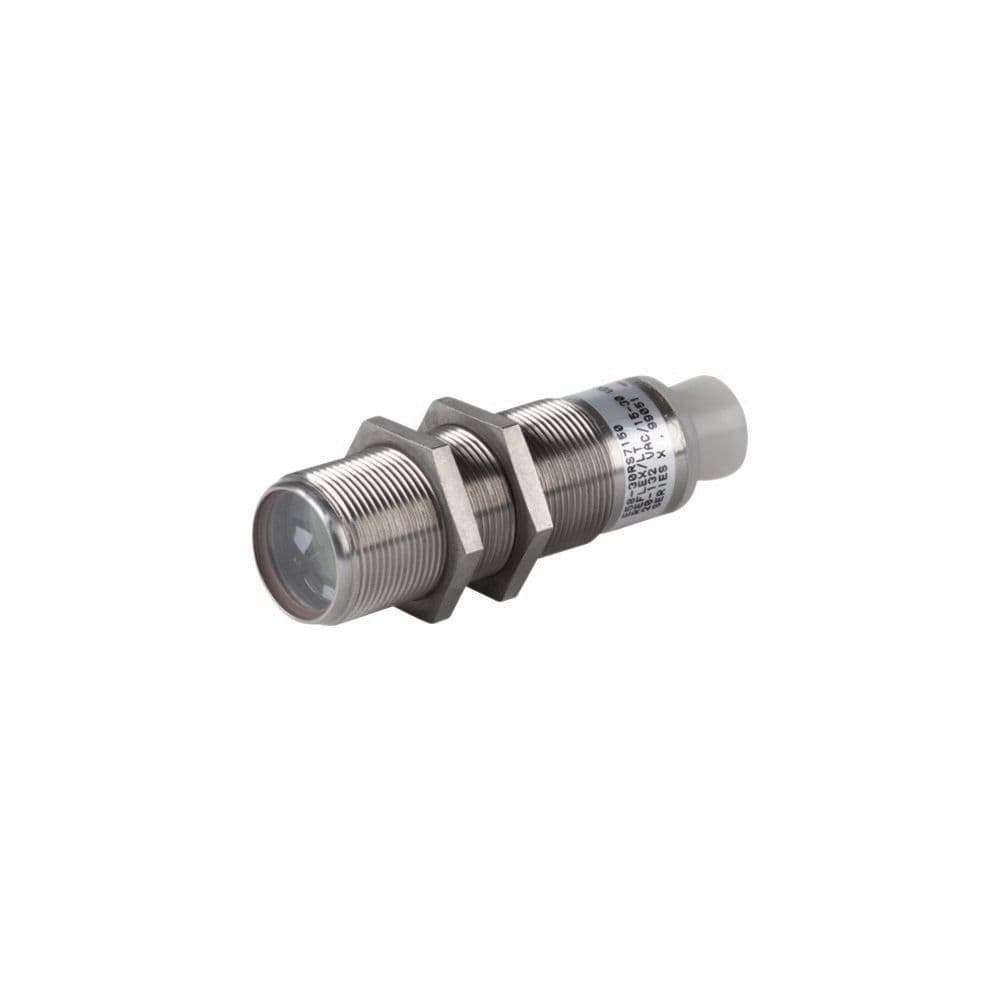

Eaton Moeller® series E58 Diffuse reflective sensor

Name: Eaton Moeller® series E58 Diffuse reflective sensor
Brand: Eaton
SKU: 135681

رقم القطعة: 135681

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E58 Diffuse reflective sensor

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-40 °C
Functions	Short-circuit protection Protection against wire breakage Reflected-light beam Protection against polarity reversal
Product Name	Eaton Moeller® series E58 Diffuse reflective sensor
Catalog Number	135681
Model Code	E58-30DPS280-HDP
EAN	4015081324743
Product Length/Depth	38.1 mm
Product Height	38.1 mm
Product Width	38.1 mm
Product Weight	0.23 kg
Certifications	CSA File No.: UL report applies to both US and Canada UL Category Control No.: NRKH, NRKH7 Certified by UL for use in Canada IEC/EN 60947-5-2 UL File No.: E166051 UL 508 CE CSA-C22.2 No. 14 UL
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135681.html
Type	Optical sensors
Degree of protection	NEMA 6 IP68
Enclosure material	Metal
Fitted with:	Background suppression (Perfect Prox)
Shock resistance	100 g, Mechanical, Shock duration 3 ms
Electric connection type	Plug-in connection
Product category	E58 Harsh Duty Series
Connection type	4-wire Plug-in connection M12 x 1
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Cable sheath material	Other
Operating mode	Switching principle: Dark switching
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Other
Interface type	Other
LED indicator	Status indication of Switching state: Red LED
Switch function type	Other
Load current	Max. 100 mA (Ie)
Laser protection class	None
Optical surface material	Glass
Output current (mA) - max	100 mA
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	280 mm
Sensor length	111 mm
Switching distance - max	318 mm
Switching voltage of OSSD at state high	30 V
Voltage rating - max	30 V
Safety type (IEC 61496-1)	1
Switching frequency	312 Hz
Sensing mode	Dark switching
Switching output type	PNP
Sensor material	Stainless steel
Wavelength of the sensor	660 nm
Response time	1.6 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	2
Adjustment type	Other
Wire size	0
Operation agent-safety class	Safety class 2
Diameter sensor	30 mm
Triangulation	Background fade-out
Adjustment range - max	280 mm
Adjustment range - min	0 mm
