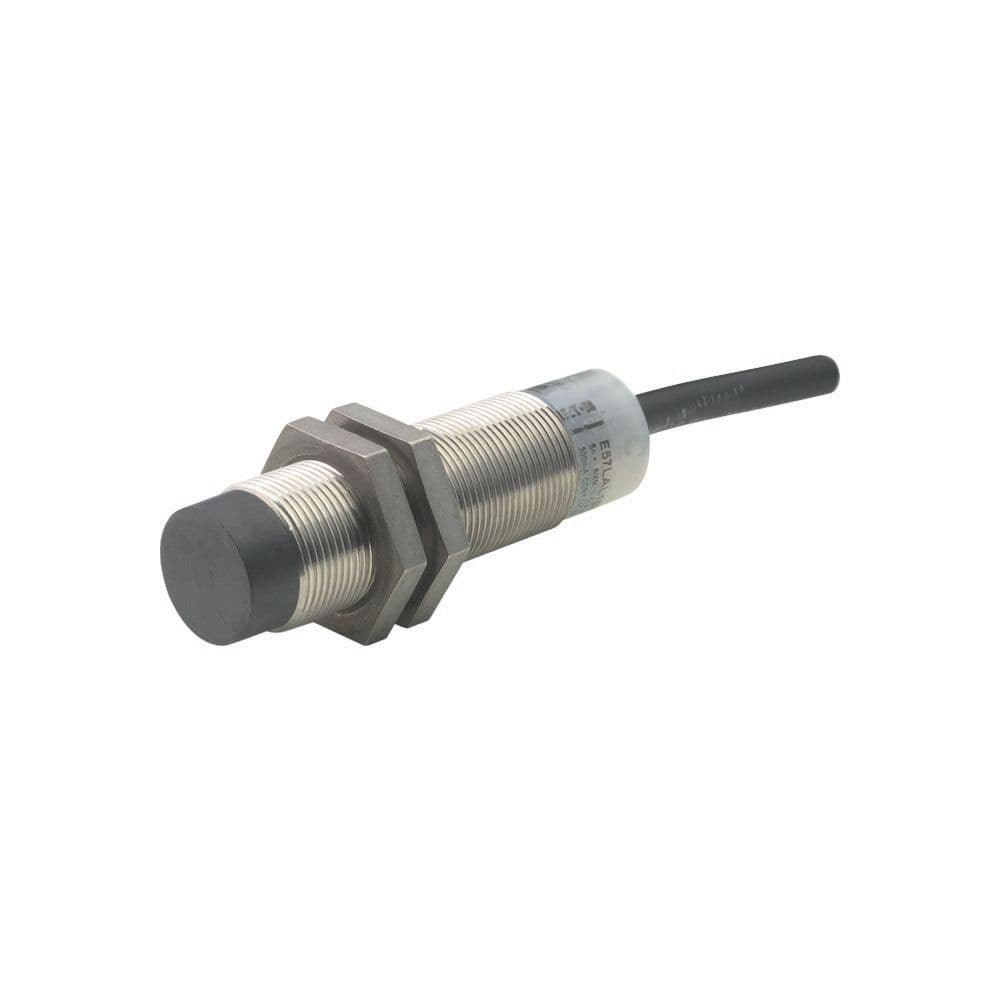

Eaton Moeller® series E57 Proximity switch

Name: Eaton Moeller® series E57 Proximity switch
Brand: Eaton
SKU: 136111

رقم القطعة: 136111

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E57 Proximity switch

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-25 °C
Number of contacts (normally open contacts)	1
Product Name	Eaton Moeller® series E57 Proximity switch
Catalog Number	136111
Model Code	E57SAL18A4E
EAN	4015081329045
Product Length/Depth	154.94 mm
Product Height	50.8 mm
Product Width	127 mm
Product Weight	0.23 kg
Certifications	CE CSA Class No.: 3211-03 UL Category Control No.: NRKH, NRKH7 UL File No.: E166051 IEC/EN 60947-5-2 UL 508 CSA UL CSA File No.: 50513 CSA-C22.2 No. 14
Source URL	https://www.eaton.com/gb/en-gb/skuPage.136111.html
Type	Inductive sensor
Degree of protection	IP67 NEMA 4X, 6, 13
Enclosure material	Metal
Mounting method	Non-flush mounting
Material	Stainless steel
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Cable
Product category	E57 Premium+ Short-Series
Connection type	2-wire 2 m connection cable
Enclosure type	Cylinder, screw-thread
Voltage type	AC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Switching state: Red LED
Switch function type	Normally open contact
Load current	1 - 250 mA (Ie, 70 °C) 1 - 500 mA (Ie, at 25 °C)
Sensor length	64 mm
Voltage rating - max	250 V
Switching frequency	20 Hz
Switching output type	Two-wire
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Rated control supply voltage (Us) at AC, 50 Hz - max	250 V
Rated control supply voltage (Us) at AC, 50 Hz - min	20 V
Rated control supply voltage (Us) at AC, 60 Hz - max	250 V
Rated control supply voltage (Us) at AC, 60 Hz - min	20 V
Diameter sensor	18 mm
Supply voltage - max	250 V
Supply voltage - min	20 V
Installation type	Not flat
Operational current (Ib) in the switched state at 24 V DC	10 A
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	3 %
Switching hysteresis of Sn	20 %
Voltage drop (Ud)	2.5 V
Residual current	0.1 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	8 mm
