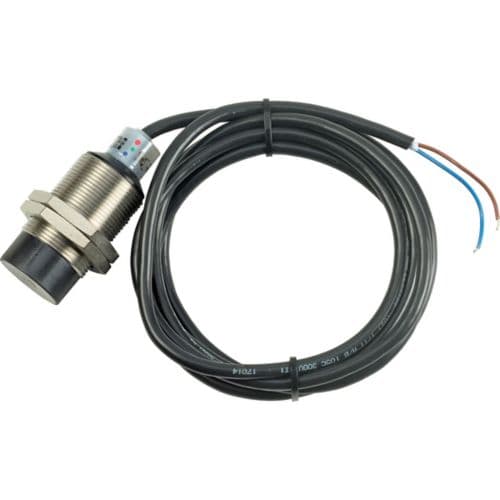

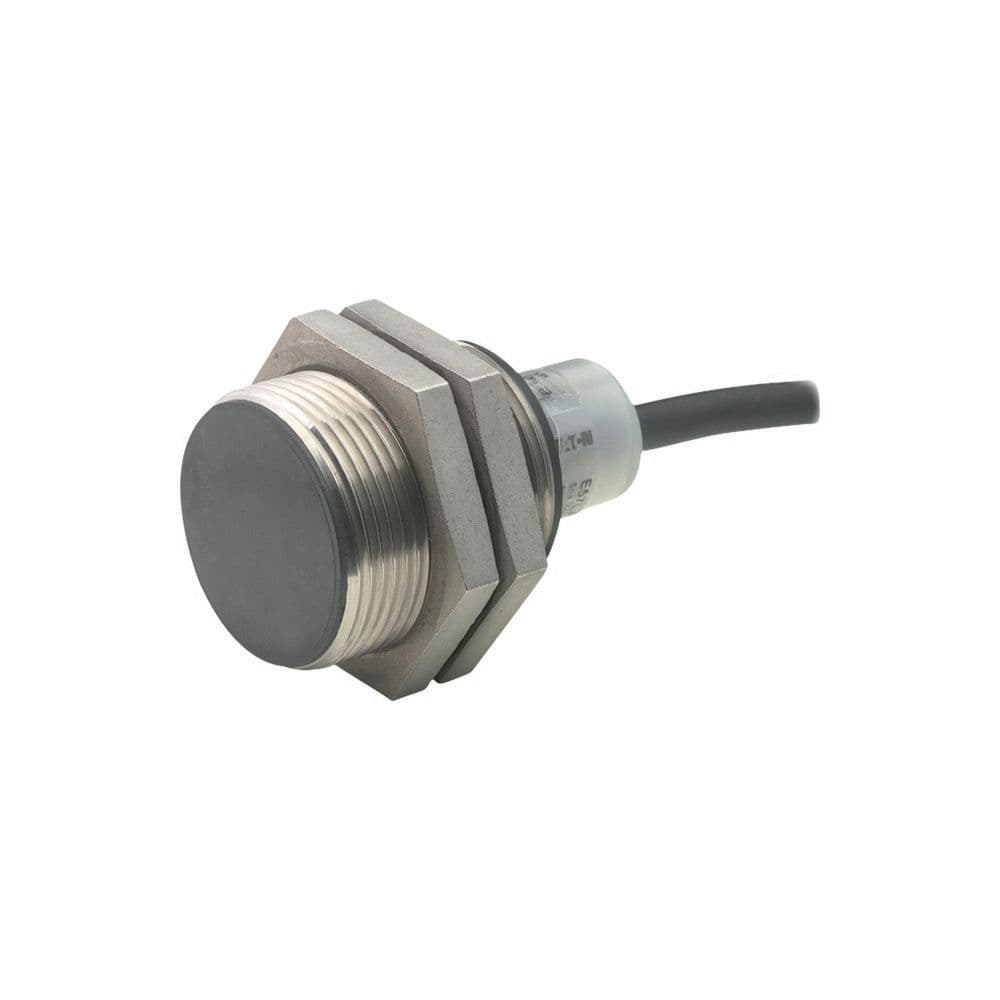

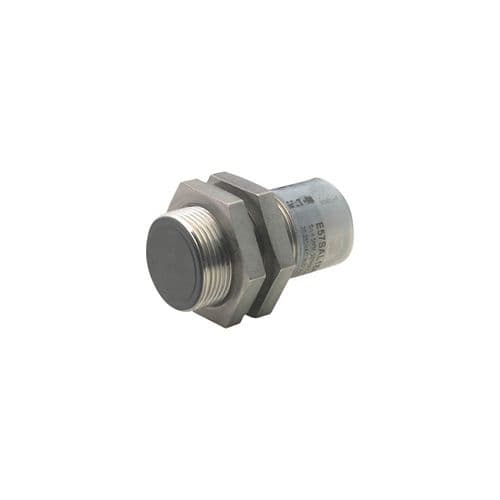

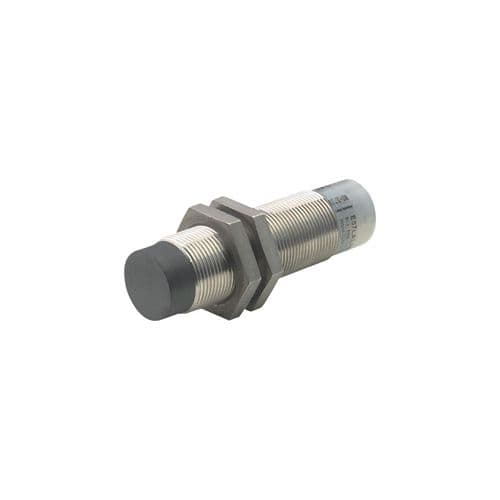

Eaton Moeller® series E57 Proximity switch

Name: Eaton Moeller® series E57 Proximity switch
Brand: Eaton
SKU: 136122

رقم القطعة: 136122

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E57 Proximity switch

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-25 °C
Number of contacts (normally open contacts)	1
Product Name	Eaton Moeller® series E57 Proximity switch
Catalog Number	136122
Model Code	E57SAL30A2
EAN	4015081329151
Product Length/Depth	158.75 mm
Product Height	50.8 mm
Product Width	133.35 mm
Product Weight	0.32 kg
Certifications	CSA CSA Class No.: 3211-03 UL File No.: E166051 CE CSA-C22.2 No. 14 CSA File No.: 50513 IEC/EN 60947-5-2 UL Category Control No.: NRKH, NRKH7 UL 508 UL
Source URL	https://www.eaton.com/gb/en-gb/skuPage.136122.html
Type	Inductive sensor
Degree of protection	IP67 NEMA 4X, 6, 13
Enclosure material	Metal
Mounting method	Flush mounting
Material	Stainless steel
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Cable
Product category	E57 Premium+ Short-Series
Connection type	2 m connection cable 2-wire
Enclosure type	Cylinder, screw-thread
Voltage type	AC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Switching state: Red LED
Switch function type	Normally open contact
Load current	5 - 250 mA (Ie, at 25 °C) 5 - 200 mA (Ie, 70 °C)
Sensor length	40 mm
Voltage rating - max	250 V
Switching frequency	60 Hz
Switching output type	PNP/NPN
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Rated control supply voltage (Us) at AC, 50 Hz - max	250 V
Rated control supply voltage (Us) at AC, 50 Hz - min	20 V
Rated control supply voltage (Us) at AC, 60 Hz - max	250 V
Rated control supply voltage (Us) at AC, 60 Hz - min	20 V
Diameter sensor	30 mm
Supply voltage - max	250 V
Supply voltage - min	20 V
Installation type	Concise
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	3 %
Switching hysteresis of Sn	20 %
Voltage drop (Ud)	12 V
Residual current	2 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	10 mm
