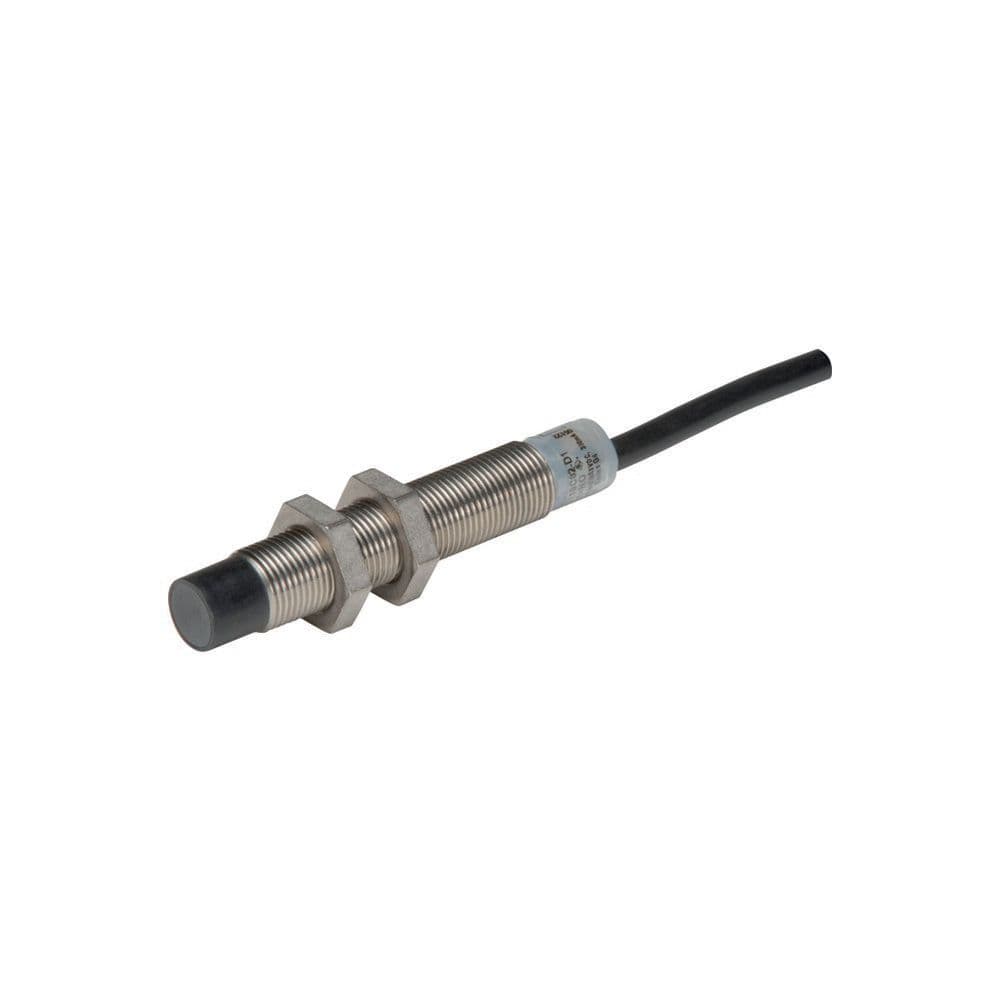

Eaton E59 AccuProx analog inductive proximity sensor

Name: Eaton E59 AccuProx analog inductive proximity sensor
Brand: Eaton
SKU: 136210

رقم القطعة: 136210

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton E59 AccuProx analog inductive proximity sensor

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-40 °C
Functions	Protection against wire breakage Short-circuit protection Protection against polarity reversal
Number of contacts (normally closed contacts)	1
Product Name	Eaton E59 AccuProx analog inductive proximity sensor
Catalog Number	136210
Model Code	E59-M12C110C02-D2
EAN	4015081330034
Product Length/Depth	152.4 mm
Product Height	44.45 mm
Product Width	127 mm
Product Weight	0.45 kg
Certifications	IEC/EN 60947-5-2 CE UL 508 CSA-C22.2 No. 14 UL File No.: E166051 UL UL Category Control No.: NRKH, NRKH7 Certified by UL for use in Canada CSA File No.: UL report applies to both US and Canada
Source URL	https://www.eaton.com/gb/en-gb/skuPage.136210.html
Type	Inductive sensor
Degree of protection	IP69 IP67 NEMA 4X, 6, 13
Enclosure material	Metal
Mounting method	Non-flush mounting
Material	Stainless steel
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Cable
Product category	iProx Series
Connection type	3-wire 2 m connection cable
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Operating voltage: Green LED Status indication of Switching state: Red LED
Switch function type	Breaker contact
Load current	1 - 300 mA (Ie)
Rated control supply voltage (Us) at DC - max	48 V
Rated control supply voltage (Us) at DC - min	6 V
Sensor length	62 mm
Voltage rating - max	48 V
Switching frequency	300 Hz
Switching output type	PNP
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Diameter sensor	12 mm
Supply voltage - max	48 V
Supply voltage - min	6 V
Installation type	Not flat
Operational current (Ib) in the switched state at 24 V DC	15 A
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	3 %
Switching hysteresis of Sn	15 %
Voltage drop (Ud)	2.5 V
Residual current	0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	10 mm
