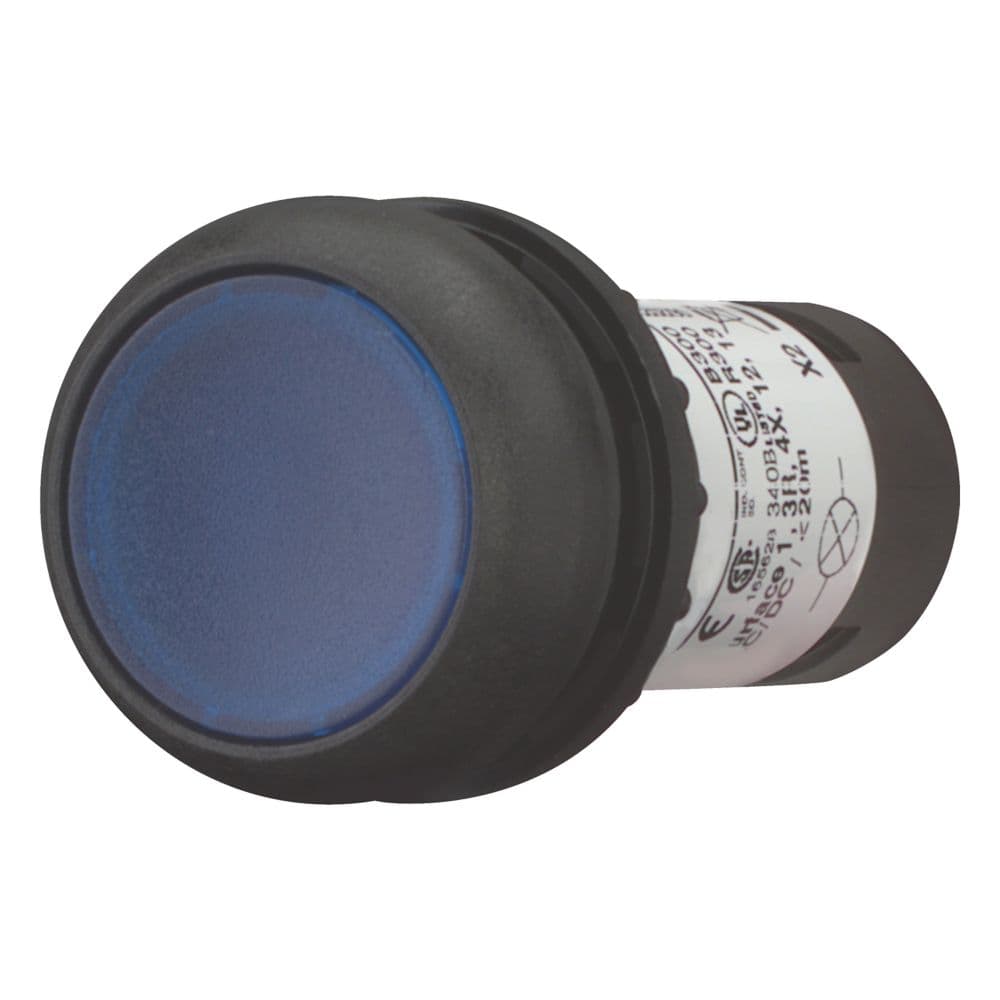

Eaton Moeller® series C22 Illuminated pushbutton actuator

Eaton

Eaton Moeller® series C22 Illuminated pushbutton actuator

رقم القطعة: 136678

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Illuminated pushbutton actuator

المواصفات

Product NameEaton Moeller® series C22 Illuminated pushbutton actuator
Catalog Number136678
Model CodeC22S-DRL-B-K10-120
EAN4015081334988
Product Length/Depth55 mm
Product Height30 mm
Product Width30 mm
Product Weight0.02 kg
CertificationsCE marking UL Category Control No.: NKCR CSA-C22.2 No. 14-05 and 94-M91 UL Listed UL File No.: E29184 CSA Class No.: 321103 CSA certified UL 508 IEC/EN 60947-5-1 CSA File No.: 165628 VDE 0660
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.136678.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionSwitching function latching Maintained
Actuator colorBlue
Actuating force5 N
Actuator diameter29.7 mm
