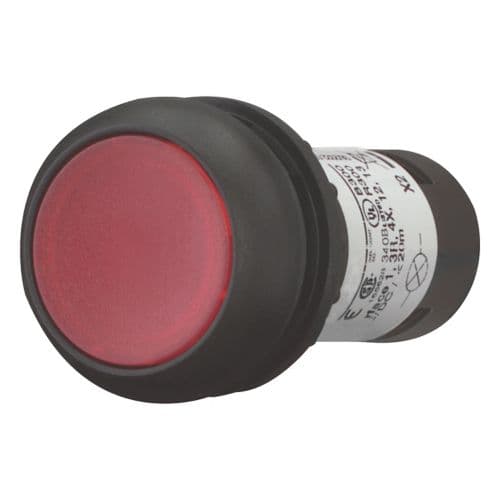

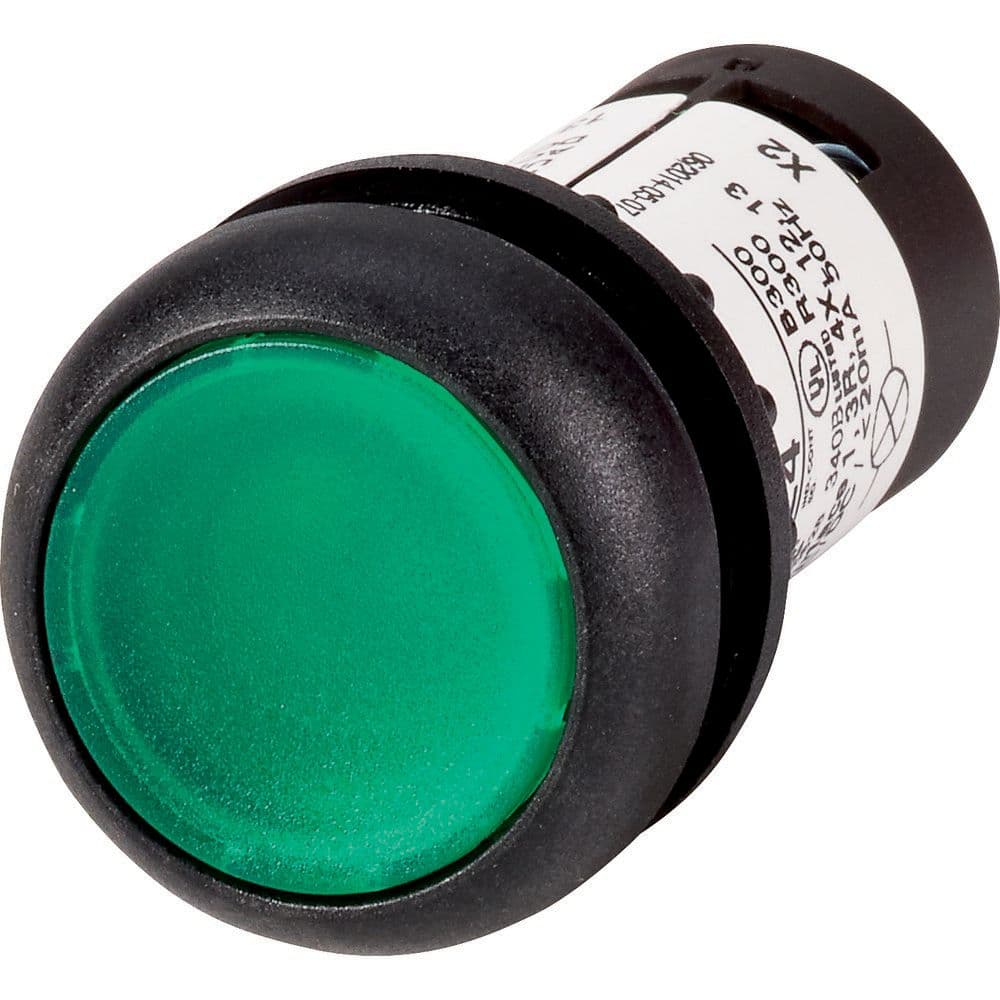

Eaton Moeller® series C22 Illuminated pushbutton actuator

Eaton

Eaton Moeller® series C22 Illuminated pushbutton actuator

رقم القطعة: 136681

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Illuminated pushbutton actuator

المواصفات

Product NameEaton Moeller® series C22 Illuminated pushbutton actuator
Catalog Number136681
Model CodeC22S-DRL-G-K10-120
EAN4015081335015
Product Length/Depth55 mm
Product Height30 mm
Product Width30 mm
Product Weight0.02 kg
CertificationsUL Category Control No.: NKCR UL Listed CSA certified VDE 0660 CE marking CSA Class No.: 321103 IEC/EN 60947-5-1 UL File No.: E29184 UL 508 CSA-C22.2 No. 14-05 and 94-M91 CSA File No.: 165628
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.136681.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionMaintained Switching function latching
Actuator colorGreen
Actuating force5 N
Actuator diameter29.7 mm
