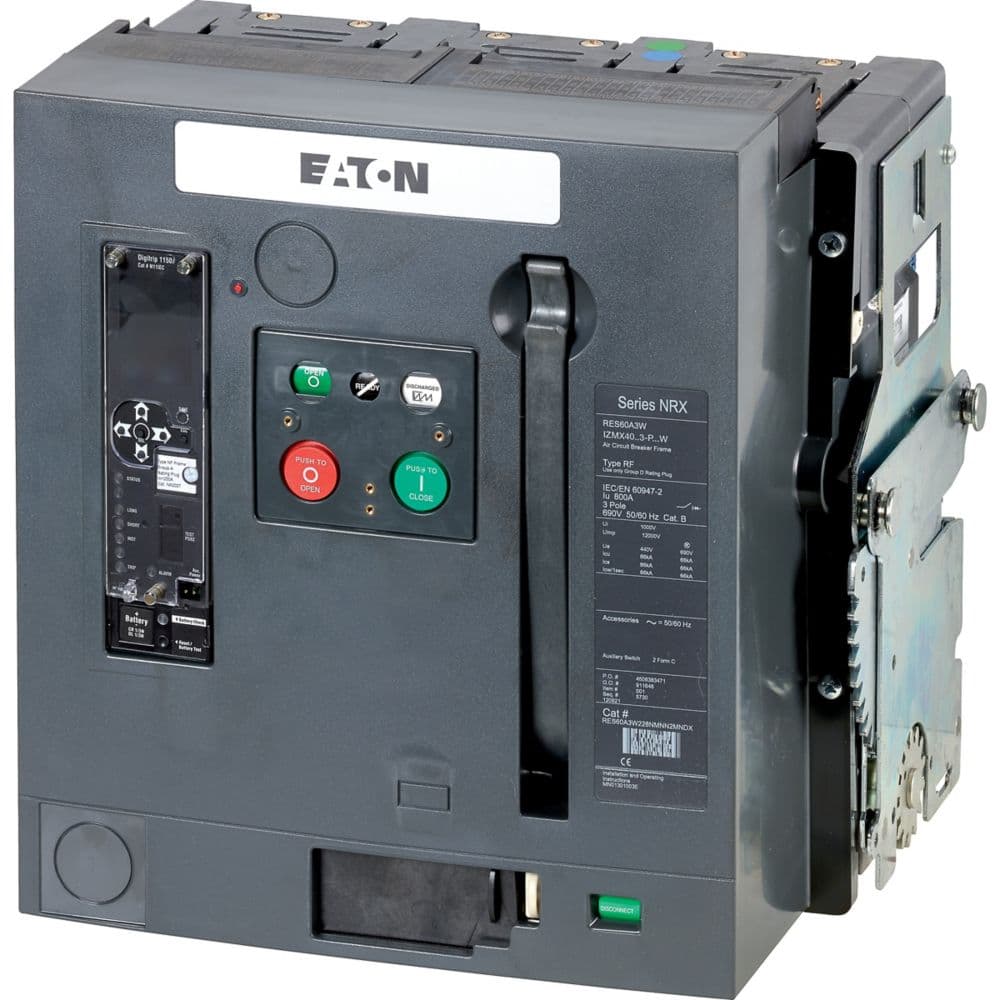

Eaton Moeller series IZMX/INX circuit-breaker

Eaton

Eaton Moeller series IZMX/INX circuit-breaker

رقم القطعة: 149851

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series IZMX/INX circuit-breaker

المواصفات

Special featuresCassette must be separately ordered.\nIZMX-DTP-PTM external voltage measuring module required\nsuitable for zone selectivity\nsuitable for communication\nwith integrated system monitor\nwith integrated test possibility\nwith graphic LCD color display\noptionally fittable by user with comprehensive accessories\nThese are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Product NameEaton Moeller series IZMX/INX circuit-breaker
Catalog Number149851
Model CodeIZMX40H3-P32W
EAN4015081463039
Product Length/Depth584 mm
Product Height597 mm
Product Width521 mm
Product Weight69 kg
CompliancesIEC/EN 60947 IEC
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.149851.html
Suitable forMain conducting paths with 57.6 kA in IT electrical power networks up to U = 440 V
Used withAir circuit breakers/switch-disconnector Open circuit breaker
FeaturesMotor drive optional Complete device with protection unit
TypeAir circuit breakers/switch-disconnector\nOpen circuit breaker
Fitted with:Switched-off indicator
Number of polesThree-pole
Amperage Rating3200 A
FrameIZMX40
Release systemElectronic release
