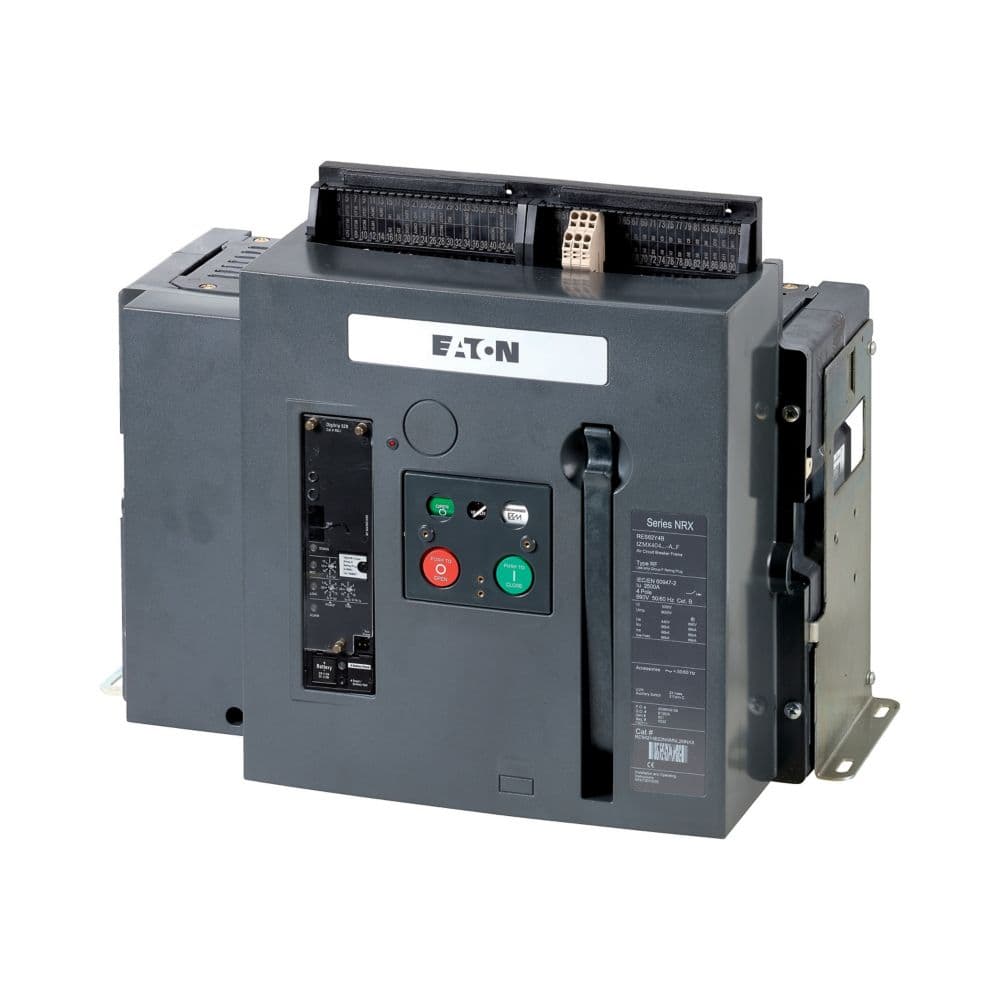

Eaton Moeller series IZMX/INX circuit-breaker

Name: Eaton Moeller series IZMX/INX circuit-breaker
Brand: Eaton
SKU: 149853

رقم القطعة: 149853

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series IZMX/INX circuit-breaker

Special features	Optionally fittable by user with comprehensive accessoriesTerminal capacity hint: These are values used in separate switchgear. The actual values will depend on the temperature around the circuit breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Product Name	Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number	149853
Model Code	IZMX40B4-A08F
EAN	4015081463015
Product Length/Depth	584 mm
Product Height	597 mm
Product Width	521 mm
Product Weight	56 kg
Compliances	IEC IEC/EN 60947
Source URL	https://www.eaton.com/gb/en-gb/skuPage.149853.html
Suitable for	Main conducting paths with 36 kA in IT electrical power networks up to U = 440 V
Features	Motor drive optional Complete device with protection unit
Type	Air circuit breakers/switch-disconnectorOpen circuit breaker
Fitted with:	Switched-off indicator
Number of poles	Four-pole
Amperage Rating	800 A
Frame	IZMX40
Release system	Electronic release
