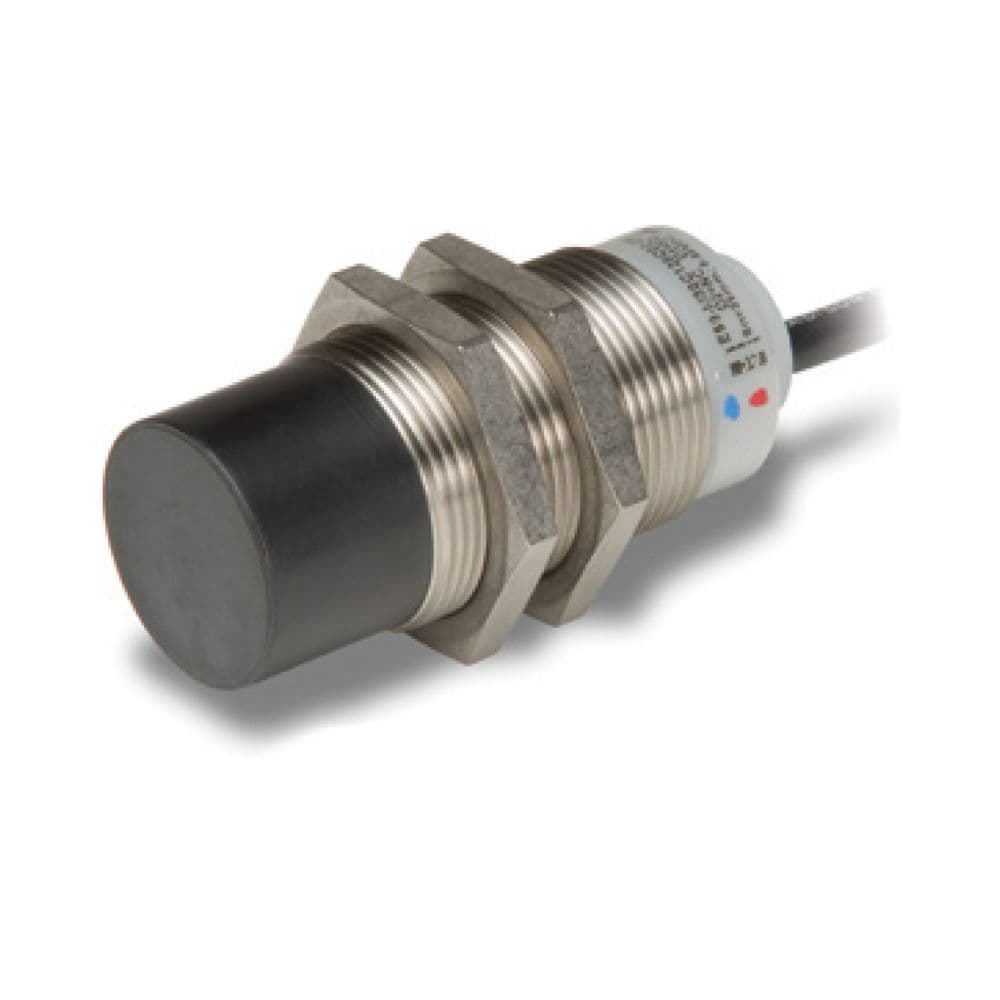

Eaton E59 AccuProx analog inductive proximity sensor
رقم القطعة: 166689
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton E59 AccuProx analog inductive proximity sensor
المواصفات
| Ambient operating temperature - max | 70 °C |
|---|---|
| Ambient operating temperature - min | -40 °C |
| Product Name | Eaton E59 AccuProx analog inductive proximity sensor |
| Catalog Number | 166689 |
| Model Code | E59-A30C125D01-CV |
| EAN | 4015081643479 |
| Product Length/Depth | 152.4 mm |
| Product Height | 44.45 mm |
| Product Width | 127 mm |
| Product Weight | 0.45 kg |
| Certifications | UL Category Control No.: NRKH, NRKH7 CE UL 508 UL CSA Class No.: 3211-03 UL File No.: E166051 IEC/EN 60947-5-2 CSA File No.: 50513 CSA-C22.2 No. 14 CSA |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.166689.html |
| Type | Inductive sensor |
| Degree of protection | IP67 NEMA 4X, 6, 13 |
| Enclosure material | Metal |
| Mounting method | Non-flush mounting |
| Material | Stainless steel |
| Shock resistance | 30 g, Mechanical, Shock duration 11 ms |
| Electric connection type | Other |
| Product category | E59 AccuProx Series |
| Connection type | Plug-in connection M12 x 1 3-wire/4-wire |
| Enclosure type | Cylinder, screw-thread |
| Voltage type | DC |
| Enclosure material finishing | Other |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Interface type | None |
| LED indicator | Status indication of Operating voltage: Green LED Status indication of Switching state: Red LED |
| Switch function type | Other |
| Rated control supply voltage (Us) at DC - max | 30 V |
| Rated control supply voltage (Us) at DC - min | 15 V |
| Sensor length | 74.1 mm |
| Voltage rating - max | 30 V |
| Switching frequency | 100 Hz |
| Switching output type | Analog |
| Number of contact energized outputs with signalling function | 0 |
| Number of outputs (protected contact energized) | 0 |
| Number of outputs (protected semiconductor) | 0 |
| Number of outputs (semiconductor with signaling function) | 0 |
| Output current at protected output - max | 20 mA |
| Diameter sensor | 30 mm |
| Supply voltage - max | 30 V |
| Supply voltage - min | 15 V |
| Installation type | Not flat |
| Output voltage | 0 - 10 V |
| Output current | 0 - 20 mA |
| Safety performance level (EN ISO 13849-1) | None |
| SIL (IEC 61508) | None |
| Actuation type | Metallic Target |
| Category (EN 954-1) | B |
| Repeatability | 1 % |
| Temperature drift of sn | 10 % |
| Rated switching distance (Sn) - max | 25 mm |
| Rated switching distance (Sn) - min | 1 mm |
