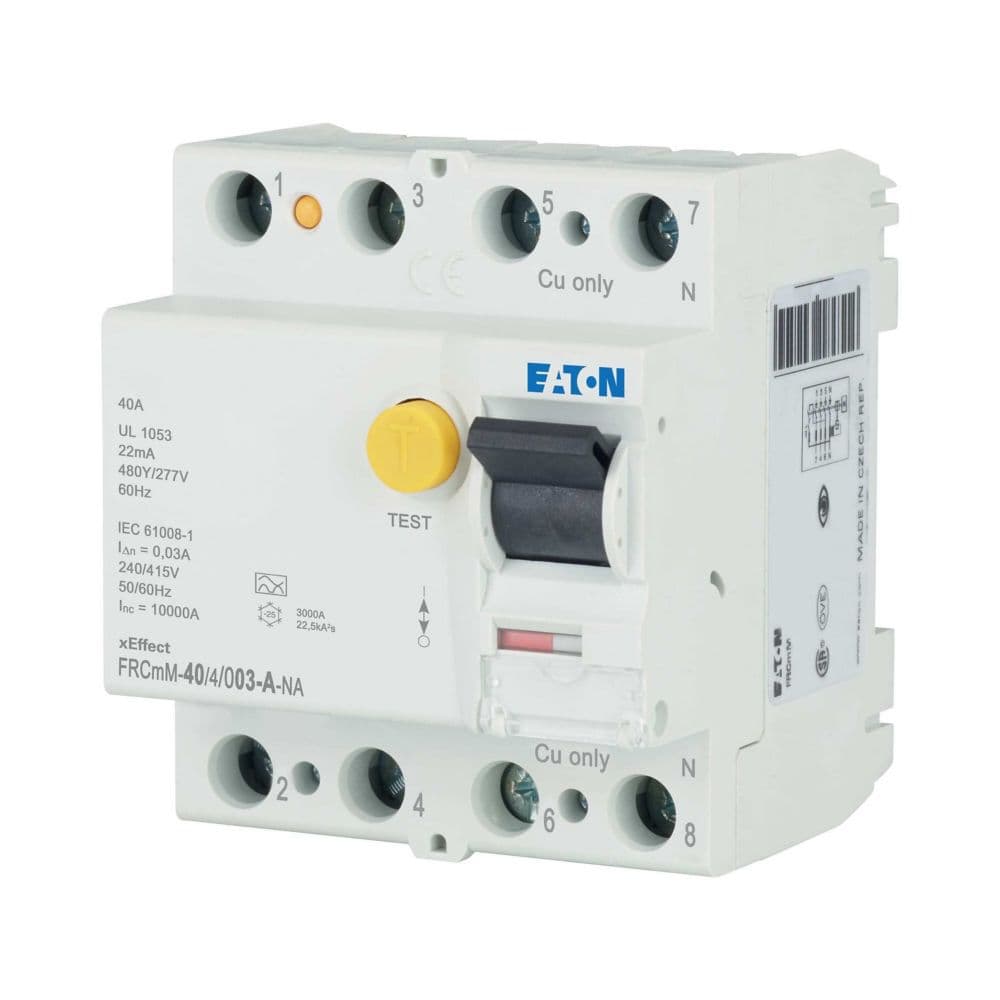

Eaton Moeller series xEffect - FRCmM-NA RCCB

Eaton

Eaton Moeller series xEffect - FRCmM-NA RCCB

رقم القطعة: 167102

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCmM-NA RCCB

المواصفات

Special featuresCurrent test marks as per inscriptionMaximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 2.5% for every 1 °CThe maximum operating current of back-up fuse must not exceed the residual current circuit breaker's rated operational current
Product NameEaton Moeller series xEffect - FRCmM-NA RCCB
Catalog Number167102
Model CodeFRCMM-40/4/003-A-NA
EAN4015081636020
Product Length/Depth76 mm
Product Height80 mm
Product Width70 mm
Product Weight0.32 kg
CompliancesRoHS conform
CertificationsUL 1053 IEC/EN 61008 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.167102.html
Catalog NotesProtects against special forms of residual pulsating DC which have not been smoothed.
Used withFRCmM-NA Type A Residual current circuit breakers
FeaturesResidual current circuit breaker Additional equipment possible
Fitted with:Interlocking device
