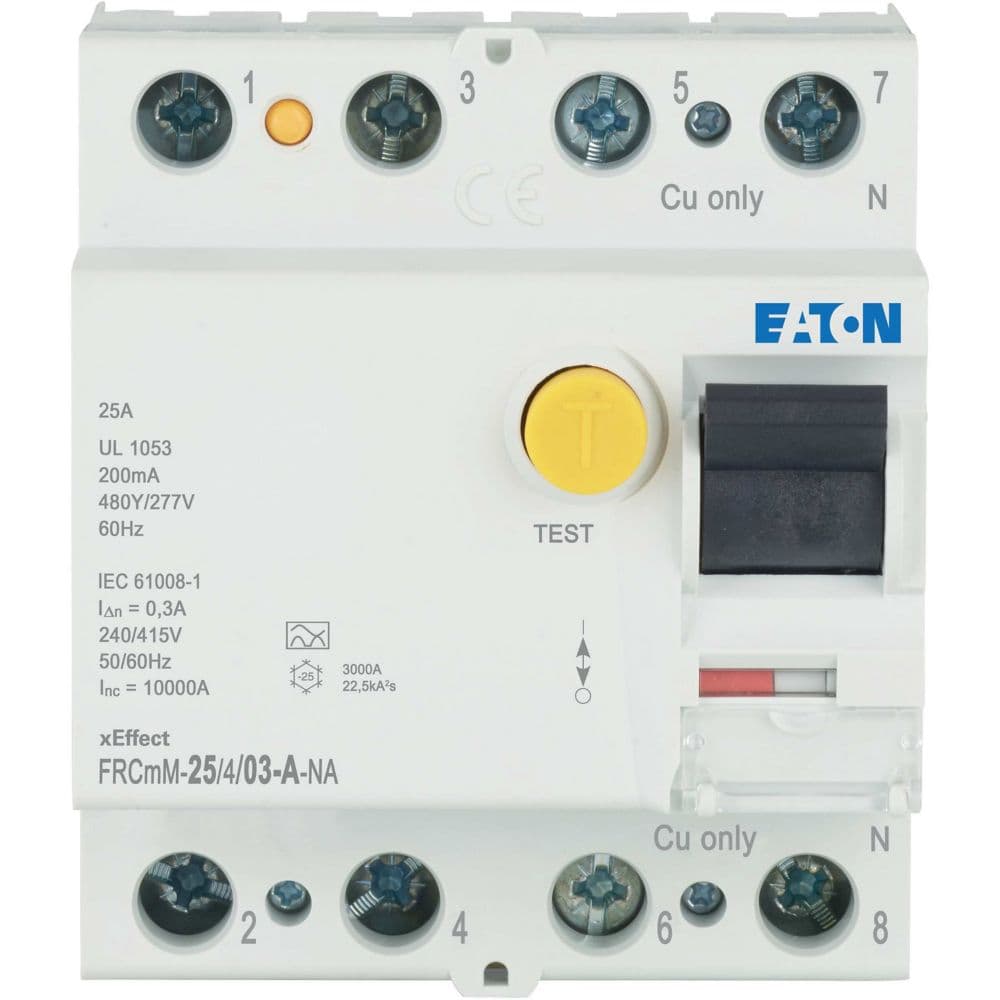

Eaton Moeller series xEffect - FRCmM-NA RCCB

Eaton

Eaton Moeller series xEffect - FRCmM-NA RCCB

رقم القطعة: 167104

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCmM-NA RCCB

المواصفات

Special featuresCurrent test marks as per inscriptionMaximum operating temperature is 55 °C: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °CThe maximum operating current of back-up fuse must not exceed the residual current circuit breaker's rated operational current
Product NameEaton Moeller series xEffect - FRCmM-NA RCCB
Catalog Number167104
Model CodeFRCMM-25/4/03-A-NA
EAN4015081636044
Product Length/Depth76 mm
Product Height80 mm
Product Width35 mm
Product Weight0.32 kg
CompliancesRoHS conform
CertificationsUL 1053 IEC/EN 61008 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.167104.html
Catalog NotesProtects against special forms of residual pulsating DC which have not been smoothed.
Used withResidual current circuit breakers FRCmM-NA Type A
FeaturesAdditional equipment possible Residual current circuit breaker
Fitted with:Interlocking device
